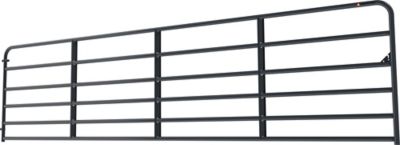

CountyLine 16 ft. Utility Gate, Blue, 6EB16

SKU: 360329799
CountyLine 16 ft. Utility Gate, Blue, 6EB16
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.6
4.6
 (517)

Quantity

TSC of live oak #1562
207 72nd trace northeast
live oak, FL 32064
(386) 362-1515
TSC of live oak #1562
207 72nd trace northeast
live oak, FL 32064
(386) 362-1515
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 4 days.
This product may require up to 4 additional days for order processing prior to shipping.
Note: This product cannot be shipped to AZ,CA,CO,HI,ID,MT,NV,NM,OR,UT,WA,WY

Item Information

Provides Easy Access and Greater Security

The CountyLine Utility Gate is designed to make it easy for you and your livestock to get in and out. This high-quality walk-through is extremely sturdy so you can safely pass through with large equipment. The gate also comes with a chain latch to ensure your animals do not escape.

Animal Friendly Design

This 16 ft. utility gate has squared corners without sharp edges and is made of extremely durable but smooth steel rods that keep your animals safely enclosed with minimal chance of injury.

Made with Mobility in Mind

The CountyLine Utility Gate is specifically designed for portability. with a universal quick-pin latch system this light-weight pc. assembles easily.

When it Comes to Your Animals, We Don't Compromise Quality

The CountyLine Utility Gate has 1 3/4 inch in diameter tubing to provide ultimate strength and protection. with continuous-welded saddle joints and a superior E-Coat finish, you can be sure that this panel will last for years.

  • 16 ft. (L) x 4 ft. (H) Utility Gate
  • 1-3/4 in. diameter steel tubing
  • Quick pin-latch system for easy hook-up

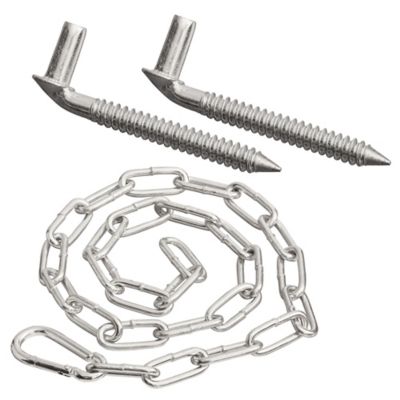

  • Mounting hardware & snap chains included

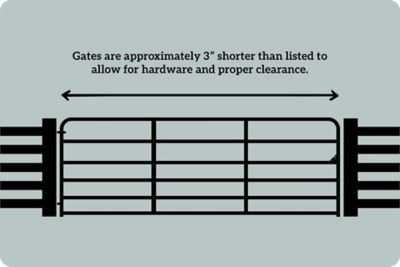

Note: All gates are 3 in. shorter than listed length to allow for gate hardware and proper clearance. Recommended for light confinement only

NOTE: Product dimensions, color, tube diameter, and gate style may vary by store. Contact your local Tractor Supply store for specific information about this product.

Specification Description
Animal Compatibility: Livestock
Hardware Included: Yes
Material: Steel
Brand: CountyLine
Number of Bars: 6
Product Height: 50 in.
CountryofOrigin: Made in USA
Included: Mounting Hardware & Snap Chains
Horse: Yes
Product Length: 16 ft.
Gauge: 19 ga.
Product Height: 5 ft.
Shop By: Bulk Discount
Length: 16 ft.
Height: 50 in.
Special Feature(s): Superior continuous-welded saddle joints and features our durable, corrosion-resistant E-Coat finish
Thickness: 1 3/4 in.
Finish: E-Coat
Product Weight: 69 lb.
Part Number: 6EB16
Warranty: 1-Year Limited
Gate Latch Type: Pin Latch
Number of Rails: 6
Type: 6-Bar Economy Tube Gate
Product Width: 16 ft.
Tube Diameter: 1 3/4 in.
Tube Diameter: 1-3/4 in.
Product Weight: 69 lb.
Manufacturer Part Number 6EB16
CountyLine 16 ft. Utility Gate, Blue, 6EB16 is rated 4.6 out of 5 by 517.
Rated 3 out of 5 by from Not a great gate. Had some areas that were slightly bent. Pre rust as well. Lots of areas where paint was scratched off. Poor coating. Not sure if scratches and bends came from factory or just poor handling in transit and storage by TSC.
Date published: 2020-03-23
Rated 4 out of 5 by from Great gate, little problem! Great gate and price! The hinges were a little tight for my gate supports. I had to widen the holes to go on the hooks to hang the gate!
Date published: 2020-03-16
Rated 4 out of 5 by from Blue is nice gray-blue Works perfectly, is more of a gray blue, had a few dings but nothing that detracts from appearance.
Date published: 2020-03-05
Rated 1 out of 5 by from Not worth the money I would not recommend this gate for anyones use, not worth the money.
Date published: 2020-03-01
  • y_2020, m_4, d_1, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.5
  • cp_1, bvpage1
  • co_hasreviews, tv_204, tr_313
  • loc_en_US, sid_360329799, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 1ms
  • REVIEWS, PRODUCT

Is the gate available galvanized?

Asked by: VicFararri
Yes, under sku 3603069.
Answered by: Valery
Date published: 2018-08-17

What else would be needed to install this gate? Post, size etc.?

Asked by: Bigcover4
You will need the following to make you gate installation quick and easy: Tape measure Adjustable wrench with open end Cordless drill (if available) 9/16” drill bit for 1-3/4” gate or 3/4” drill bit for 2” gate Nail or wire gate staple Extra hinge pin or piece of wood (2 x 4 or 2 x6 approx. 10-12” long) Small hand level
Answered by: DanielB
Date published: 2017-07-08

What color is the paint on this gate? I would be buying it in Billings, MT.

Asked by: Hackmann13
Color varies depending on location. The best way to determine the color of the gate you would be purchasing would be to call your local store.
Answered by: Valery
Date published: 2017-09-03

Is the 1 3/4" measurement the outside diameter of the tubing?

Asked by: 1ABfarmer
Yes, that is correct.
Answered by: jessicasm
Date published: 2019-09-25

What size wood bit would I need to bore the holes in the post so I can mount the gate hardware?

Asked by: Stacy2340
The recommendation is to use a, 9/16” drill bit for 1-3/4” tube gate.
Answered by: ErlindaC
Date published: 2019-04-22

I'm looking at this gate for the entrance to my property. I'll use a chain and lock around my post for the free end, but what should I do for the hinge side? Can I lock the hinge posts? Should I just use chain there as well?

Asked by: ZombieHollow
Hinges can not be locked. You can hang by pointing the top pin down to add security to the gate.
Answered by: Tbeacher
Date published: 2019-05-26

What is the measurement of the openings between each pipe?

Asked by: kuupio
The measurements graduate from 9 ½” to 6 ½”.
Answered by: ErlindaC
Date published: 2019-03-21

What are "Snap Chains"? And can a 3rd hinge be added in the middle of the span to be fastened to the post? Thanks.

Asked by: VicFararri
It is a standard chain used for securing the open end of the gate. Yes, hinges can be added.
Answered by: Valery
Date published: 2017-07-26
