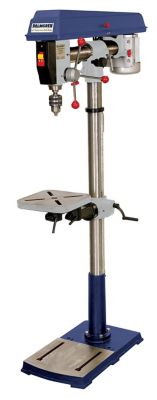

Palmgren Floor Radial Arm Drill Press

SKU # 118089999
Product price

Save Up To
See price at checkout Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options

Protect Your Purchase

We'll fix it, replace it, or reimburse you for it. Learn More

power plus

Item Information

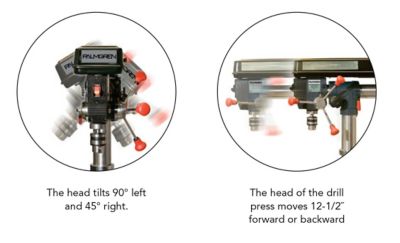

The Palmgren Floor Radial Arm Drill Press has an extended reach, tilting drill head that is ideal for large or odd-shaped work pieces. The table tilts 45° left or right allowing easy machining of holes at almost any angle.

  • Durable cast iron head, table & base
  • Spindle supported by high quality ball bearings
  • Rack and pinion table raiser
  • Table tilts 45° right & left and swivels 360° around the column
  • 1/2 in. through table & base slots for easy mounting and clamping of work piece
  • Front mounted safety, paddle on/off switch
  • Drill chuck & key
  • 3 year limited warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Brand: Palmgren
Laser Guide: No
Minimum RPM: 575 RPM
Motor Type: Electric
Maximum Drill Chuck Size: 16 mm
Maximum RPM: 3,520 RPM
Minimum Drill Chuck Size: 1 mm
Number of Speeds: 5
Product Length: 33 in.
Product Height: 37 in.
Product Weight: 150 lb.
Product Width: 14 in.
Spindle Travel: 3-5/16 in.
Stand Type: Floor
Swing: 33 in.
Table Material: Cast Iron
Voltage: 115 V
Warranty: 3 Years
Product Type: Drill Presses
Power Type: Electric
Manufacturer Part Number 9680342

The overall height says 37". Is this a floor model or a bench model????

Asked by: Dirty Dan
The height is 65". It is a floor model.
Answered by: NRoberts
