Palmgren 9-33 in. Swing 5-Speed Bench Radial Arm Drill Press
Item # 118089899
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

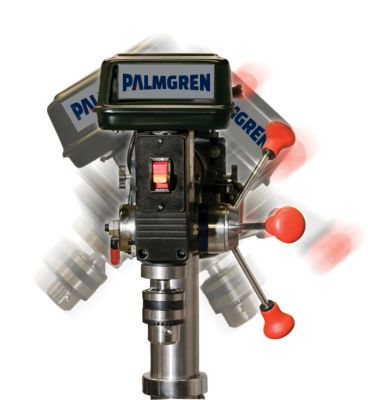

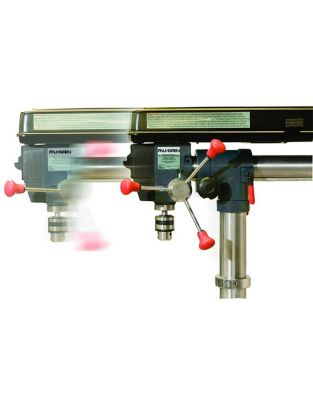

Get your hands on a proper drill press for the next big assignment. This Palmgren Bench Radial Arm Drill Press has an extended reach tilting drill head that is ideal for large work pieces. The press is engineered specifically for machining large, wide, or oddly shaped pieces. It features a 9-inch to 33-inch swing with a drill head that telescopes 12-1/2 inches forward and backward. The head tilts 90° left and 45° right to accommodate complex angle drilling. The press has a 5/8-inch drilling capacity in cast iron with a 3-5/32-inch spindle travel. Complete with a drill chuck and key, paddle on/off switch and cast-iron head, this drill press is a breeze to use. Add this drill press to your gear today.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Drill press has durable cast iron head, table and base
- Spindle supported by high quality ball bearings
- Drill press offers rack and pinion table raiser
- Table tilts 45 degrees right/left and swivels 360 degrees around the column
- 1/2 in. through table and base slots on drill press offer easy-mounting and clamping of work piece
- Features front-mounted safety, paddle on/off switch
- Chuck and key included with drill press
- 3 year limited warranty
| Brand | Palmgren |
|---|---|
| Country of Origin | Imported |
| Amperage | 5.5 Amp |
| Chuck Type | Keyed |
| Cord Length | 6 ft. |
| Drilling Capacity | 58 in. |
| Drills Through | Multi-Purpose |
| Features | 360 Swivel |
| Horsepower | 2 hp |
| Maximum Chuck Size | 16mm |
| Maximum Speed | 3,520 RPM |
| Minimum Speed | 600 rpm |
| Mounting Location | Bench Top |
| Number of Speeds | 5 |
| Product Height | 37 in. |
| Product Length | 33 in. |
| Product Weight | 100 lb. |
| Product Width | 10 in. |
| Spindle Travel Distance | 15 in. |
| Swing | 9-33 in. |
| Table Material | Cast iron |
| Table Tilt | 45 deg. |
| Variable Speed | Single Speed |
| Voltage | 115V |
| Warranty | 3 Year Limited |
| Work Table Length | 9 in. |
| Work Table Width | 9 in. |
| Manufacturer Part Number | 9680341 |
Q: Does it have a built in light?
7 years ago- A: No, it does not.7 years agoHelpful?
Q: Where is this made?
8 years ago- A: This is made in China.8 years agoHelpful?
Q&As
Q: Does it have a built in light?
7 years ago- A: No, it does not.7 years agoHelpful?
Q: Where is this made?
8 years ago- A: This is made in China.8 years agoHelpful?
