Bosch 12V Max Cordless Barrel-Grip Jig Saw Bare Tool
Item # 163813199
Neighbor’s Club Members earn points with purchases.
Neighbor’s Club Members earn points with purchases.
The Bosch 12V Max Barrel-Grip Jig Saw Bare Tool provides fast cutting and long runtime, making it ideal for cutting out unique shapes in multiple materials. An outstanding tool for finish carpenters, cabinet makers or kitchen installers, this compact jig saw has a compact size - just 9.4 In. long and only 3.0 lb. (tool only, not including battery). It provides a three-stage orbital action to match cutting execution with application, powering up to 2,800 strokes per minute, and it has a counterbalanced low-vibration plunge mechanism. It has a 45° bevel angle range. This light jig saw can cut through wood and aluminum; it delivers a 2.5 In. maximum capacity in wood. It has single-handed blade change with a tool-free T-Shank blade design (does not accept U-shank blades). It also has an integrated LED light.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.

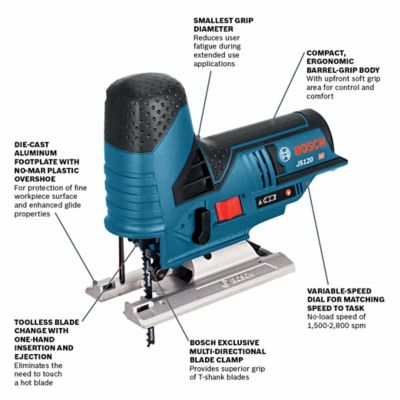

- Compact, ergonomic barrel-grip jig saw's body features upfront soft grip area for control and comfort
- Adjustable footplate shifts for bevel cuts up to 45
- Variable-speed dial allows matching speed to task, with no-load speed of 1,500-2,800 spm
- Small grip diameter reduces user fatigue during extended use applications
- Single-handed blade change with a tool-free T-shank blade design (does not accept U-shank blades)
- Integrated LED light so you always see what you're cutting
- An outstanding tool for finish carpenters, cabinet makers or kitchen installers
- Compact jig saw has a compact size - just 9.4 in long and only 3.0 lb (tool only, not including battery)
- Provides a three-stage orbital action to match cutting execution with application, powering up to 2,800 strokes per minute, and it has a counterbalanced low-vibration plunge mechanism
- Can cut through wood and aluminum; it delivers a 2.5 in maximum capacity in wood
- Dimensions of the jig saw tool: 6.75 in high by 9.4 in long by 3 in wide
| Brand | Bosch |
|---|---|
| Country of Origin | Imported |
| Amperage | 12V |
| Bevel Capacity | 0 N/A |
| Blade Change Type | Keyless |
| Corded or Cordless | Cordless |
| Cord Length | 0 Cordless |
| Cut Through | Aluminum, Wood |
| Features | Barrel-grip design with easy-to-use soft grip and compact body |
| Length Of Stroke | 0.75 in. |
| Maximum Angle | 45 deg. |
| Maximum Metal Cutting Capacity | 0.125 in. |
| Maximum Strokes Per Minute | 2,800 SPM |
| Maximum Wood Cutting Capacity | 2.5 in. |
| Minimum Angle | 45 deg. |
| Power Type | Manual |
| Primary Material | Other |
| Product Height | 6.75 in. |
| Product Length | 9.4 in. |
| Product Weight | 3 lb. |
| Product Width | 3 in. |
| Variable Speed | Variable Speed |
| Voltage | 12V |
| Warranty | 1 year |
| Manufacturer Part Number | JS120N |
