Grizzly G0449-37 in. 10 HP Drum Sander
Item # 229392699
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivering to
37027
Neighbor’s Club Members earn points with purchases.

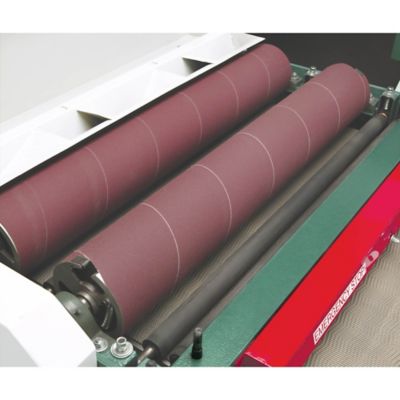

Built for production environments, the G0449 37" 10 HP Drum Sander features an industrial-quality conveyor belt and dual 6" sanding drums.The dual drum setup allows you to place different grits of sandpaper on each drum; cutting your sanding time in half.Sand stock up to 36-1/2" wide and 4" thick with variable-speed feed control and the economy of spiral-wrapped 6" wide sandpaper rolls.The sandpaper length needed is 6" wide by 138" long. For a full range of replacement rolls for the G0449, shop here.With the variable-speed conveyor, you can dial in the perfect finish for each job between 6-18 FPM.The table height handwheel is used to control cutting depth by raising or lowering the conveyor table.The amp load meter indicates the combined amperage draw of both motors, allowing you to monitor them and prevent damage to them.The depth scale indicates the thickness the workpiece will be after it has been sanded.Also features four 4" dust ports to maximize dust collection, easy access to sanding drums, emergency stop for safety, solid steel construction, independent motor control, and massive power.
Made in an ISO 9001 factory
CSA certified
SPECIFICATIONS: FEATURES:- Spring-loaded sanding belt tension/sandpaper
- Industrial-duty rubber conveyor belt
- Four 4" dust ports
- Variable-speed conveyor
- 6" steel/rubber-coated sanding drums
- Easy access control panel with load meter
- Hinged hood with gas struts for easy drum access
- State-of-the-art computer-balanced drums
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Sanding drum motor: 10 HP, 240V, single-phase, 47A
- Conveyor motor: 1/3 HP
- Maximum board width: 36-1/2"
- Maximum board thickness: 4"
- Minimum board length: 9"
- Minimum board thickness: 1/16"
- Surface speed of drums: 2800 FPM
- Conveyor feed rate: Variable, 8-20 FPM
- Sanding drums: 2, steel/rubber-coated
- Drum diameter: 6"
- Sandpaper size: 6" x 138"
- Overall Dimensions: 68" W x 50-1/2" D x 49" H
- Approx. shipping weight: 1406 lbs.
