Fimco 40 gal. 4 Nozzle 3 pt. Hitch Sprayer
Fimco 40 gal. 4 Nozzle 3 pt. Hitch Sprayer
Item # 1354295
Stocked & Ready
$699.99
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
$699.99
or
or
$59/mo.† suggested payments with 12 Months Financing or earn $34 in Rewards+ on this purchase.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Fimco 40 gal. 3-Point 4-Nozzle Hitch Sprayer is an agriculture sprayer that includes a chemical-resistant hose and provides up to 30 ft. of spraying diameter. With a hose that conveniently wraps around the 3-point hitch sprayer for easy storage, taking your equipment on-the-go- has never been easier. This hitch sprayer has a 4-nozzle spray pattern that delivers 120 in. of total coverage.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.
- 2.4 GPM to 60 PSI automatic demand diaphragm pump
- When combined with a high performance 2.4 GPM pump, output is enhanced and delivers spray pattern up to 40 ft. horizontal and 25 ft. vertical
- Includes a chemical-resistant hose that provides up to 30 ft. of spraying diameter
- Our premium air inducted spray tips reduce chemical drift
- 4-nozzle spray pattern delivers 120 in. of total coverage
- Use protection on both our 8 ft. lead wire and pump
- Includes high performance 12V hitch sprayer pumps
- Adjustable spray tip for convenient use
- Hose measures 15 ft. of 3/8 in.
- Hose conveniently wraps around the sprayer for easy storage
- Holds up to 40 gal. for heavy-duty use
- Hitch sprayer is made in the U.S.A.
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 10 ft |
| Boom Nozzle Count | 4 |
| Boom Style | Folding Boom |
| Chemical Compatibility | Weed Killer, Repellents, Repellent, Pesticide, Herbicide, Fertilizer, Fungicide, Insecticide |
| Features | Chemical Resistant |
| Hose Diameter | 3/8 in. |
| Hose Length | 15 ft. |
| Maximum Flow Rate | 2.4 GPM |
| Maximum Operating Pressure | 60 PSI |
| Mounting Type | Pin |
| Power Type | 12 Volt |
| Product Height | 23 in. |
| Product Length | 39 in. |
| Product Weight | 87 lb. |
| Product Width | 23 in. |
| Pump Type | Diaphragm |
| Boom Width | 7.5 ft |
| Tank Capacity | 45 gal. |
| Spray Method | Spot Spraying, Boom Spraying (Precision) |
| Tank Material | Polyethylene |
| Warranty | 1 Year Sprayer; 2 Year Pump |
| Manufacturer Part Number | 5302941 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 92 Questions
Newest questions
Q: Hello, Can you use this sprayer to apply agritec nitromax?
28 days ago1 Answer
- A: Yes, this sprayer is capable of applying most water-based liquid fertilizers like Agritec Nitro-Maxx. However, to ensure the longevity of your pump, we strongly recommend checking the product label for any added surfactants or petroleum distillates. Our pumps are designed for water-based applications, and ingredients like these can potentially damage the internal seals. If the product contains these additives, we advise against using it in this sprayer. If you do proceed, please be sure to thoroughly flush the entire system—tank, lines, and nozzles—with neutralizer immediately after every use. Regular flushing is the best way to prevent residue buildup and keep your pump performing reliably.28 days agoHelpful?
Q: What cat size is the three point?
29 days ago1 Answer
- A: This sprayer is designed to fit a Category 1, 3-point hitch. Please note that when the 40-gallon tank is fully filled, the unit will weigh approximately 430 lbs. We always recommend checking your tractor's lift capacity and load rating to ensure it is rated for this weight before operation.29 days agoHelpful?
Q: is this a catagory 1 hitch
a month ago1 Answer
- AI-generated, Human-approvedA: Yes, this sprayer is a Category 1 attachment. It is compatible with standard Quick Hitches, though a Category 1 bushing kit may be required to ensure the hitch hooks seat securely on the lift pins.29 days agoHelpful?
Q: Can you tell me the total box or crate size? (Fimco 40 gal. 4 Nozzle 3 pt. Hitch Sprayer)(Item # 1354295). This is pick up information.
a month ago1 Answer
- A: Approx. Dimensions: Weight 83 Item Dim. Length 40 Item Dim. Width 24 Item Dim. Height 24a month agoHelpful?
Q: Can I spray remedy and diesel mix
2 months ago1 Answer
- A: Thank you for reaching out with your question. We do not recommend using a diesel and Remedy mix with this specific sprayer. The pump and seals on this unit are designed for water-based solutions. Diesel fuel is a petroleum distillate that can quickly degrade standard rubber seals and gaskets, leading to pump failure or leaks. Additionally, diesel can be difficult to flush completely from the tank and lines, which may contaminate future applications. For diesel-based mixtures, we recommend using a Fimco Pro Series sprayer, as the pumps is a professional grade pump designed to handle solutions like this.2 months agoHelpful?
Q: Will this work with a quick hitch on my Kubota L3902 tractor?
2 months ago1 Answer
- A: Hi Doug! The Fimco 40-Gallon 3-Point Sprayer is a Category 1 attachment. It is compatible with standard Quick Hitches, though you may need a Category 1 bushing kit to ensure the hitch hooks seat securely on the sprayer’s lift pins.2 months agoHelpful?
Q: Do they make a longer power cord or do I need a another battery
3 months ago1 Answer
- A: We do not have a longer lead wire, but we do offer a 5' extension wire #5273212, please contact our customer service team at 800-831-0027 and they'll be happy to assist you.3 months agoHelpful?
Q: Is this rated for surfactant application
3 months ago1 Answer
- A: Robert, no, this model is not rated for surfactant application. The pump is designed for water-based solutions only, and surfactants may cause pressure issues and premature check valve failure. If wishing to use a surfactant, we would recommend a sprayer with our PRO Series pump, as the PRO Series is fully compatible and designed to handle the increased viscosity and chemical load of surfactants, as well as harsher chemicals.3 months agoHelpful?
Q: Will this fit a 1025R tractor?
3 months ago1 Answer
- A: this sprayer is for a category 1.3 months agoHelpful?
Q: does it come assembled?
4 months ago1 Answer
- A: It's partially assembled. For the most part you'll be assembling the frame, then mounting the assembled tank onto the frame, attach the boom and a couple of small parts.4 months agoHelpful?
1 - 10 of 92 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 92 Questions
Newest questions
Q: Hello, Can you use this sprayer to apply agritec nitromax?
28 days ago1 Answer
- A: Yes, this sprayer is capable of applying most water-based liquid fertilizers like Agritec Nitro-Maxx. However, to ensure the longevity of your pump, we strongly recommend checking the product label for any added surfactants or petroleum distillates. Our pumps are designed for water-based applications, and ingredients like these can potentially damage the internal seals. If the product contains these additives, we advise against using it in this sprayer. If you do proceed, please be sure to thoroughly flush the entire system—tank, lines, and nozzles—with neutralizer immediately after every use. Regular flushing is the best way to prevent residue buildup and keep your pump performing reliably.28 days agoHelpful?
Q: What cat size is the three point?
29 days ago1 Answer
- A: This sprayer is designed to fit a Category 1, 3-point hitch. Please note that when the 40-gallon tank is fully filled, the unit will weigh approximately 430 lbs. We always recommend checking your tractor's lift capacity and load rating to ensure it is rated for this weight before operation.29 days agoHelpful?
Q: is this a catagory 1 hitch
a month ago1 Answer
- AI-generated, Human-approvedA: Yes, this sprayer is a Category 1 attachment. It is compatible with standard Quick Hitches, though a Category 1 bushing kit may be required to ensure the hitch hooks seat securely on the lift pins.29 days agoHelpful?
Q: Can you tell me the total box or crate size? (Fimco 40 gal. 4 Nozzle 3 pt. Hitch Sprayer)(Item # 1354295). This is pick up information.
a month ago1 Answer
- A: Approx. Dimensions: Weight 83 Item Dim. Length 40 Item Dim. Width 24 Item Dim. Height 24a month agoHelpful?
Q: Can I spray remedy and diesel mix
2 months ago1 Answer
- A: Thank you for reaching out with your question. We do not recommend using a diesel and Remedy mix with this specific sprayer. The pump and seals on this unit are designed for water-based solutions. Diesel fuel is a petroleum distillate that can quickly degrade standard rubber seals and gaskets, leading to pump failure or leaks. Additionally, diesel can be difficult to flush completely from the tank and lines, which may contaminate future applications. For diesel-based mixtures, we recommend using a Fimco Pro Series sprayer, as the pumps is a professional grade pump designed to handle solutions like this.2 months agoHelpful?
Q: Will this work with a quick hitch on my Kubota L3902 tractor?
2 months ago1 Answer
- A: Hi Doug! The Fimco 40-Gallon 3-Point Sprayer is a Category 1 attachment. It is compatible with standard Quick Hitches, though you may need a Category 1 bushing kit to ensure the hitch hooks seat securely on the sprayer’s lift pins.2 months agoHelpful?
Q: Do they make a longer power cord or do I need a another battery
3 months ago1 Answer
- A: We do not have a longer lead wire, but we do offer a 5' extension wire #5273212, please contact our customer service team at 800-831-0027 and they'll be happy to assist you.3 months agoHelpful?
Q: Is this rated for surfactant application
3 months ago1 Answer
- A: Robert, no, this model is not rated for surfactant application. The pump is designed for water-based solutions only, and surfactants may cause pressure issues and premature check valve failure. If wishing to use a surfactant, we would recommend a sprayer with our PRO Series pump, as the PRO Series is fully compatible and designed to handle the increased viscosity and chemical load of surfactants, as well as harsher chemicals.3 months agoHelpful?
Q: Will this fit a 1025R tractor?
3 months ago1 Answer
- A: this sprayer is for a category 1.3 months agoHelpful?
Q: does it come assembled?
4 months ago1 Answer
- A: It's partially assembled. For the most part you'll be assembling the frame, then mounting the assembled tank onto the frame, attach the boom and a couple of small parts.4 months agoHelpful?
1 - 10 of 92 Questions
Reviews
Most Helpful Favorable Review
5 out of 5 stars.
great sprayer
6 years ago
Perfectly good little sprayer! Now they tell you its not quick hitch compatible, but it does work, just put a big bolt for the top link to catch. The power cord is a little short, but i just put a battery on my floorboard, problem solved. Do NOT use the bolts on the bottom of the tank, you will crack the tank at the holes if you use it on rough terrain. I used some thick vinyl under the tank, then used the straps to hold it down. Did a really rough 5 acre field with it, zero problems. Dont hesitate to buy this little sprayer for your homestead!
14 people found this helpful
Show Reviews:
Most Helpful Critical Review
2 out of 5 stars.
Quality Control ???
6 years ago
I am shopping for a sprayer and seeing the reviews on this unit, which would fit my application perfect, I am very disappointed in the Manufacturer.
So much consistency in the quality of the sprayer. Has anyone in quality control looked into these issues to attempt and make it a great unit?
The bolts in the bottom of the tank creating leaks is so consistent that customers don’t even use them. It’s engineered to need them so correct the issue.
The wire harness has to be added to for it to reach the power supply. Was it setup for a lawn mower with a 3 point hitch when engineered?
Why not address the common issues to make this unit better? It’s affordable; but who wants to waste their money on cheap quality?
JMHO,
Concerned TSC customer
15 people found this helpful
Show Reviews:
Customer Images and Videos
- spraying
- purchase
- price
- setup
- quality
- satisfaction
- small
- batteries
1 to 4 of 780 Reviews .
1 – 4 of 780 Reviews
Most Recent
Anonymous
Georgia
Review 1
1 out of 5 stars.
FRUSTRATED IN GA
2 days ago

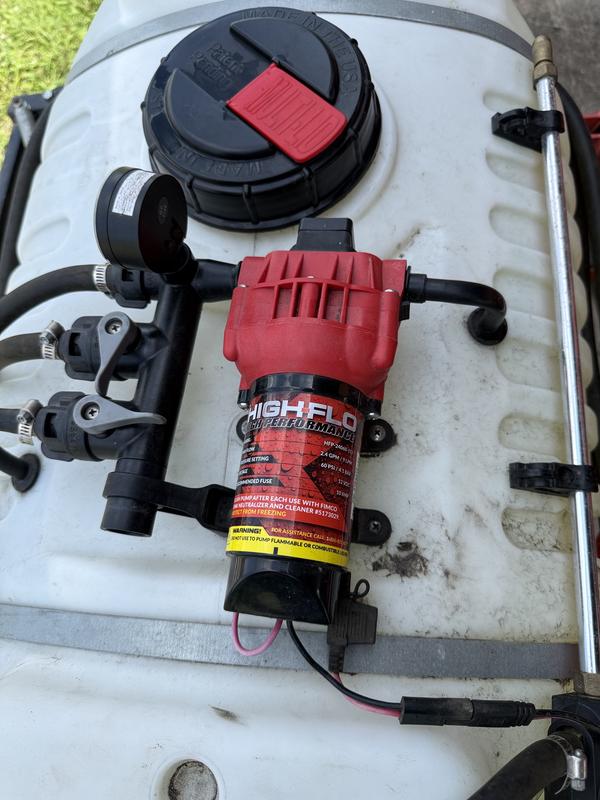

Took the sprayer out for the first time yesterday, filled it up with product to begin weed control on my property. The unit would not come on, I have a good battery and a remote control hooked up to tank, there is power to the remote because the light comes on when attached to battery, but no pressure to start the pump. I did fill with water at home and used the sprayer at home first, all went well. I went back home , checked all fuses and all good. I then got out the remote control and turned it on, everything started working properly. I do not understand why the tank would not work without the remote by just turning on and off with the switch that comes with harness. While working on this issue back home I also discovered a small leak coming from the bottom of the tank right where it’s attached by a screw to the frame. This is all very frustrating as this unit was not cheap and should not be giving this kinda issues when new.
SweepstakesYes
No, I do not recommend this product.
Response from Fimco Industries:
2 days ago
Fimco Industries
Thank you for sharing your feedback, and we are truly sorry for the frustration this has caused with your new 40 Gal. 3-Point Sprayer. We understand how disappointing it is to set up a project only to run into equipment troubles. Regarding the Power Issue:
When an aftermarket remote switch or secondary harness is added to the system, it often alters how power completes the circuit to the pump. If the remote bypasses the standard wiring harness, the standard inline switch will not function as expected unless the remote allows power to pass through. Regarding the Tank Leak: A leak near the frame mounting screw is definitely something we want to address immediately. Please verify if the screw was over-tightened into the molded tank insert. We want to make this right and get your sprayer operating reliably. Please reach out to our Customer Service team directly at 800-831-0027 so we can troubleshoot the wiring setup with you and get a replacement tank sent out under warranty.
When an aftermarket remote switch or secondary harness is added to the system, it often alters how power completes the circuit to the pump. If the remote bypasses the standard wiring harness, the standard inline switch will not function as expected unless the remote allows power to pass through. Regarding the Tank Leak: A leak near the frame mounting screw is definitely something we want to address immediately. Please verify if the screw was over-tightened into the molded tank insert. We want to make this right and get your sprayer operating reliably. Please reach out to our Customer Service team directly at 800-831-0027 so we can troubleshoot the wiring setup with you and get a replacement tank sent out under warranty.
FL
Review 1
1 out of 5 stars.
Faulty product
5 days ago

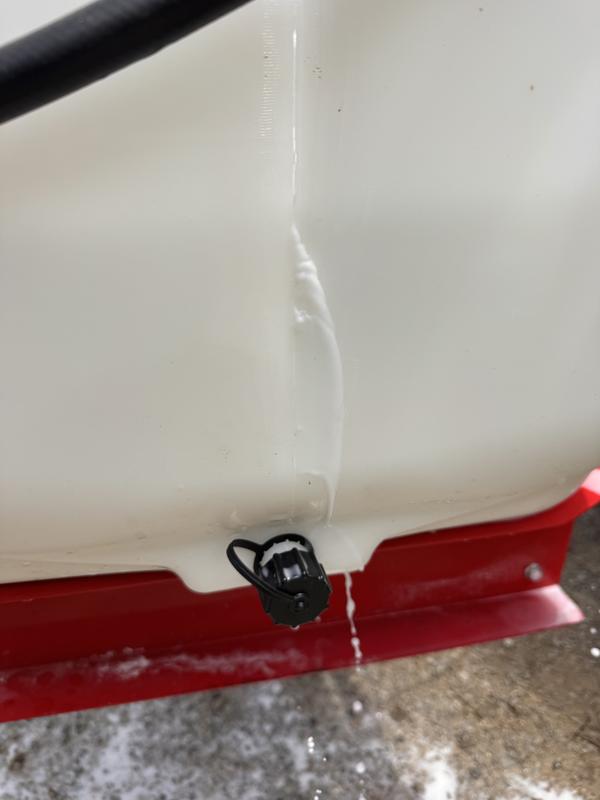

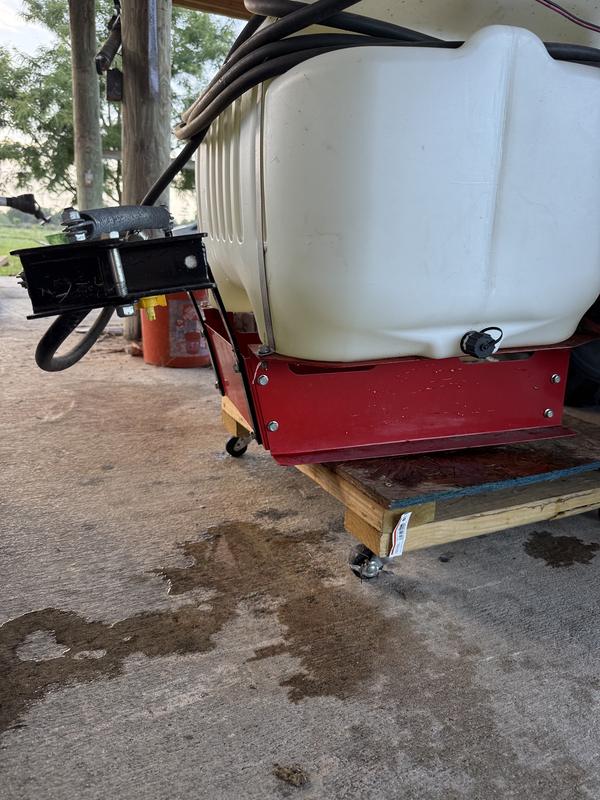

Tank sits on screws. After using for a week or two, cracks developed and started leaking. Not only that, battery stopped working. Faulty product, don't buy it.
No, I do not recommend this product.
Response from Fimco Industries:
a day ago
Fimco Industries
We are so sorry to hear about the trouble you're experiencing! A leaking tank is definitely not the quality experience we aim to provide. Tank cracks near the mounting points can sometimes occur if the bottom bolts are overtightened during setup or if the unit is subjected to extremely rough terrain. (Please note that our 3-point sprayers rely on your tractor or vehicle's 12V battery power, so you'll also want to check those battery connections and fuses). Please reach out to our Customer Service team at 800-831-0027, so we can get a replacement tank sent out to you directly. We're here to help!
Review 1
1 out of 5 stars.
The tank leaks
15 days ago

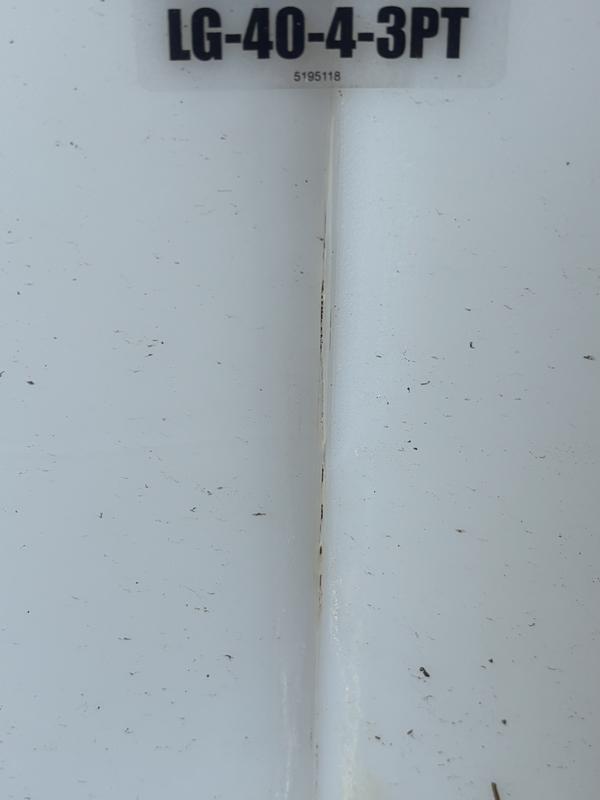

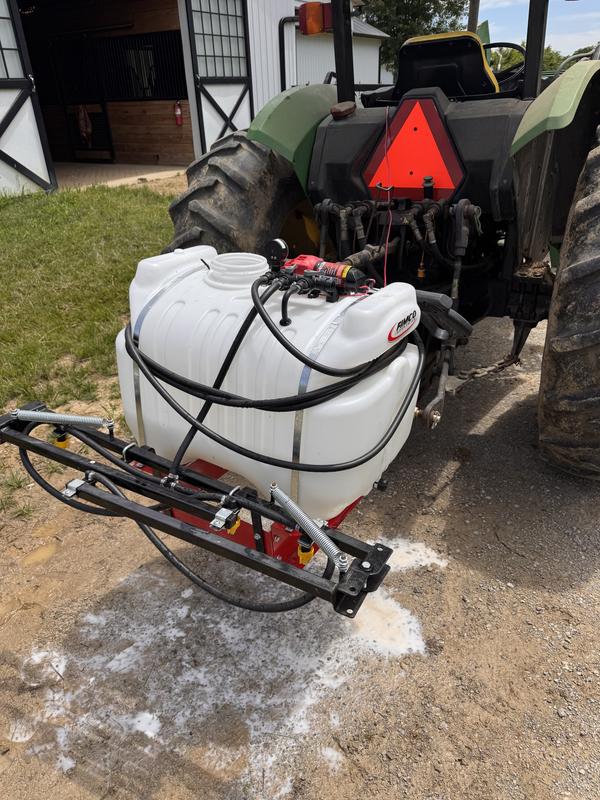

The sea on the tank has come apart. I just bought it in April, tractor supplies is only a 30 day warranty. The manufacturer needs to respond to this and help me out. Bought the tractor supply in Newton Kansas. Usually the service is fantastic but this time there was no service at all
Response from Fimco Industries:
12 days ago
Fimco Industries
I am very sorry to hear that you are experiencing a seam leak on your new 40-gallon sprayer. I understand how frustrating it is to have equipment fail so soon after purchase, especially when you have work to get done. Please know that we stand behind our products, and we want to get this resolved for you as quickly as possible. Our customer service team is ready to assist you with a warranty claim to get this tank taken care of. Please reach out to them directly so they can gather your purchase details and expedite a solution: Phone: 1-800-831-0027, Hours: Monday – Friday, 8:00 AM – 5:00 PM CST; or you can Email: info@fimcoindustries.com. Tip for reaching us: Please note that Mondays and Fridays are our busiest days of the week. Additionally, we typically experience our highest call volumes first thing in the morning and during the mid-day period (11:00 AM – 2:30 PM), as many customers call during their own lunch breaks. You may experience shorter hold times by calling outside of these peak periods. When you contact them, please have a copy of your receipt and, if possible, a photo of the leaking seam ready; this will help our team process your request immediately. We appreciate your patience and the opportunity to make this right.
Oregon
Review 1
4 out of 5 stars.
Good basic sprayer for hobby farm
18 days ago
Good sprayer for the money, performed well in my first 2 full days of spaying, no issues. Recommend checking out third party YouTube videos for some tips on setup and modifications.
Yes, I recommend this product.
Response from Fimco Industries:
16 days ago
Fimco Industries
Thank you so much for taking the time to share your experience with the 40-gallon 3-point hitch sprayer! We’re thrilled to hear that it’s been a reliable tool for your hobby farm and that you had a smooth start to your first few days of spraying. Should you ever have questions regarding maintenance, parts, you can check out our youtube videos as well. Happy spraying!
