Fimco 110 gal. 3 pt. Sprayer Complete with 6 Roller Pump Assembly, 22 in. Pro Spray Wand Broadcast Nozzle
Limited Time Deal
Fimco 110 gal. 3 pt. Sprayer Complete with 6 Roller Pump Assembly, 22 in. Pro Spray Wand Broadcast Nozzle
Item # 252873899
$2,159.99
Sale
Was$2,529.99
Save $370.00
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
Limited Time Deal
Fimco 110 gal. 3 pt. Sprayer Complete with 6 Roller Pump Assembly, 22 in. Pro Spray Wand Broadcast Nozzle
Item # 252873899
$2,159.99
Sale
Was$2,529.99
Save $370.00
or
or
$64/mo.† for 36 months totaling $2304 at 3.99% APR or earn $107 in Rewards+ on this purchase.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Get everything you need
Neighbor’s Club Members earn points with purchases.

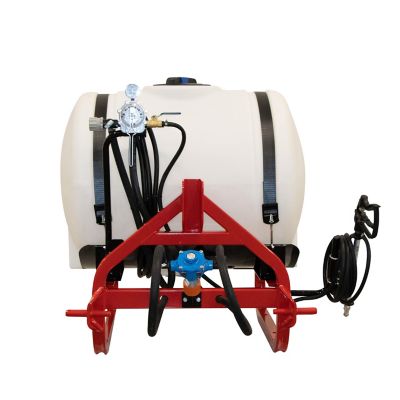

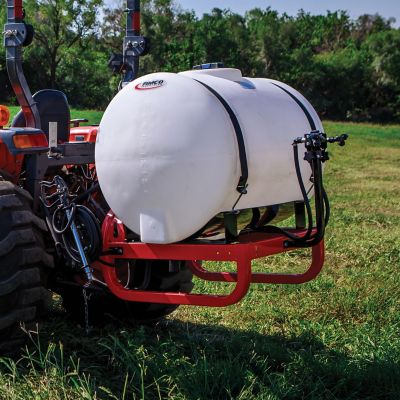

The FIMCO 110 Gallon 3 Point Broadcast Sprayer is designed to work with small to mid-size farm tractors. The molded polymer tank has an 8 inch lid for easy access and is completely drainable. This 3 point sprayer features a Hypro 6 Roller Cast Iron Pump. The included Pro Series 22" Spray Wand has an adjustable spray pattern tip and trigger to adjust from stream to fan spray pattern that distributes up to 45 feet horizontal spray, 30 feet of vertical spray and comes with 25 feet of 3/8 inch hose. Built on a welded, powder coated steel frame this 2 Nozzle Sprayer model distributes 34 feet of total spray coverage. Each nozzle sprays independently offering increased efficiency with precise liquid application.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.
- 2 nozzle broadcast tips delivers 34 feet of total spray coverage with Hypro tips that can be turned on and off independently
- Cast iron 6 roller pump provides up to 18.2 GPM with quick PTO coupler
- Category 1, 2 or 3 hitch compatible
- Durable 110 Gallon roto molded tank features UV stabilizers and sump for increased drainage
- Pro Series high pressure 22" spray wand features a locking handle, adjustable pressure nozzle, adjustable spray pattern and comes with 25 feet of hose
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 34 ft |
| Boom Nozzle Count | 2 |
| Boom Style | No Boom |
| Chemical Compatibility | Weed Killer, Repellents, Repellent, Pesticide, Most Liquids, Herbicide, Grass Killer, Fertilizer, Fungicide, Insecticide |
| Features | Spray Wand Included |
| Hose Diameter | 0.375 in. |
| Hose Length | 25 ft. |
| Maximum Flow Rate | 18.2 GPM |
| Maximum Operating Pressure | 300 PSI |
| Mounting Type | Pin |
| Power Type | 12 Volt |
| Product Height | 50 in. |
| Product Length | 51 in. |
| Product Weight | 285 lb. |
| Product Width | 46 in. |
| Pump Type | Roller |
| Boom Width | No Boom |
| Tank Capacity | 110 gal. |
| Spray Method | Spot Spraying, Boom Spraying (Broadcast) |
| Tank Material | Poly |
| Warranty | 1 yr Consumer / 90 day Commercial |
| Manufacturer Part Number | 5303764 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: Can this be modified to spray a 3to4 ft width for under trees in a orchard
2 months ago1 Answer
- AI-generated, Human-approvedA: Yes, you can reduce the spray swath by lowering the pressure and adjusting the nozzle mounts. By loosening the clamps to twist the nozzles and lowering the mount, you can achieve a smaller coverage area. It is recommended to test with water to reach your desired width.2 months agoHelpful?
Q: If i order this and dont like it when i see it do i have to purchase it ? Can i get a refund ?
a year ago1 Answer
- A: Tina, that would be a question for your local Tractor Supply.a year agoHelpful?
Q: Can the horizontal width be adjusted to down to 30ft? That would be the width of 12 rows of corn or two drill widths. I assume it can be.
a year ago1 Answer
- A: By reducing your pressure, loosening the clamp and to allow you to twist the nozzle upward a little, then retighten the clamp and lowing the nozzle mount downward a little, should allow you to reduce the swath. You would need to test with water until you get the desired swath you're looking for.a year agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: Can this be modified to spray a 3to4 ft width for under trees in a orchard
2 months ago1 Answer
- AI-generated, Human-approvedA: Yes, you can reduce the spray swath by lowering the pressure and adjusting the nozzle mounts. By loosening the clamps to twist the nozzles and lowering the mount, you can achieve a smaller coverage area. It is recommended to test with water to reach your desired width.2 months agoHelpful?
Q: If i order this and dont like it when i see it do i have to purchase it ? Can i get a refund ?
a year ago1 Answer
- A: Tina, that would be a question for your local Tractor Supply.a year agoHelpful?
Q: Can the horizontal width be adjusted to down to 30ft? That would be the width of 12 rows of corn or two drill widths. I assume it can be.
a year ago1 Answer
- A: By reducing your pressure, loosening the clamp and to allow you to twist the nozzle upward a little, then retighten the clamp and lowing the nozzle mount downward a little, should allow you to reduce the swath. You would need to test with water until you get the desired swath you're looking for.a year agoHelpful?
Similar Items
-
-
-
-
Top Rated
-
-
-
-
Top Rated
-
-
-
-
Items You May Like
-
-
-
-
Top Rated
-
-
-
Top Rated
-
-
-
-
-
Reviews
- instructions
- purchase
- setup
- weight
1 to 4 of 4 Reviews .
1 – 4 of 4 Reviews
Most Recent
Claremore, OK
Review 1
3 out of 5 stars.
Assembly comments
6 days ago
Unit came partially assembled. One component was supposed to be assembled and wasn't which required me to supply hardware for the assembly. The spray nozzle assembly needs to be performed by the engineer that designed it. The pieces that hold the pipe in place are recessed so that when tightening the head of the bolt gets pulled down into the recess and wont allow you to get a wrench on it. In addition, with the bolt pulled onto the recess you can not slide the assembly onto the vertical bar because of the interference with the bolts. Adding flat washers (not supplied) stops the bolt from being pulled into the recess and allows the unit to slide onto the vertical support.
Can not comment on the actual working as i haven't used the sprayer yet.
Response from Fimco Industries:
6 days ago
Fimco Industries
Thank you for taking the time to share this detailed feedback, and we sincerely apologize for the frustration. You are completely right—that sub-assembly step should have been completed before the unit ever shipped to you. Our engineering team took a close look at your review to understand what went wrong, and we wanted to share a quick detail about the design that explains why you ran into so many headaches with the hardware: The Original Design: The nozzle clamp is designed to use a specific thread-cutting screw that threads directly into the plastic. Because of this, no nut or pass-through bolt is supposed to be used. Why You Ran Into Issues: Because our team missed installing that screw during sub-assembly, you had to source your own hardware. The smaller-diameter bolt you used went all the way through, causing it to pull into the recess and interfere with the vertical support bar. How we want to make this right: If you contact our customer support team directly at 800-831-0027, we will gladly ship you the correct thread-cutting screws free of charge. This will allow you to mount the assembly easily and securely without needing to use extra washers or struggle with wrench clearances. In the meantime, our quality control team is actively auditing our current inventory to ensure this was a one-time assembly oversight and doesn't happen to anyone else. We hope you'll reach out so we can get those correct parts to you, and we’d love to hear how the sprayer performs for you once you get a chance to test it out!
Review 1
4 out of 5 stars.
.
2 months ago
Sprayer did a good job. The regulator needs some attention. Having trouble getting it to spray with both nozzles. I have to split the difference on the dial to get it to work
SweepstakesYes
Yes, I recommend this product.
Anonymous
Oklahoma
Review 1
5 out of 5 stars.
Spray unit 3 point.
6 months ago
Have not used it yet, but it looks really nice. It was fairly easy to assemble. Plan to use it in the spring.
SweepstakesYes
Yes, I recommend this product.
Texas
Review 1
4 out of 5 stars.
Food plot support
10 months ago
The FIMCO 110gallon sprayer was purchased given it was not too heavy for my Kubota L40HSTC Tractor, yet provided enough liquid storage to allow me to spray all of our food plots in two passes. The unit worked flawlessly.
Only two somewhat negative issues: (1) the users manual wasn’t very helpful on operational usage (mostly assembly & parts ordering). (2) thus related issues were trying to understand how to configure the unit for bypass and to drain it.
Response from Fimco Industries:
10 months ago
Fimco Industries
Thank you for your purchase of the 110-gallon 3PT sprayer from Tractor Supply. Glad that it worked flawlessly for you spraying your food plots. I will pass on your feedback regarding the operational usage and draining.
