Weekly AdWhat's NewTractor Supply AppEarn Rewards with Neighbor's ClubHometown HeroesLife Out Here BlogTSC Exclusive BrandsTop BrandsClearance ItemsBattery FinderOutdoor Power Equipment Parts FinderHitch FinderAgri-Fab 45 gal. Sprayer, 3 pt.
Item # 603068899
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Add this item to unlock free delivery!
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.
Neighbor’s Club Members earn points with purchases.

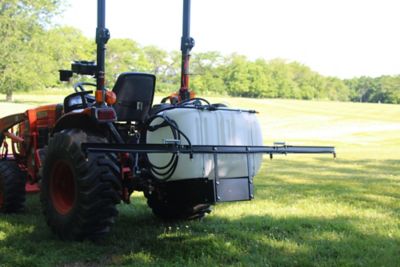

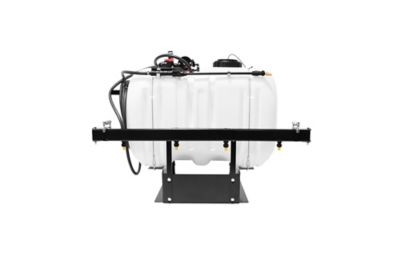

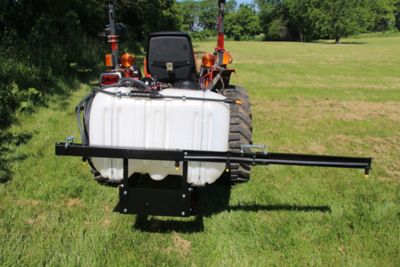

Tackle herbicide, pesticide, fungicide, and fertilizer applications with confidence using the Agri-Fab 45-0641 3-Point Sprayer. Designed for tractors equipped with a Category 1 three-point hitch, this heavy-duty sprayer combines durability, versatility, and reliable performance for property owners, farmers, and land managers. The sprayer features a 45-gallon poly tank and a 2.2 GPM diaphragm pump for consistent chemical delivery. Its 7.5-foot boom with four spray nozzles provides a 10-foot spray width for efficient coverage of large areas, while the included 15-foot spray hose delivers spot-spraying capability up to 30 feet away for hard-to-reach locations. Built to withstand demanding field conditions, the sprayer includes a break-away boom design that helps prevent damage when obstacles are encountered. The premium Agri-quality hose offers enhanced durability and flexibility while performing reliably in both hot and cold weather conditions. A comfortable hand grip with an optional trigger lock allows for continuous spraying during extended use. Constructed with a powder-coated steel frame for long-lasting strength and corrosion resistance. The Agri-Fab 45-Gallon Sprayer is built by Agri-Fab in Sullivan, Illinois, and backed by a 1-Year Limited Warranty.1 Yr Residential Limited Warranty
Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.
- 45 Gallon Poly Tank with Drain
- 2.2 GPM diaphragm-type pump w/port manifold, which allows for quick hose disconnection
- 7.5 ft boom w/4 spray nozzlesSpray width up to 10 ft
- Break away boom design to prevent damage in event of encountering obstacles while spraying
- Glycerin filled pressure gauge
- Agri quality hoses that provides: Greater durability, flexibility, and performs well in extreme weather conditions
- 15 ft of hose with spray wand achieving stream up to 30 ft
- Hand grip w/ optional trigger lock to allow continuous spray
- Two-wire fused wiring harness complete w/quick-disconnect for convenient electrical hookup
- CAT 1 3pt hitch design compatible
| Brand | Agri-Fab |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 10 ft |
| Boom Nozzle Count | 4 |
| Boom Style | Folding Boom |
| Chemical Compatibility | Herbicide, Pesticide, Insecticide, Fertilizer, Fungicide |
| Features | 45 Gallon Poly Tank, 7.5 ft boom w/4 spray nozzles,15 ft of hose with spray wand achieving stream up to 30 ft |
| Hose Diameter | 38 in. |
| Hose Length | 15 ft. |
| Maximum Flow Rate | 2.2 GPM |
| Maximum Operating Pressure | 60 ps |
| Mounting Type | Other |
| Power Type | 12 Volt |
| Product Height | 32 in. |
| Product Length | 41 in. |
| Product Weight | 70 lb. |
| Product Width | 26.25 in. |
| Pump Type | Diaphragm |
| Boom Width | 7.5 ft |
| Tank Capacity | 45 gal. |
| Spray Method | Boom Spraying (Broadcast), Spot Spraying |
| Tank Material | Polypropylene |
| Warranty | 1 Yr Residential Limited Warranty |
| Manufacturer Part Number | 45-0641 |
Q: How long is the cord to attach the electrical to the battery? My battery sits at the very front of my tractor, so it is as far from the sprayer as it could be!
6 months ago- A: The Agri-Fab 45-0641 uses a two-part fused wiring harness that connects the pump to your tractor's 12-volt battery via quick-disconnects. While the exact length isn't specified, it is designed to reach from a standard 3-point hitch to the operator area, with a separate lead for the battery terminals. If your tractor's battery is further away, you may need a wiring harness extension (Part #ST43485) to bridge the gap.6 months agoHelpful?
Q&As
Q: How long is the cord to attach the electrical to the battery? My battery sits at the very front of my tractor, so it is as far from the sprayer as it could be!
6 months ago- A: The Agri-Fab 45-0641 uses a two-part fused wiring harness that connects the pump to your tractor's 12-volt battery via quick-disconnects. While the exact length isn't specified, it is designed to reach from a standard 3-point hitch to the operator area, with a separate lead for the battery terminals. If your tractor's battery is further away, you may need a wiring harness extension (Part #ST43485) to bridge the gap.6 months agoHelpful?
