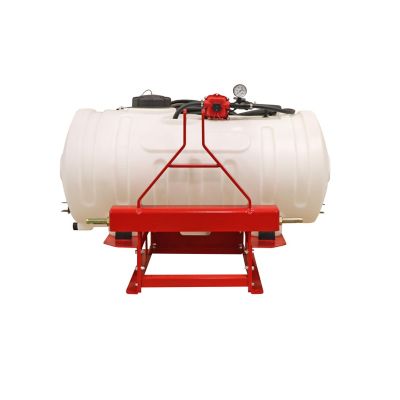

Fimco 65 Gal 3 Point Sprayer with 4.5 GPM Pump, Deluxe Spray Wand and 7 Nozzle Boom
Item # 600147399
Get everything you need
Neighbor’s Club Members earn points with purchases.
Item # 600147399
Valid 5/15/2026 - 7/5/2026Apply now
This item is available online only
Delivery to
37027
For delivery, this item requires a Big & Bulky handling fee.
Get everything you need
Neighbor’s Club Members earn points with purchases.

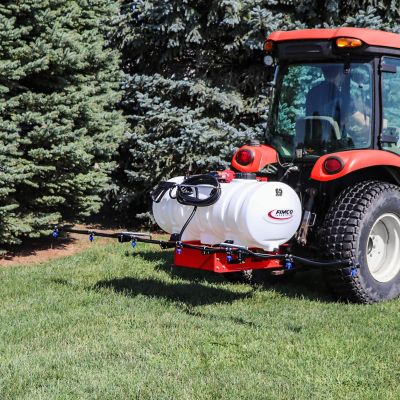

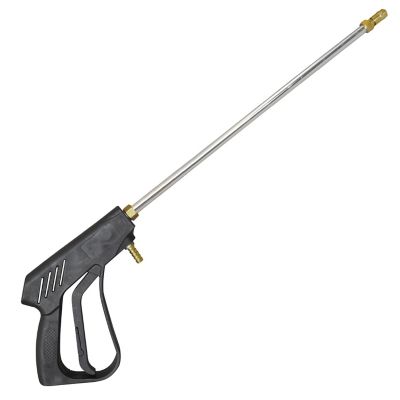

Tackle your spraying tasks efficiently and effectively with the FIMCO 65 Gallon 3 Point Sprayer with 4.5 GPM pump and 7-nozzle boom. This robust sprayer is designed for easy assembly and dependable performance on your Category 1 or 2 tractors. Featuring a durable 65-gallon corrosion-resistant poly tank, you can cover significant ground without frequent refills. Built with a reliable 12-volt diaphragm pump, to deliver consistent pressure for optimal spray coverage. The included 7-nozzle boom provides a wide 144-inch spray swath, making quick work of acreages, pastures, and food plots. Each nozzle is designed for uniform application, ensuring consistent results across the treated area. Included spray wand features an adjustable spray pattern brass tip which distributes up to 40 feet horizontal spray, 28 feet of vertical spray and comes with 25 feet of 3/8 inch hose.Built for convenience and longevity, the bolt-together design simplifies setup and maintenance. The adjustable boom height allows you to customize the spray pattern for various applications. Whether you're applying herbicides, pesticides, or fertilizers, this FIMCO sprayer offers the capacity and features you need for efficient and effective property maintenance.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.
- 25 Feet of hose gives you the length necessary to reach tight areas, around buildings and other obstacles

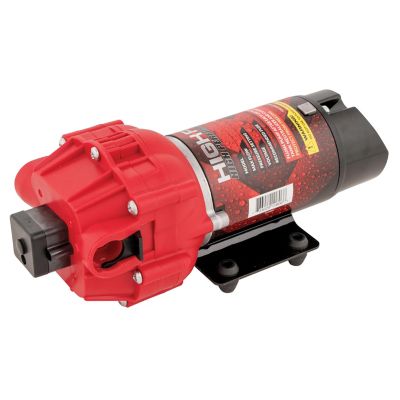

- 4.5 GPM High Flo High Performance pump features an internally fan cooled motor as well as chemically resistant valves and diaphragms which increase durability ensuring longer pump life
- Durable 65 Gallon blow molded tank features UV stabilizers and molded drain port and 5 inch lid for easy filling
- Folding 7 nozzle welded breakaway steel boom delivers 12 feet of total spray coverage, features Teejet tips and is spring loaded for easy deployment, use and storage
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 144 ft |
| Boom Nozzle Count | 7 |
| Boom Style | Folding Boom |
| Chemical Compatibility | Herbicide, Grass Killer, Pesticide, Most Liquids, Weed Killer, Repellents, Fertilizer, Insecticide, Repellent, Fungicide |
| Features | 7-nozzle boom, Deluxe Spray Wand, 4.5 GPM Pump, Chemical Resistant |
| Hose Diameter | 0.375 in. |
| Hose Length | 25 ft. |
| Maximum Flow Rate | 4.5 GPM |
| Maximum Operating Pressure | 60 PSI |
| Mounting Type | Pin |
| Power Type | 12 Volt |
| Product Height | 39 in. |
| Product Length | 47 in. |
| Product Weight | 137 lb. |
| Product Width | 33 in. |
| Pump Type | Diaphragm |
| Boom Width | 10 ft |
| Tank Capacity | 65 gal. |
| Spray Method | Boom Spraying (Precision), Spot Spraying |
| Tank Material | Poly |
| Warranty | 1 yr Consumer / 90 day Commercial |
| Manufacturer Part Number | 5303250 |
Q: how long is the power cord on the 65 gal 3 point sprayer?
22 days ago- AI-generatedA: The power cable for this sprayer is 96 inches long. Reviewers have noted that this length may be short for some tractor setups, particularly if the battery is located at the front of the vehicle.20 days agoHelpful?
Q: How many acres can you cover
a month ago- AI-generatedA: One reviewer noted that a full tank lasted for five 1-acre food plots. However, the exact acreage you can cover depends on your tractor speed and the desired application rate of your chemicals.a month agoHelpful?
Q: What is the outlet size 3/8 or 1/2 for the pump to the nozzles from the factory.
a month ago- AI-generatedA: The hose diameter for this sprayer is 3/8 inch.a month agoHelpful?
Q: What is the outlet for the pump to the nozzles
a month ago- A: Howdy neighbor! The outlet size for the 4.5 GPM pump on your Fimco 65 Gallon 3-Point Sprayer is a 1/2-inch NPT (National Pipe Thread) fitting. This connects to the manifold that distributes the liquid between your 7-nozzle boom and the deluxe spray wand.a month agoHelpful?
Q: How is the sprayer powered
2 months ago- AI-generatedA: This sprayer is powered by a 12-volt system. It features a 12-volt diaphragm pump and includes a wiring harness to connect to a power source, such as a tractor battery.a month agoHelpful?
Q: How do I buy just the boom for this sprayer
2 months ago- A: Hello, thank you for your question. Please reach out to Fimco directly for this replacement part. ***FIMCO*** https://www.fimcoindustries.com/contact/ 800-831-00272 months agoHelpful?
Q: What are the box dimensions?
4 months ago- A: Am guessing that you're referring to the tank dimensions, which are: Width: 47", Length (front to back): 34½" and height: 16¾".4 months agoHelpful?
Q: What is the nozzle size on the spray arm?
11 months ago- A: Walt, the nozzles on this boom are AIXR11002VP nozzles.11 months agoHelpful?
