Fimco 30 gal. 3 Nozzle 12 V Trailer Sprayer, 2.4 GPM
Limited Time Deal
Fimco 30 gal. 3 Nozzle 12 V Trailer Sprayer, 2.4 GPM
Item # 135044199
Stocked & Ready
$39999
Sale
Save(16%)
or
or
Add this item to unlock free delivery!
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Limited Time Deal
Fimco 30 gal. 3 Nozzle 12 V Trailer Sprayer, 2.4 GPM
Item # 135044199
Stocked & Ready
$39999
Sale
Save(16%)
or
or
$34/mo.† suggested payments with 12 Months Financing or earn $19 in Rewards+ on this purchase.
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
Pickup Nearby at FRANKLIN TN(6.7) miles Free
Ship to store at Grassland (franklin) TN
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Fimco 30 gal. 3-Nozzle Trailer Sprayer includes a chemical-resistant hose and provides up to 40 ft. of spraying diameter. The manifold on this Fimco 3-point sprayer comes complete with quick-connect fittings, built-in ball valves and a pressure gauge port that allows you to fine tune chemical applications. It also boasts a unique and innovative boom design and holds up to 30 gal. for less refilling. Durable rubber 16" diameter turf tires provide a smooth ride for easy pulling over any type of terrain. This tow-behind sprayer allows easy, accurate and consistent liquid application of lawn care products for a healthy lawn or well manicured turf. Made in the USA.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.

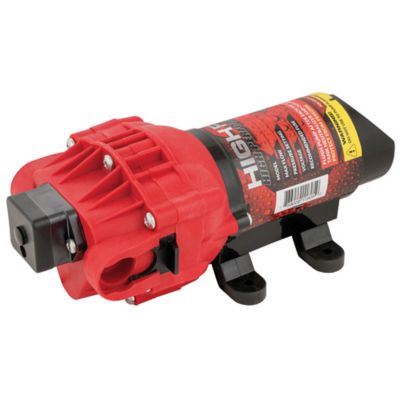

- Crafted with a 2.4 GPM/60 PSI automatic demand diaphragm pump
- Agriculture sprayer includes chemical-resistant hosing that provides up to 40 ft. of spraying diameter

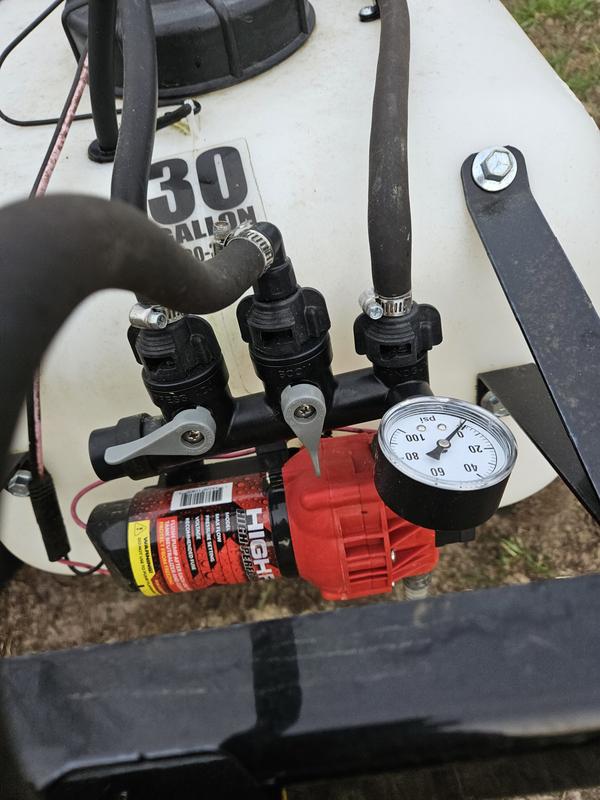

- Command center manifold has quick connect fittings, built-in ball valves and a pressure gauge port
- Premium air inducted spray tips reduce chemical drift
- 3-nozzle spray pattern delivers 100 in. of total coverage

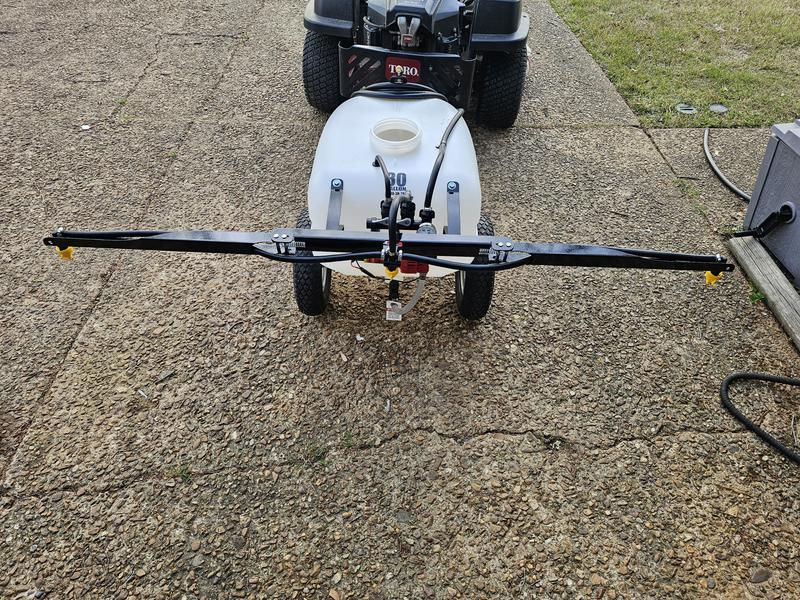

- Innovative boom design folds backward if striking obstacles and folds forward for compact trailer sprayer storage
- High-performance 12V pumps
- Hose measures 20 ft. x 3/8 in.
- Fimco exclusive handgun/hose brackets
- Tank holds up to 30 gal. for less sprayer refills
- Made in the USA
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 8 ft |
| Boom Nozzle Count | 3 |
| Boom Style | Folding Boom |
| Chemical Compatibility | Herbicide, Grass Killer, Pesticide, Weed Killer, Repellents, Fertilizer, Repellent, Insecticide, Fungicide |
| Features | None |
| Hose Diameter | 3/8 in. |
| Hose Length | 20 ft. |
| Maximum Flow Rate | 2.4 GPM |
| Maximum Operating Pressure | 60 PSI |
| Power Type | 12 Volt |
| Product Height | 19 in. |
| Product Length | 44 in. |
| Product Weight | 58 lb. |
| Product Width | 19 in. |
| Pump Type | Diaphragm |
| Boom Width | 3.5 ft |
| Tank Capacity | 30 gal. |
| Spray Method | Boom Spraying (Precision), Spot Spraying |
| Tank Material | Polyethylene |
| Warranty | 1 Year Sprayer; 2 Year Pump |
| Manufacturer Part Number | 5302950 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 83 Questions
Newest questions
Q: How long is the wiring that connects to battery in the front of an utv
2 days ago1 Answer
- A: The setup includes an 8-foot primary wiring harness (with battery clips and an on/off switch) plus a 5-foot extension cable that connects to the pump's 2-pin connector. This gives you a total length of 13 feet, which is typically plenty of reach to connect from the sprayer at the back to a battery located in the front of most standard UTVs.21 hours agoHelpful?
Q: Does it have a remote on / off switch?
11 days ago2 Answers
- A: Thank you for reaching out! No, this sprayer does not include a remote on/off switch out of the box, but an optional Wireless Remote Control Switch is available (Fimco Part #7771938 / Tractor Supply SKU #1014208). The optional remote plugs directly into the sprayer’s 12V wire harness, allowing you to easily turn the pump on and off from the seat of your tractor or ATV using a key fob.7 days agoHelpful?
Q: What size tire and rim fits this sprayer
19 days ago1 Answer
- A: The tire and rim for the Fimco 30-Gallon Trailer Sprayer are supplied together as a complete wheel assembly. The size is 4.80 / 4.00 - 8. If you need a replacement, the complete wheel assembly (tire and rim combined) is available under Fimco Part # 5021090-SVR. You can call our customer service team at 800-831-0027 or you can have your local Tractor Supply special order it for you.18 days agoHelpful?
Q: Tire size
a month ago1 Answer
- A: The tire size for this sprayer is 4.80 x 8 (2-ply).28 days agoHelpful?
Q: Where it get tire and wheel replacement
a month ago1 Answer
- A: For a replacement tire and wheel assembly for your 30-gallon trailer sprayer, you have two convenient options: Local Tractor Supply: You can visit your local Tractor Supply store and ask them to place a special order for the replacement tire and wheel. Part number can be found in your owner's manual. Or direct from FIMCO: You can also order directly through us. Please call our Customer Service team at 800-831-0027. Have your sprayer model number handy, and our team will be happy to ensure you get the exact replacement part you need.a month agoHelpful?
Q: Where can i find replacement tips for this sprayer
a month ago1 Answer
- A: Thank you for your question. Please contact Fimco customer support for replacement tips.a month agoHelpful?
Q: What is the span of coverage
2 months ago1 Answer
- A: The 3-nozzle boom on this sprayer provides a 90" total spray swath for efficient coverage while towing. Additionally, the included spray wand is capable of reaching up to 40 feet horizontally and 25 feet vertically for spot spraying hard-to-reach areas.2 months agoHelpful?
Q: Does the sprayer cone with the 12v wire connections
2 months ago2 Answers
- A: Yes, this sprayer includes a lead wire with alligator clips for easy connection to a 12-volt battery. The included wire harness is fuse-protected and features an integrated On/Off switch, allowing you to connect directly to your vehicle's battery or a separate 12-volt battery.2 months agoHelpful?
Q: The caps on top of pump leak product.
2 months ago1 Answer
- A: Thank you for reaching out. We're sorry to hear you are experiencing a leak, but if it is coming from the top of the pump manifold where the elbow connectors sit, this is usually a very quick fix. Those black elbow connectors are actually two-piece mechanisms that can sometimes vibrate loose during shipping or heavy use. You can easily snug them back up by following these steps: Remove the cap from the leaking connection on top of the manifold. Look directly inside the cap. You will see a hexagon-shaped cutout molded into the material. Insert a 3/8" Allen (hex) wrench directly into that cutout. Turn it clockwise to snug up the internal connection. This compresses the seal and should completely stop the product from leaking. Please give that a try, as it usually takes care of the issue right away. If you find that tightening it doesn't stop the leak, or if you notice a crack in the material itself, please let us know. We are more than happy to help get any necessary replacement parts sent out to you!2 months agoHelpful?
Q: At 5mph how many square feet will the sprayer cover
3 months ago2 Answers
- A: Here is the clearest way to break this down: At an application rate of 6.7 gallons per acre, a full 30-gallon tank will cover approximately 4.48 acres. Since 1 acre equals 43,560 square feet, the total coverage for a full tank is 195,149 square feet (or roughly 195,000 sq. ft.).3 months agoHelpful?
1 - 10 of 83 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 83 Questions
Newest questions
Q: How long is the wiring that connects to battery in the front of an utv
2 days ago1 Answer
- A: The setup includes an 8-foot primary wiring harness (with battery clips and an on/off switch) plus a 5-foot extension cable that connects to the pump's 2-pin connector. This gives you a total length of 13 feet, which is typically plenty of reach to connect from the sprayer at the back to a battery located in the front of most standard UTVs.21 hours agoHelpful?
Q: Does it have a remote on / off switch?
11 days ago2 Answers
- A: Thank you for reaching out! No, this sprayer does not include a remote on/off switch out of the box, but an optional Wireless Remote Control Switch is available (Fimco Part #7771938 / Tractor Supply SKU #1014208). The optional remote plugs directly into the sprayer’s 12V wire harness, allowing you to easily turn the pump on and off from the seat of your tractor or ATV using a key fob.7 days agoHelpful?
Q: What size tire and rim fits this sprayer
19 days ago1 Answer
- A: The tire and rim for the Fimco 30-Gallon Trailer Sprayer are supplied together as a complete wheel assembly. The size is 4.80 / 4.00 - 8. If you need a replacement, the complete wheel assembly (tire and rim combined) is available under Fimco Part # 5021090-SVR. You can call our customer service team at 800-831-0027 or you can have your local Tractor Supply special order it for you.18 days agoHelpful?
Q: Tire size
a month ago1 Answer
- A: The tire size for this sprayer is 4.80 x 8 (2-ply).28 days agoHelpful?
Q: Where it get tire and wheel replacement
a month ago1 Answer
- A: For a replacement tire and wheel assembly for your 30-gallon trailer sprayer, you have two convenient options: Local Tractor Supply: You can visit your local Tractor Supply store and ask them to place a special order for the replacement tire and wheel. Part number can be found in your owner's manual. Or direct from FIMCO: You can also order directly through us. Please call our Customer Service team at 800-831-0027. Have your sprayer model number handy, and our team will be happy to ensure you get the exact replacement part you need.a month agoHelpful?
Q: Where can i find replacement tips for this sprayer
a month ago1 Answer
- A: Thank you for your question. Please contact Fimco customer support for replacement tips.a month agoHelpful?
Q: What is the span of coverage
2 months ago1 Answer
- A: The 3-nozzle boom on this sprayer provides a 90" total spray swath for efficient coverage while towing. Additionally, the included spray wand is capable of reaching up to 40 feet horizontally and 25 feet vertically for spot spraying hard-to-reach areas.2 months agoHelpful?
Q: Does the sprayer cone with the 12v wire connections
2 months ago2 Answers
- A: Yes, this sprayer includes a lead wire with alligator clips for easy connection to a 12-volt battery. The included wire harness is fuse-protected and features an integrated On/Off switch, allowing you to connect directly to your vehicle's battery or a separate 12-volt battery.2 months agoHelpful?
Q: The caps on top of pump leak product.
2 months ago1 Answer
- A: Thank you for reaching out. We're sorry to hear you are experiencing a leak, but if it is coming from the top of the pump manifold where the elbow connectors sit, this is usually a very quick fix. Those black elbow connectors are actually two-piece mechanisms that can sometimes vibrate loose during shipping or heavy use. You can easily snug them back up by following these steps: Remove the cap from the leaking connection on top of the manifold. Look directly inside the cap. You will see a hexagon-shaped cutout molded into the material. Insert a 3/8" Allen (hex) wrench directly into that cutout. Turn it clockwise to snug up the internal connection. This compresses the seal and should completely stop the product from leaking. Please give that a try, as it usually takes care of the issue right away. If you find that tightening it doesn't stop the leak, or if you notice a crack in the material itself, please let us know. We are more than happy to help get any necessary replacement parts sent out to you!2 months agoHelpful?
Q: At 5mph how many square feet will the sprayer cover
3 months ago2 Answers
- A: Here is the clearest way to break this down: At an application rate of 6.7 gallons per acre, a full 30-gallon tank will cover approximately 4.48 acres. Since 1 acre equals 43,560 square feet, the total coverage for a full tank is 195,149 square feet (or roughly 195,000 sq. ft.).3 months agoHelpful?
1 - 10 of 83 Questions
Similar Items
-
-
-
Top Rated
-
-
-
-
-
Top Rated
-
-
-
-
Items You May Like
-
-
-
Top Rated
-
-
-
-
Top Rated
-
-
-
-
-
Reviews
Summary of Reviews
The sprayer is described as powerful, with a sturdy build and a versatile design suitable for various applications. Key features like the 3-nozzle boom, adjustable wand, and 30-gallon capacity allow for efficient and effective coverage. Many users report the sprayer is easy to set up and operate. Ho...
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
Most Helpful Favorable Review
5 out of 5 stars.
Great sprayer
5 years ago
Fairly easy to set up with no issues or missing pieces. Quality appears to be very good. I spent 7 hours (4x 30 gal) spraying my property on the first use. The first 30 gal was all wand use which worked perfectly and the other 90 gallons was all boom use. The wand was very easy to adjust and has very high quality metal adjustable tip. The boom worked perfectly with no issues. Battery chord was plenty long enough.
13 people found this helpful
Show Reviews:
Most Helpful Critical Review
2 out of 5 stars.
Very unstable on uneven ground
6 years ago
I bought this last year and am disappointed. I guess it depends on your application, but if you're spraying food plots that are even the slightest bit rough or uneven, you WILL tip this thing over during use. When that happens, the mounting bracket that attaches to the hitch on your ATV or UTV WILL bend and you'll have to straighten it. Looking back I wish I'd bought the one that just straps to the back of the ATV. The wheelbase on this one is really terrible.
9 people found this helpful
Show Reviews:
Customer Images and Videos
- spraying
- purchase
- setup
- satisfaction
- quality
- ease of use
- instructions
- price
1 to 4 of 970 Reviews .
1 – 4 of 970 Reviews
Most Recent
South carolina
Reviews 9
5 out of 5 stars.
wonderful sprayer
11 days ago
Easy to use. The pump is powerful and the wand allowed various streams from misting to distance projection. The pump was easy to assemble and easy to use. I found it much nicer than my previous mix on exit by Chapin. I like the availability of parts at Tractor Supply.
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
7 days ago
Fimco Industries
Thank you so much for taking the time to leave such a detailed 5-star review! We are thrilled to hear that you're enjoying the power and versatility of the 2.4 GPM pump and adjustable spray wand compared to your previous setup. Thank you for choosing Fimco! Happy spraying!
Alabama
Review 1
5 out of 5 stars.
Nice Sprayer
12 days ago
Works well, strong pump, better than my last one.
SweepstakesYes
Response from Fimco Industries:
7 days ago
Fimco Industries
Thank you for taking the time to share your feedback! We are thrilled to hear that your 30-gallon trailer sprayer is performing well and that you're enjoying the power of the 2.4 GPM pump compared to your previous setup. We appreciate your business and hope it serves you reliably for many seasons to come.
Iota La
Review 1
1 out of 5 stars.
Not satisfied
23 days ago
It came with none of the hoses no sprayer. Literally just the tank and wheels. Very disappointing and can’t give me any kind of refund due to me using rewards. So just stuck with a sprayer on wheels
No, I do not recommend this product.
Response from Fimco Industries:
21 days ago
Fimco Industries
We are so sorry to hear that your sprayer was missing its components. Sometimes store floor units or returned boxes can get separated from their parts packages before pickup. Regardless of Tractor Supply’s store return policies, FIMCO will take care of you directly. Please contact our Customer Support team at 1-800-831-0027, with what is missing, and we will ship out all the missing hoses, hardware, and spray wand free of charge so you have a fully working sprayer.
Michigan
Review 1
1 out of 5 stars.
Piece of junk; doesn't last
29 days ago
I've owner this sprayer since approx. 2018. Doesn't appear much has changed with it other than it's even more grossly overpriced now than it was then. (think I paid $300 for it - $450 is robbery).
First, it will work the first time you use it. But the second and third times? Well the pump might still be working then but the rubber seals in the couplings will probably be dry rotted along with the rubber hoses for the boom or the wand. I know mine were and I thoroughly flushed/cleaned my tank every time I used it. A few years later and it was leaking like a sieve from every coupling and the hoses had multiple splits in them - and this was from being drained completely and stored indoors.
Then the plastic component for winding the wand hose snapped off so I had to get creative winding the wand hose. The tip for the wand also got so badly corroded that it needed to be replaced after 1 summer.
Oh and all those pretty metal components - the trailer tongue, the axle, hose clamps, nuts and bolts? All will be rusted or corroded beyond usability within a year or two as it 's all just cheap chinesium.
Honestly you should pass on this piece of crap or keep looking for more bang for your buck. I probably spent more time replacing and fixing things on it than I did actually running it. I wouldn't recommend this to my worst neighbor. Unreliable and WILL fail you sooner than later.
No, I do not recommend this product.
Response from Fimco Industries:
25 days ago
Fimco Industries
Thank you for taking the time to share your review. We are very sorry to hear about the ongoing frustration and seal/hose failures you've experienced with your 30-gallon trailer sprayer. We have many customers with older models of this exact same sprayer who have experienced years of reliable service with minimal issues, so rapid degradation of rubber seals, hoses, and metal components often indicates exposure to aggressive or highly corrosive chemicals that require specialized seal materials. We'd welcome the chance to learn more about the products you're running. Please reach out to our customer service team at 1-800-831-0027 so we can assist you with replacement parts.
