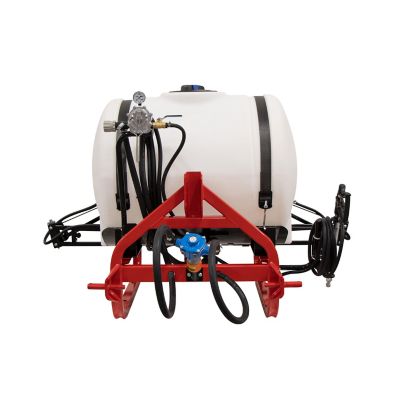

The FIMCO 110 Gallon 3 Point Sprayer with 1025FX4 Boom, Spray Wand, and Pump is a versatile and efficient tool for managing weeds, insects, and diseases on your property. Designed for use with small to mid-size farm tractors, this sprayer offers a combination of features that make it ideal for both small-scale and larger spraying jobs. The large capacity 110 gallon tank minimizes the need for frequent refills, allowing you to cover more ground in less time. The 10-nozzle boom provides a wide 16.7 feet spray coverage, making it easy to cover large areas quickly and efficiently. The boom folds for easy storage and transport. The included Pro Series 22" Spray Wand has an adjustable pattern tip that allows for targeted spraying which is perfect for spot treatments or areas where the boom can't reach. The reliable Hypro 6 roller pump ensures consistent and efficient spraying performance. The sprayer is built with a durable, UV-resistant polymer tank and a powder-coated steel frame, ensuring long-lasting performance. Built to withstand the rigors of farm use, this 3-point sprayer is suitable for a variety of tasks, from spraying large fields to small gardens.Whether you're a farmer, landowner, or property manager, the FIMCO 110 Gallon 3 Point Sprayer with 1025FX4 Boom, Spray Wand, and Pump is a valuable tool for keeping your property healthy and looking its best.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.
- Cast iron 6 roller pump provides up to 18.2 GPM with quick PTO coupler
- Category 1, 2 or 3 hitch compatible
- Durable 110 Gallon roto molded tank features UV stabilizers and sump for increased drainage
- Folding 10 nozzle welded steel boom features Teejet tips and is spring loaded for easy deployment, use and storage. Plus it provides 16.7 feet of total spray coverage featuring air induction tips for less drift and no drip check valves
- Pro Series high pressure 22" spray wand features a locking handle, adjustable pressure nozzle, adjustable spray pattern and comes with 25 feet of hose
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 16.7 ft |
| Boom Nozzle Count | 10 |
| Boom Style | Folding Boom |
| Chemical Compatibility | Weed Killer, Repellents, Repellent, Pesticide, Herbicide, Grass Killer, Fertilizer, Fungicide, Insecticide |
| Features | Pro Series Spray Wand |
| Hose Diameter | 0.375 in. |
| Hose Length | 25 ft. |
| Maximum Flow Rate | 18.2 GPM |
| Maximum Operating Pressure | 300 PSI |
| Mounting Type | Pin |
| Power Type | Other |
| Product Height | 89 in. |
| Product Length | 51 in. |
| Product Weight | 320 lb. |
| Product Width | 46 in. |
| Pump Type | Roller |
| Boom Width | 15 ft |
| Tank Capacity | 110 gal. |
| Spray Method | Spot Spraying, Boom Spraying (Precision) |
| Tank Material | Poly |
| Warranty | 1 yr Consumer / 90 day Commercial |
| Manufacturer Part Number | 5303763 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 9 of 9 Questions
Newest questions
Q: Where can I buy just parts for this sprayer? I need just the frame
15 days ago1 Answer
- A: To get the correct frame for your sprayer, the best first step is to check your owner's manual for the specific part number. You can usually find the illustrated parts list section towards the back of the manual. If you no longer have the manual, we can help you look that up. To ensure we find the right replacement, please let us know: The model number of your sprayer (this is typically found on the tank or frame). An estimate of how old the unit is, so we can check if that specific frame is still in production. Once you have the part number, you can order it directly through us, or you can take that number to your local Tractor Supply and ask them to special order it for you. Please let us know if you have any trouble locating the model number!13 days agoHelpful?
Q: shipping info
2 months ago1 Answer
- AI-generated, Human-approvedA: This item is available online only and requires scheduling for delivery. It arrives partially assembled, though some reviewers noted it may ship with missing hardware like bolts.2 months agoHelpful?
Q: Can you provide any information. Nozzle discharge (gallons per minute and operating pressure psi). Nozzle spacing (inches). Nozzle Type - (Fine, medium, coarse etc.). Nozzle Material ( ceramic, stainless, poly) Thank you
3 months ago1 Answer
- A: This sprayer uses TeeJet AIXR11003VP air-induction flat-fan nozzles spaced approximately 20 inches apart across the 10-nozzle FX4 boom. These nozzles typically deliver about 0.30 GPM at 40 PSI, with normal operating pressures commonly between 30–70 PSI. The nozzle material is polymer, designed for durability and corrosion resistance. The sprayer’s pump is rated up to 18.2 GPM with a maximum pressure of 300 PSI.3 months agoHelpful?
Q: What is the spraying pressure pressure at the nozzle?
3 months ago1 Answer
- A: The Fimco 110 Gallon 3-Point Sprayer with the Hypro 6 Roller Pump has a maximum operating pressure of 300 PSI. However, the actual spraying pressure at the nozzle is typically adjusted much lower for optimal performance and drift control.3 months agoHelpful?
Q: What roller pump is shipped????? Is a 6 or 8 roller pump recommended???
4 months ago1 Answer
- A: Hi, the Fimco 110 gal. 3 pt. Sprayer (Model 3PT-110-6R-1025FX4) ships with a Hypro 6500C 6-Roller Cast Iron Pump. This pump is specifically matched to the sprayer's 10-nozzle folding boom to provide optimal flow and pressure for agricultural tasks like weed and pest control.4 months agoHelpful?
Q: I just purchased this sprayer, and would like to have a few extra spray nozzles on hand. What part number should be used for these?
a year ago1 Answer
- A: the part number for the tips is AIXR11003VP.a year agoHelpful?
Q: What RPM is needed to get the 18.2 GPM flow rate
a year ago1 Answer
- A: 1200 RPM and 150 PSI.a year agoHelpful?
Q: Does tank have a drain plug?
a year ago1 Answer
- A: Gene, there is no drain plug on the tank itself. To drain the tank, you would close the shut-off valve on the intake line. Then disconnect your hose after the valve, then you can open the valve and drain the tank.a year agoHelpful?
Q: Does the sprayer have agitation or an option to add?
a year ago1 Answer
- A: this sprayer does not come with an agitation, but one can be added.a year agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 9 of 9 Questions
Newest questions
Q: Where can I buy just parts for this sprayer? I need just the frame
15 days ago1 Answer
- A: To get the correct frame for your sprayer, the best first step is to check your owner's manual for the specific part number. You can usually find the illustrated parts list section towards the back of the manual. If you no longer have the manual, we can help you look that up. To ensure we find the right replacement, please let us know: The model number of your sprayer (this is typically found on the tank or frame). An estimate of how old the unit is, so we can check if that specific frame is still in production. Once you have the part number, you can order it directly through us, or you can take that number to your local Tractor Supply and ask them to special order it for you. Please let us know if you have any trouble locating the model number!13 days agoHelpful?
Q: shipping info
2 months ago1 Answer
- AI-generated, Human-approvedA: This item is available online only and requires scheduling for delivery. It arrives partially assembled, though some reviewers noted it may ship with missing hardware like bolts.2 months agoHelpful?
Q: Can you provide any information. Nozzle discharge (gallons per minute and operating pressure psi). Nozzle spacing (inches). Nozzle Type - (Fine, medium, coarse etc.). Nozzle Material ( ceramic, stainless, poly) Thank you
3 months ago1 Answer
- A: This sprayer uses TeeJet AIXR11003VP air-induction flat-fan nozzles spaced approximately 20 inches apart across the 10-nozzle FX4 boom. These nozzles typically deliver about 0.30 GPM at 40 PSI, with normal operating pressures commonly between 30–70 PSI. The nozzle material is polymer, designed for durability and corrosion resistance. The sprayer’s pump is rated up to 18.2 GPM with a maximum pressure of 300 PSI.3 months agoHelpful?
Q: What is the spraying pressure pressure at the nozzle?
3 months ago1 Answer
- A: The Fimco 110 Gallon 3-Point Sprayer with the Hypro 6 Roller Pump has a maximum operating pressure of 300 PSI. However, the actual spraying pressure at the nozzle is typically adjusted much lower for optimal performance and drift control.3 months agoHelpful?
Q: What roller pump is shipped????? Is a 6 or 8 roller pump recommended???
4 months ago1 Answer
- A: Hi, the Fimco 110 gal. 3 pt. Sprayer (Model 3PT-110-6R-1025FX4) ships with a Hypro 6500C 6-Roller Cast Iron Pump. This pump is specifically matched to the sprayer's 10-nozzle folding boom to provide optimal flow and pressure for agricultural tasks like weed and pest control.4 months agoHelpful?
Q: I just purchased this sprayer, and would like to have a few extra spray nozzles on hand. What part number should be used for these?
a year ago1 Answer
- A: the part number for the tips is AIXR11003VP.a year agoHelpful?
Q: What RPM is needed to get the 18.2 GPM flow rate
a year ago1 Answer
- A: 1200 RPM and 150 PSI.a year agoHelpful?
Q: Does tank have a drain plug?
a year ago1 Answer
- A: Gene, there is no drain plug on the tank itself. To drain the tank, you would close the shut-off valve on the intake line. Then disconnect your hose after the valve, then you can open the valve and drain the tank.a year agoHelpful?
Q: Does the sprayer have agitation or an option to add?
a year ago1 Answer
- A: this sprayer does not come with an agitation, but one can be added.a year agoHelpful?
Similar Items
-
-
Top Rated
-
-
-
-
-
Top Rated
-
-
-
-
-
Items You May Like
Reviews
- quality
- setup
1 to 4 of 15 Reviews .
1 – 4 of 15 Reviews
Most Recent
Texas
Review 1
4 out of 5 stars.
Fimco 110 sprayer
4 days ago
Sprayer was expected. Other than missing a bolt or two and a few nuts the assembly was pretty easy and straight forward.
SweepstakesYes
Response from Fimco Industries:
4 days ago
Fimco Industries
Thank you for sharing your feedback! We’re glad to hear the assembly for your Fimco 110-gallon sprayer was straightforward and met your expectations. We apologize for the inconvenience of the missing bolts and nuts. We want to make sure your sprayer is fully secure, so please reach out to our customer service team at 800-831-0027 or email us at info@fimcoindustries.com, if you're still missing any bolts and nuts—we would be more than happy to send those missing pieces out to you right away!
Anonymous
Rising Star, Texas
Review 1
4 out of 5 stars.
Good sprayer, crappy packaging
24 days ago
The sprayer works fine. Unfortunately it was shipped to store in a strange loading way and the “wrap” all came off on the highway, along with some bolts and nuts. The owners manual was at the bottom and a hole had been worn through the middle of all pages. Found manual online but instructions on assembly pretty skimpy. However, I still rate four stars because the sprayer is a good one.
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
23 days ago
Fimco Industries
Thank you for taking the time to share your experience with our 110-gallon 3-pt sprayer. We are thrilled to hear that the unit itself is performing well for you, but I am very sorry to hear about the condition in which it arrived. Shipping hardware and manuals should arrive fully intact, and it is disappointing to hear that yours arrived without proper containment and with a damaged manual. If you need any specific technical details—such as the boom parts breakdown or assembly diagrams—please feel free to reach out to our technical support team directly at 800-831-0027. We want to make sure you have everything you need to get the most out of your sprayer. Thank you again for the 4-star rating and for choosing our equipment. We appreciate your patience and hope you have a successful spraying season.
Review 1
5 out of 5 stars.
Good sprayer
2 months ago
Sprayer works well. You need to do a lot to calibrate the flow rate. Your tractor speed, engine rpm/pressure are important. I added a 60 psi pressure gauge because the supplied 400 gauge is unreadable at 25psi.
Review 1
5 out of 5 stars.
Works really well on my Kubota L48.
10 months ago
Works really well on my Kubota L48.
Response from Fimco Industries:
10 months ago
Fimco Industries
Thank you for your purchase of the 110-gallon 3PT sprayer from Tractor Supply. Glad that it's working really well on your Kubota for your spraying needs.
