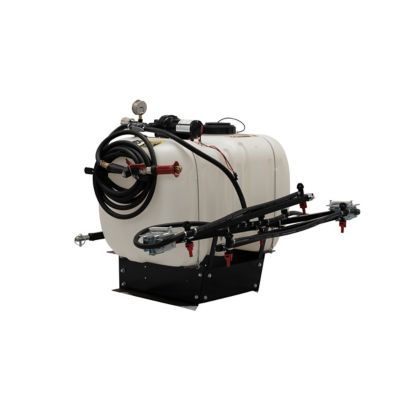

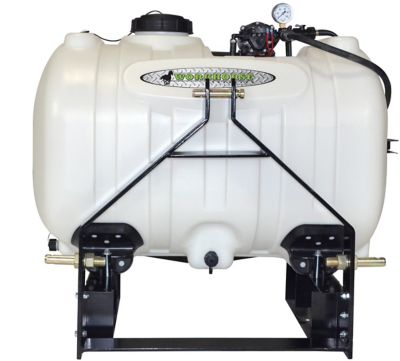

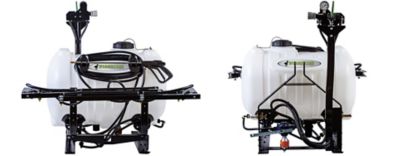

WorkHorse Sprayers 40 gal. 3-Point Sprayer with 5-Nozzle Boom
Limited Time Deal
WorkHorse Sprayers 40 gal. 3-Point Sprayer with 5-Nozzle Boom
Item # 136231999
$674.99
Sale
Was$899.99
Save $225.00
or
or
Neighbor’s Club Members earn points with purchases.
Limited Time Deal
WorkHorse Sprayers 40 gal. 3-Point Sprayer with 5-Nozzle Boom
Item # 136231999
$674.99
Sale
Was$899.99
Save $225.00
or
or
$57/mo.† suggested payments with 12 Months Financing or earn $33 in Rewards+ on this purchase.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.
The WorkHorse Sprayers 40 gal. 3-Point Sprayer with 5-Nozzle Boom is the perfect choice for weed control for pastures, crop rows and any large areas. Available with a 5-nozzle boom, this 3-point agricultural sprayer is designed to hold up for a variety of heavy-duty agricultural applications. Built with the quality Workhorse is known for, the agriculture sprayer will provide the dependability needed season after season. The 18 in. spray wand boasts 35 ft. of horizontal throw and 25 ft. of vertical throw.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.
- 40 gal. polyethylene agriculture sprayer tank for convenience
- Equipped with 12V demand pump 2.2 GPM pumps
- Deluxe pistol grip spray wand with adjustable spray nozzle
- Comes with 25 ft. of 3/8 in. PVC reinforced hose
- 5-nozzle heavy-duty folding boom for compact storage
- Includes an 8 ft. wiring harness with battery clips
- 3-point agriculture sprayer features heavy-duty frame construction and a heavy-duty manifold design
- Pressure gauge keeps you apprised of the sprayer's status
- Chemical-resistant construction and RoundUp ready for durability
- Agriculture sprayer is ideal for weed control in pastures, crop rows and any large areas
- Folding boom delivers 100 in. of spray coverage
- 18 in. spray wand boasts 35 ft. of horizontal throw and 25 ft. of vertical throw
- Made in the U.S.A.
| Brand | WorkHorse Sprayers |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 100 in |
| Boom Nozzle Count | 5 |
| Chemical Compatibility | Herbicide |
| Features | Pressure Regulator/Gauge |
| Hose Diameter | 3/8 in. |
| Hose Length | 25 ft. |
| Maximum Flow Rate | 2.2 GPM |
| Maximum Operating Pressure | 60 PSI |
| Mounting Type | Pin |
| Power Type | 12 Volt |
| Product Height | 34 in. |
| Product Length | 42 in. |
| Product Weight | 115 lb. |
| Product Width | 34 in. |
| Pump Type | Other |
| Tank Material | Polyethylene |
| Warranty | 1 year |
| Manufacturer Part Number | G23-LG4253PT |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 32 Questions
Newest questions
Q: Does this sprayer fit a forty five horsepower , new holland tractor
5 months ago1 Answer
- A: This sprayer will fit a category 1.5 months agoHelpful?
Q: How does this connect to a Massey Ferguson small tractor that has a three point hitch?
a year ago1 Answer
- A: This is a category I 3PT sprayer.a year agoHelpful?
Q: Does the tank have an agitator
2 years ago1 Answer
- A: Robert, the sprayer does not have an agitator. There is a bypass line that bypasses the water or solution back into the tank, but the more this line is open, the less the pressure you'll have for spraying, but it can be used when you first mix your chemical to help agitate it.2 years agoHelpful?

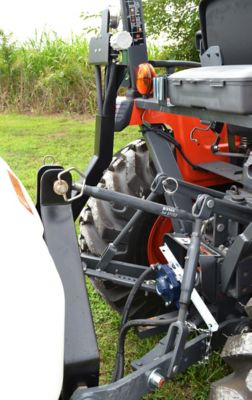

Q: One of the pictures shows a PTO connection. Can this be connected to the tractor PTO? If so, how?
2 years ago1 Answer
- A: Yes, it can. You can use clips to connect it to the battery.2 years agoHelpful?
Q: What type of battery to run it? I want to use the sprayer with both my tractor and utility cart. Need an external battery
2 years ago1 Answer
- A: Hi, just a 12 volt batter.2 years agoHelpful?
Q: Will you assemble this product for me and then deliver it?
2 years ago1 Answer
- A: Hi, Some TSC locations have started offering assembly service for an additional charge. Please reach out to your local store for assembly and delivery options.2 years agoHelpful?
Q: Is this powerful enough to wet a large horse arena?
3 years ago1 Answer
- A: Hi, Unfortunately this product is no longer available on our website, therefore I do not have access to the products information. Please reach out directly to Workhorse Sprayers at https://secure.workhorsesprayers.com/contact-support/ OR CALL CUSTOMER CARE 1-800-654-9808 8:00 AM – 4:30 PM EST, Mon – Fri3 years agoHelpful?
Q: 1 picture shows a pto pump. Description says electric pump?
3 years ago1 Answer
- A: Hi, Thanks for reaching out. This product is currently offline and not available to order.3 years agoHelpful?
Q: Does this have bolts through the container - our last workhorse sprayer leaked and could not be repaired.
3 years ago1 Answer
- A: Hi, This particular model Workhorse sprayer is no longer available to order.3 years agoHelpful?
Q: Is this compatible with a Kubota 3 point hitch?
3 years ago1 Answer
- A: Hi, The manufacturer show this hitch as being universally compatible with all brands and 3 point models, so it should fit.3 years agoHelpful?
1 - 10 of 32 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 32 Questions
Newest questions
Q: Does this sprayer fit a forty five horsepower , new holland tractor
5 months ago1 Answer
- A: This sprayer will fit a category 1.5 months agoHelpful?
Q: How does this connect to a Massey Ferguson small tractor that has a three point hitch?
a year ago1 Answer
- A: This is a category I 3PT sprayer.a year agoHelpful?
Q: Does the tank have an agitator
2 years ago1 Answer
- A: Robert, the sprayer does not have an agitator. There is a bypass line that bypasses the water or solution back into the tank, but the more this line is open, the less the pressure you'll have for spraying, but it can be used when you first mix your chemical to help agitate it.2 years agoHelpful?
Q: One of the pictures shows a PTO connection. Can this be connected to the tractor PTO? If so, how?
2 years ago1 Answer
- A: Yes, it can. You can use clips to connect it to the battery.2 years agoHelpful?
Q: What type of battery to run it? I want to use the sprayer with both my tractor and utility cart. Need an external battery
2 years ago1 Answer
- A: Hi, just a 12 volt batter.2 years agoHelpful?
Q: Will you assemble this product for me and then deliver it?
2 years ago1 Answer
- A: Hi, Some TSC locations have started offering assembly service for an additional charge. Please reach out to your local store for assembly and delivery options.2 years agoHelpful?
Q: Is this powerful enough to wet a large horse arena?
3 years ago1 Answer
- A: Hi, Unfortunately this product is no longer available on our website, therefore I do not have access to the products information. Please reach out directly to Workhorse Sprayers at https://secure.workhorsesprayers.com/contact-support/ OR CALL CUSTOMER CARE 1-800-654-9808 8:00 AM – 4:30 PM EST, Mon – Fri3 years agoHelpful?
Q: 1 picture shows a pto pump. Description says electric pump?
3 years ago1 Answer
- A: Hi, Thanks for reaching out. This product is currently offline and not available to order.3 years agoHelpful?
Q: Does this have bolts through the container - our last workhorse sprayer leaked and could not be repaired.
3 years ago1 Answer
- A: Hi, This particular model Workhorse sprayer is no longer available to order.3 years agoHelpful?
Q: Is this compatible with a Kubota 3 point hitch?
3 years ago1 Answer
- A: Hi, The manufacturer show this hitch as being universally compatible with all brands and 3 point models, so it should fit.3 years agoHelpful?
1 - 10 of 32 Questions
Similar Items
-
-
Top Rated
-
-
-
-
-
-
-
Top Rated
-
-
-
Items You May Like
-
-
-
Top Rated
-
-
-
-
-
-
-
-
Top Rated
-
Reviews
- purchase
- battery
- spraying
- as pictured
- connections
- customer service
- efficiency
- for cold weather
1 to 4 of 42 Reviews .
1 – 4 of 42 Reviews
Most Recent
Anonymous
Alabama
Review 1
3 out of 5 stars.
Not the one showing in the picture
10 months ago
When I bought this it shows to have a PTO in the picture but when you get it it's electric pump and the cord to the battery is to short you will have to buy a longer cord to get it to reach the battery.
No, I do not recommend this product.
Response from Fimco Industries:
10 months ago
Fimco Industries
Thank you for your purchase of the Workhorse 40-gallon 3PT sprayer from Tractor Supply. I will let our marketing department know that they need to reach out to Tractor Supply and have them fix their pictures they have showing. We hope that you'll be happy with your new sprayer, and it handles your spraying needs.
Review 1
3 out of 5 stars.
A few cheap parts.
a year ago

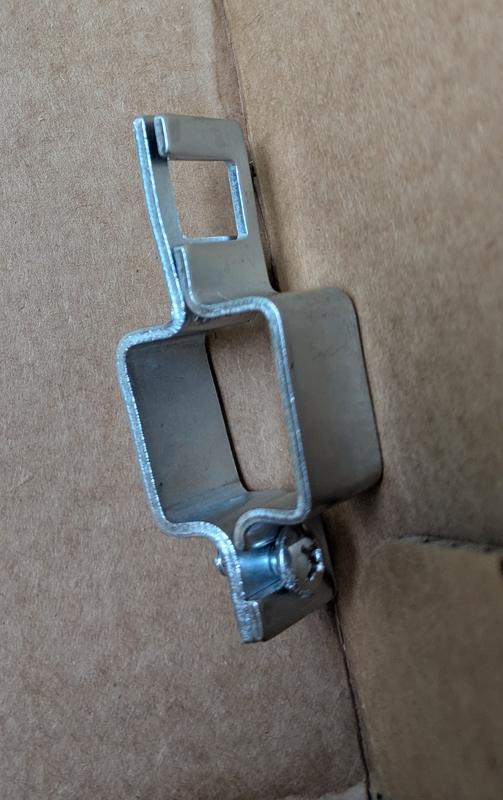

Two of the five nozzle brackets did not fit correctly. I had to do some heavy modes. And one of the nozzle filters was clogged and I could not unplug it. I ordered more filters to fix this issue. Once I fixed all the issues, the sprayer seemed to work well.
SweepstakesYes
Response from Fimco Industries:
a year ago
Fimco Industries
Hugh, thank you for your purchase of the Workhorse 40-gallon 3PT sprayer from Tractor Supply. Not sure why a couple of the nozzle brackets didn't fit, unless they grabbed from the wrong bin, as we have two sizes of nozzle brackets. If you are still in need of any parts, please contact our customer service team at 888-433-6631 and they'll be happy to assist you.
Review 1
4 out of 5 stars.
Not as shown
a year ago
Nit hard to put together. The harness is way to short. 3 of the 5 nozzle filters do not work. And tractor supply does not carry them. Seems to work fine once you get it spray. Wish i had bought from our local co op instead they have been more helpful.
No, I do not recommend this product.
Response from Fimco Industries:
a year ago
Fimco Industries
Thank you for your purchase of the Workhorse 40-gallon 3PT sprayer from Tractor Supply. Please contact our customer service team at 888-433-6631 and they'll be happy to get you some nozzle filters.
Jacksonville NC
Review 1
5 out of 5 stars.
Good product
a year ago
Everything is great about the product. Only shortfall is this item is primarily built to be used on larger tractors. As such the power cable should be likewise. I was anxious to get started with spraying after assembling it only to find that the power cord didn’t reach the battery.
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
a year ago
Fimco Industries
Bob, glad that you're happy with your new sprayer, other than the lead wire. I will pass on that information to our engineers. Please call our customer service team if you're needing an extension cable for your sprayer and they'll be happy to assist you. You can reach our team at 888-433-6631.
