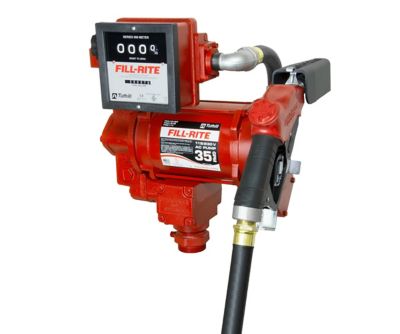

Fill-Rite 3/4 HP 115/230V Electric Fuel Transfer Pump with Discharge Hose, 35 GPM, Automatic Nozzle & Mechanical Meter, FR311VB
Item # 186086499
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 186086499
Valid 8/24/2026 - 9/7/2026
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Fill-Rite 115/230VAC 35 GPM Fuel Transfer Pump with Discharge Hose, Automatic Nozzle and Mechanical Meter is a heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a meter, hose, nozzle, and installation components. It can withstand daily use in high-volume, stationary applications. The pump works through all kinds of conditions, so why shouldn't your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on truck accessories? Check out our guide on truck accessories in the product documents section.
- Our highest volume AC pump that transfers fuel at 35 GPM, ideal for filling heavy equipment from aboveground storage tanks
- Durable cast-iron construction provides heavy-duty performance and allows the fuel pump to withstand daily use in high-volume, stationary applications
- Thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
- Dual voltage design allows you to select either 115V or 230V AC power with the simple turn of a switch
- We stand behind our fuel transfer pump with an industry-leading Limited Lifetime Warranty to protect your purchase and your business
- Meter type included with the fuel pump: 901C Mechanical Meter (gal.)
- Discharge hose: 1 in. x 18 ft. UL Listed Hose with Static Ground Wire
- Nozzle: 1 in. Ultra Hi-Flow Automatic Diesel Nozzle (Red)
- Cable connection: bare leads
| Brand | Fill-Rite |
|---|---|
| Country of Origin | Made in USA |
| AC or DC Powered | AC |
| Amperage | 5A |
| Body Materials | Cast iron |
| Compatible Fluids | Diesel |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Duty Cycle | 30 min. |
| Features | Self-Priming |
| Horsepower | 0.75 HP |
| Hose Diameter | 1 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Intended Use Grade | Industrial |
| Maximum Flow Rate | 35 GPM |
| Maximum Head Lift | 18 ft. |
| Maximum Operating Pressure | 26 PSI |
| Maximum Operating Temperature | 150 deg. |
| Minimum Operating Pressure | 26 PSI |
| Minimum Operating Temperature | -40 deg. |
| Power Type | Electric |
| Product Height | 19.4 in. |
| Product Length | 17 in. |
| Product Weight | 91 lb. |
| Product Width | 17 in. |
| Voltage | 115/230V |
| Warranty | Limited Lifetime |
| Manufacturer Part Number | FR311VB |
