Fill-Rite 1/4 HP 115V Electric DEF Transfer Pump with Auto Nozzle, 8 GPM, Suction & Disharge Hose and Tote Bracket DF120CAN520
Item # 186091499
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 186091499
Valid 8/24/2026 - 9/7/2026
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

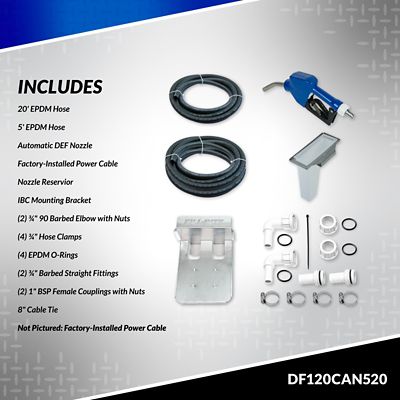

The Fill-Rite 115V 8 GPM DEF Transfer Pump with IBC Tote Bracket and Nozzle is a durable, reliable DEF transfer pump. This pump and accessory bundle includes a stainless steel IBC tote mount, suction hose, discharge hose, automatic nozzle, and all fittings needed for installation. Proudly manufactured in the USA, this Fill-Rite DEF transfer pump is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Engineered with multi-diaphragm technology and EPDM seals, this pump excels in daily DEF transfer
- Integral pulsation dampener reduces excessive foaming and splashing, keeping the flow of your DEF pump smooth and mess minimal
- Fill the included nozzle storage boot with water to eliminate mess and headaches from DEF crystallization
- Convenient IBC tote and drum mounting brackets and included fittings make installation quick, saving you time and eliminating frustration
- Create a completely closed-loop system with the included RPV coupler in many models, enhancing safety and preserving fluid purity
- Flow rate range of the fuel transfer pump: 0 to 8 GPM
| Brand | Fill-Rite |
|---|---|
| Country of Origin | Made in USA |
| Amperage | 2.4A |
| Body Materials | Polypropene |
| Compatible Fluids | Exhaust Fluid |
| Discharge Connection | Threaded Male |
| Discharge Diameter | 0.75 in. |
| Duty Cycle | 30 min. |
| Features | Self Priming |
| Horsepower | 0.25 HP |
| Hose Diameter | 0.75 in. |
| Inlet Connection | Threaded Male |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Commercial |
| Maximum Flow Rate | 8 GPM |
| Maximum Head Lift | 96 in. |
| Maximum Operating Pressure | 34 PSI |
| Maximum Operating Temperature | 140 deg. |
| Minimum Operating Pressure | 0 PSI |
| Minimum Operating Temperature | -15 deg. |
| Power Type | Electric |
| Product Height | 6.5 in. |
| Product Length | 15.25 in. |
| Product Weight | 38.3 lb. |
| Product Width | 10 in. |
| Voltage | 120V |
| Warranty | 2 Year |
| Manufacturer Part Number | DF120CAN520 |
