Fill-Rite 1/4 HP 12V DEF Transfer Pump with Tote Accessories, 8 GPM, DF012CAN520
Fill-Rite 1/4 HP 12V DEF Transfer Pump with Tote Accessories, 8 GPM, DF012CAN520
Item # 228779899
$799.99
or
or
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Fill-Rite 1/4 HP 12V DEF Transfer Pump with Tote Accessories, 8 GPM, DF012CAN520
Item # 228779899
$799.99
or
or
$67/mo.† suggested payments with 12 Months Financing or earn $39 in Rewards+ on this purchase.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

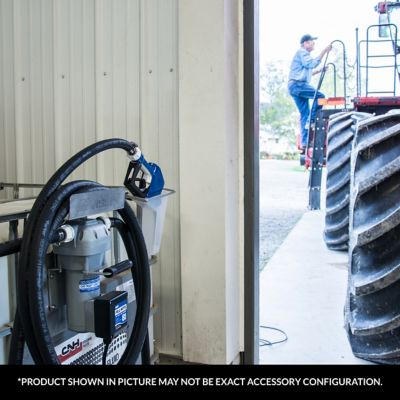

The Fill-Rite 1/4 HP 12V 8 GPM DEF Transfer Pump with Tote Accessories is a reliable diesel exhaust fluid transfer pump. This transfer pump and accessory bundle includes a stainless-steel IBC tote mount, a 5 ft. suction hose, a discharge hose, an automatic nozzle, and all fittings needed for installation.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

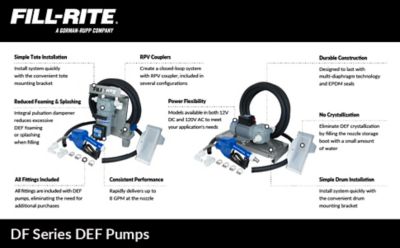

- Engineered with multi-diaphragm technology and EPDM seals, this DEF pump excels in daily DEF transfer
- Integral pulsation dampener reduces excessive foaming and splashing, keeping your flow smooth and mess minimal

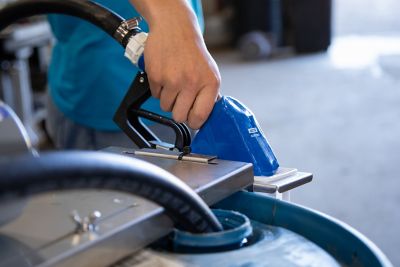

- Fill the included nozzle storage boot with water to eliminate mess and headaches from DEF crystallization

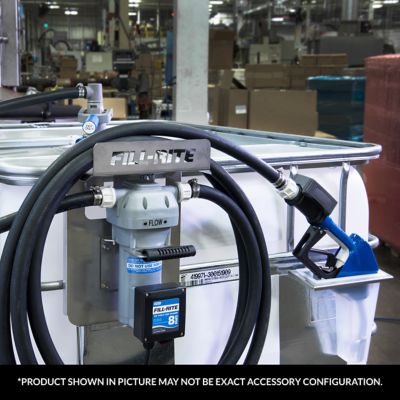

- Convenient IBC tote and drum mounting brackets and included fittings make installation quick, saving you time and eliminating frustration
- Create a completely closed-loop system with the included RPV coupler in many models, enhancing safety and preserving fluid purity
- Diesel exhaust fluid pump is factory mounted to an IBC bracket with an automatic nozzle, nozzle boot with bracket, 5 ft. suction hose - 3/4 in. EPDM, 20 ft. discharge hose - 3/4 in. EPDM and a connections kit that includes two 1 in. BSPP x 3/4 in. hose barb 90-degree elbows, two 1 in. BSPP x 3/4 in. hose barb straight fittings and 4 worm gear hose clamps
- 30-minute duty cycle
- 6 ft. suction lift
- 87 ft. discharge head
| Brand | Fill-Rite |
|---|---|
| Country of Origin | Made in USA |
| Body Materials | Thermoplastic |
| Compatible Fluids | Diesel Exhaust Fluid, Water |
| Discharge Connection | Male |
| Discharge Diameter | 1 in. |
| Duty Cycle | 30 min |
| Features | DEF Pump |
| Horsepower | 14 HP |
| Hose Diameter | 0.75 in. |
| Inlet Connection | Threaded Male |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Industrial |
| Maximum Flow Rate | 8 GPM |
| Maximum Head Lift | 8 ft. |
| Maximum Operating Pressure | 38 PSI |
| Maximum Operating Temperature | 140 deg. |
| Minimum Operating Pressure | 0 PSI |
| Minimum Operating Temperature | 12 deg. |
| Power Type | 12 Volt |
| Product Height | 15.4 in. |
| Product Length | 8.9 in. |
| Product Weight | 19.5 lb. |
| Product Width | 11 in. |
| Voltage | 12 v |
| Warranty | 2 year |
| Manufacturer Part Number | DF012CAN520 |
