Piusi USA 1/8 HP 120V Electric SuzzaraBlue Drum Fuel Pump Basic Kit with Manual Nozzle, 9 GPM
Piusi USA 1/8 HP 120V Electric SuzzaraBlue Drum Fuel Pump Basic Kit with Manual Nozzle, 9 GPM
Item # 1387343
$659.99
Piusi USA 1/8 HP 120V Electric SuzzaraBlue Drum Fuel Pump Basic Kit with Manual Nozzle, 9 GPM
Item # 1387343

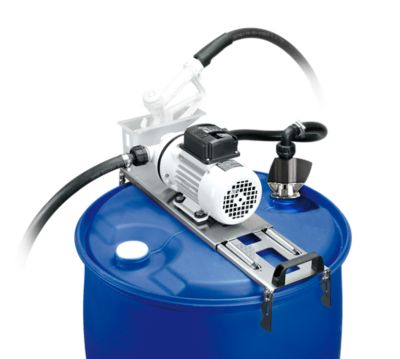

The Piusi SuzzaraBlue DEF Basic Drum 120VAC Kit is the perfect solution for a stationary DEF drum application. The system is readily equipped with a heavy-duty 9GPM DEF transfer pump, an easily transferable top-mount bracket, a manual nozzle, 20 ft. of dispense hose and 1.5 ft of suction hose.
- 7-9 GPM flow rate for efficiency
- 120VAC DEF membrane pump
- 20 min. on/ 20 min. off duty cycle
- 25 PSI operating pressure
- 20 ft. delivery hose makes refueling easy
- 6.5 ft. suction height
- 3/4 in. inner hose diameter
- 6.5 minute auto-shutoff timer board protection
| Brand | Piusi USA |
|---|---|
| Country of Origin | Imported |
| AC or DC Powered | AC |
| Amperage | 2A |
| Body Materials | Polypropelyne |
| Compatible Fluids | Diesel Exhaust Fluid |
| Discharge Connection | Threaded Male |
| Discharge Diameter | 0.75 in. |
| Duty Cycle | 20 min. on/off |
| Features | 6.5 timer board, membrane design to break up crystallization |
| Horsepower | 0.125 HP |
| Hose Diameter | 0.75 in. |
| Inlet Connection | Threaded Male |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Commercial |
| Maximum Flow Rate | 9 GPM |
| Maximum Head Lift | 6 ft. |
| Maximum Operating Pressure | 25 PSI |
| Maximum Operating Temperature | 110 deg. F |
| Minimum Operating Pressure | 26 PSI |
| Minimum Operating Temperature | 12 deg. F |
| Power Cord Length | 6 ft. |
| Power Type | Electric |
| Product Height | 11 in. |
| Product Length | 19 in. |
| Product Weight | 27 lb. |
| Product Width | 15 in. |
| Voltage | 120V |
| Warranty | 2 year |
| Manufacturer Part Number | F00201A3H |
