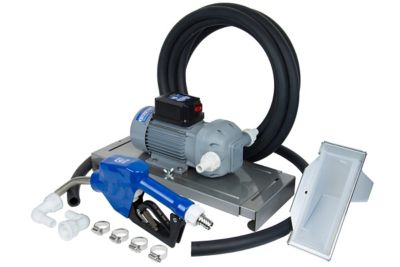

The Fill-Rite 8 GPM 120V DEF Transfer Pump with Auto Nozzle, Suction Hose, Discharge Hose, Drum Bracket and Power Cord is a 120V AC DEF transfer pump. This durable transfer pump bundle includes a stainless steel drum mount, steel suction pipe, discharge hose, automatic nozzle and all fittings needed for installation. The transfer pump features consistent flow performance, quick installation and convenient mounting brackets for IBC totes and barrel drums.
Specification | Description |
---|---|
Brand | Fill-Rite |
Country of Origin | Made in USA |
Amperage | 2.4A |
Body Material | Polypropylene |
Compatible Pipe Material | Polypropylene |
Discharge Connection | Threaded Female |
Discharge Diameter | 1 in. |
Discharge Rate at 0 ft. | 8 GPM |
Discharge Rate at 10 ft. | 6 gpm |
Engine Displacement | 0 in. |
Features | Self Priming |
Horsepower | 0.25 HP |
Hose Diameter | 0.75 in. |
Inlet Connection | Threaded Female |
Inlet Diameter | 1 in. |
Maximum Flow Rate | 8 GPM |
Maximum Head Lift | 8 ft. |
Maximum Operating Pressure | 34 PSI |
Maximum Operating Temperature | 140 deg. |
Maximum Suction Lift | 8 ft. |
Minimum Operating Pressure | 0 PSI |
Minimum Operating Temperature | -15 deg. |
Power Type | Electric |
Product Height | 9.5 in. |
Product Length | 8.25 in. |
Product Weight | 19.5 lb. |
Product Width | 19.5 in. |
Pump Mechanism | Diaphragm |
Motor Type | Diaphragm |
Voltage | 120V |
Warranty | 2 Year |
Manufacturer Part Number | DF120DAN520 |
