Dutton-Lainson Goldenrod 495 Fuel Filter, 56599

SKU # 395824499
Product price

Save Up To
See price at checkout Why?
Product Rating is 3.0
3.0
(2)

Financing Available! Click here for more details...

Quantity

Delivery Options:

Item Information

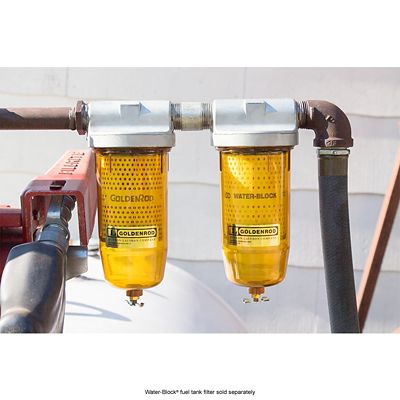

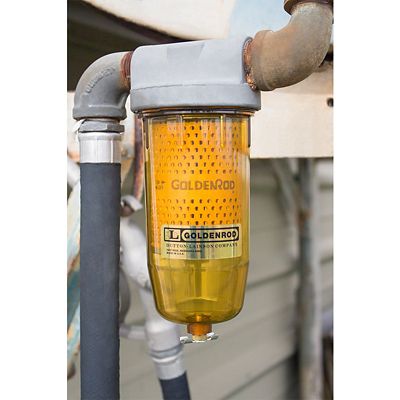

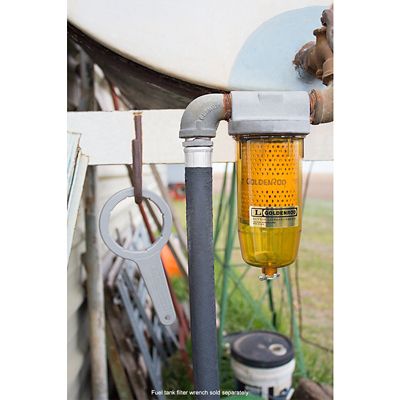

U.S.-made standard bowl fuel tank filter with 1" NPT top cap

  • Standard filter for use with common fuels including regular and unleaded gasoline, diesel fuel, fuel oil, and related additives including methyl, ethyl, and isopropyl alcohol (also compatible with biodiesel blends up to 20%)
  • Removes microscopic particles (10 microns) of rust, sand, dirt, scale, and lint
  • Zinc die-cast top cap with 1" NPT pipe fittings
  • See-Thru bowl allows for visual monitoring of fuel flow
  • Maximum recommended flow rate of 25 gpm; working pressure up to 150 psi

Specification Description
Product Type: Fuel Filters
Brand: Dutton-Lainson
Compatibility: Goldenrod fuel tank filters
CountryofOrigin: Made in USA
End Type: 1 in. NPT pipe fittings
Material: Steel, plastic, paper
Maximum Operating Pressure: 150
Package Quantity: 1
Part Number: 56599
Product Height: 9-5/8 in.
Product Length: 4-5/32 in.
Product Weight: 2-1/2 lb.
Product Width: 4-5/32 in.
Special Feature(s): Standard Fuel Tank Filter
Type: Standard Fuel Tank Filter
Manufacturer Part Number 56599
Dutton-Lainson Goldenrod 495 Fuel Filter, 56599 is rated 3.0 out of 5 by 2.
Rated 1 out of 5 by from Disappointed Purchased this unit to go on a transfer tank. Drain valve leaks / weeps. Would not purchase another one.
Date published: 2014-05-29
Rated 5 out of 5 by from great product !! the only filter I have ever used on my diesel holding tank. GREAT
Date published: 2013-11-02
  • y_2018, m_8, d_19, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_395824499, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 2ms
  • REVIEWS, PRODUCT

Can this filter be installed on the suction side of a transfer pump and also what size is the in and out?

Asked by: shakie
Thanks for your questions! Yes, this filter can be put on the suction side, but it is preferable to put it on the other side. With the filter on the suction side, it is possible to create a vacuum that can keep the bowl from filling completely. Having the pump before the filter and pushing the fluid through will keep this from happening. As for your second question, this filter's top cap has 1" NPT pipe fittings.
Answered by: Dutton-Lainson Company
Date published: 2017-08-08

Are the inlet fitting and the outlet fitting for the hose 1" or 3/4"?

Asked by: dmax1800
Thanks for your question! This filter has 1" NPT pipe fittings.
Answered by: Dutton-Lainson Company
Date published: 2017-09-18

Can this be used with non-ethanol gasoline?

Asked by: Whodat22
Yes, all Goldenrod fuel tank filters can be used with non-ethanol gasoline.
Answered by: Dutton-Lainson Company
Date published: 2017-07-06

Can this be mounted & used on a John Deere 3010 diesel tractor?

Asked by: Roxx22
Thanks for your question! The 495 and all other Goldenrod fuel filters are designed for use on fuel storage tanks and are not compatible with any tractor or vehicle of any kind.
Answered by: Dutton-Lainson Company
Date published: 2017-07-06
