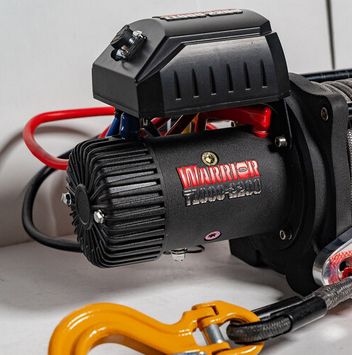

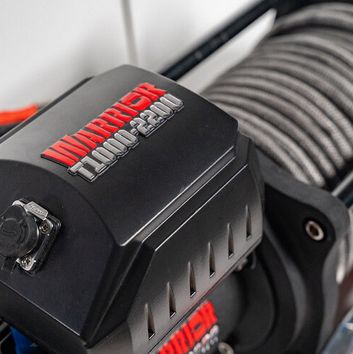

The DK2 Warrior Elite Combat 22000 lb. Severe Duty Electric Winch with ARMORTEK Synthetic Rope is built specifically for military use, able to withstand extreme climates and temperatures. The corrosion and chemical resistant matte black powder coating and a stainless steel fairlead makes this a formidable winch able to withstand whatever is thrown at it. The T1000 range of "Severe Duty" Warrior winches were originally designed as highly advanced prototypes for military application. This series has been designed to perform in severe climates and the harshest environments imaginable as an essential prerequisite. After successful operations in the field and following many plaudits at last year's Defense and Security Equipment International Expo, the decision was made to allow the T1000 range to become widely available for general use. Available in both 12v or 24v options, with either galvanized steel cable or the more widely preferred military grade "ARMORTEK Extreme" ropes. The T1000 electric winch could be a complete game changer as it is a more than capable solution for any industrial, commercial or military applications requiring a truly fully functional battle ready unit, or for those individuals who just demand the ultimate beast of a warrior on their truck. Like its namesake, T1000 series is undoubtedly one of the most the most advanced and durable machines on the market, it really is the best of the best.Limited 1 year warranty
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 22,000 lb. rate line pull; Motor: 12 volt, 7.4 HP
- IP68 Rated Military Grade winch and control box
- Hardened 3 stage planetary gears for reliable and efficient use in the harshest environments
- Waterproof remote control with LED indicators to monitor the temperature of the motor
- Corrosion and chemical resistant powder coated for long-lasting use
- High temperature lithium grease that won't solidify in extreme temperatures
- Gearing ratio: 450:1; Drum Size - Diameter x Length: 3.4 in. x 8.3 in.
- Dimensions: 25.2 in. x 8.4 in. x 11.4 in.; Mounting pattern: 10 in. x 4.5 in.
- GJB82-86 National Military Standard, 165 lb.
- Layer of Rope: 1, Line Pull: 22,000 lb.; Rope on Drum: 14.1 ft.
- Layer of Rope: 2, Line Pull: 17,300 lb.; Rope on Drum: 32.8 ft.
- Layer of Rope: 3, Line Pull: 14,260 lb.; Rope on Drum: 55.1 ft.
- Layer of Rope: 4, Line Pull: 12,130 lb.; Rope on Drum: 78.7 ft.
- Line Pull: 0 lb.; Line Speed: 21.7 ft/min.; Amp Draw 12v: 65 Amp
- Line Pull: 5,000 lb.; Line Speed: 9.8 ft/min.; Amp Draw 12v: 175 Amp
- Line Pull: 10,000 lb.; Line Speed: 6.6 ft/min.; Amp Draw 12v: 270 Amp
- Line Pull: 15,000 lb.; Line Speed: 4.9 ft/min.; Amp Draw 12v: 350 Amp
- Line Pull: 22,000 lb.; Line Speed: 3 ft/min.; Amp Draw 12v: 460 Amp
- Register your product here: www.detailk2.com/warranty
- Limited 1 year warranty
- Electric winch includes synthetic rope, steel hook, stainless steel mounting hardware and aluminum hawse fairlead
- Patented ARMORTEK Synthetic Rope is 7 times stronger that steel cable
- Electric winch weighs 136.6 lb.
| Brand | DK2 |
|---|---|
| Country of Origin | Imported |
| Braking Mechanism | Mechanical |
| Capacity | 22,000 lb. |
| Clutch Type | Free-spooling |
| Compatibility | Detail K2 |
| Engine Brand | N/A |
| Engine Displacement | 0 N/A |
| Engine Type | Electric |
| Fairlead Included | Yes |
| Fairlead Type | Hawse |
| Features | Cable Included |
| Gear Ratios | 18 days, 18:01:00 |
| Horsepower | 7.4 HP |
| Line Diameter | 0.54 in. |
| Line Length | 78.7 ft. |
| Line Pull Capacity | 22,000 lb. |
| Line Speed | 3 FPM |
| Mounting Bolt Length | 10 in. |
| Mounting Bolt Width | 4.5 in. |
| Number of Speeds | 4 |
| Power Type | Electric |
| Primary Material | Steel |
| Product Height | 11.4 in. |
| Product Length | 25.2 in. |
| Product Weight | 165 lb. |
| Product Width | 8.4 in. |
| Line Type | Rope |
| Voltage | 12V |
| Warranty | 1 Year |
| Motor Type | Electric |
| Manufacturer Part Number | T1000-220AE |
Q: DK2 (Brand Rating: 4.0/5) 22,000 lbs. Capacity Electric Elite Combat Winch with Synthetic Rope I only need the synthetic rope on the winch
2 years ago- A: Thankyou for your feedback! The armortek synthetic rope is available for purchase in the link below. You will need the 12mmx30m rope. https://detailk2.com/shop-parts/p/armortek-extreme-winch-rope-hw3350 If you have any questions, do not hesitate to contact us at [email protected] or call us at 1(888) 277-6960 between the hours 8:00am-4:30pm EST. Thank you for choosing DK2! Todd2 years agoHelpful?
Q: Does the drum rotate clockwise or anti-clockwise?
4 years ago- A: Thanks for the inquiry! The drum winds up counter-clockwise and releases clockwise. There is also a video within this Tractor Supply listing that displays the usage of the winch will give you a better idea of how they function! For more information about our winches, visit our website https://detailk2.com/winches Farzad DK2 Customer Service Representative3 years agoHelpful?
