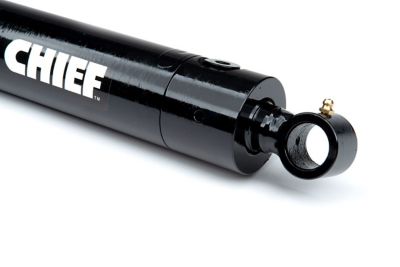

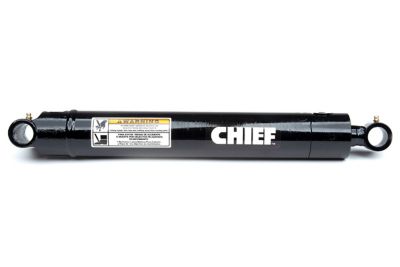

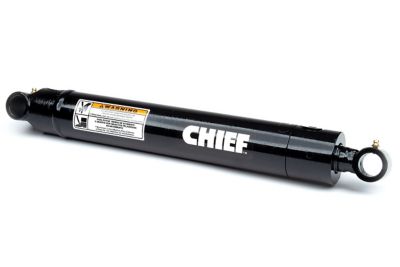

Chief 2 in. Bore x 18 in. Stroke WX Welded Hydraulic Cylinder

Shop all Chief
Chief 2 in. Bore x 18 in. Stroke WX Welded Hydraulic Cylinder

Item # 130474399

Chief Chief 2 in. Bore x 18 in. Stroke WX Welded Hydraulic Cylinder
Chief Chief 2 in. Bore x 18 in. Stroke WX Welded Hydraulic Cylinder
$319.99
or
or
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Shop all Chief
Chief 2 in. Bore x 18 in. Stroke WX Welded Hydraulic Cylinder

Item # 130474399

Chief Chief 2 in. Bore x 18 in. Stroke WX Welded Hydraulic Cylinder
Chief Chief 2 in. Bore x 18 in. Stroke WX Welded Hydraulic Cylinder
$319.99
or
or
financeCard Logo
$54/mo.†  suggested payments with 6 Months Financing or earn $15 in Rewards+ on this purchase.

This item is available online only

Out of stock delivering to

37027

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief 2 in. Bore x 18 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall hydraulic cylinder space is restricted. An adjustable 360 degree rotating gland allows you to make port alignments as needed. One of the welded hydraulic cylinder's ports is located on the rotating gland and two on the fixed base. Adjustments are made by using a spanner wrench to rotate the gland with port in a clockwise or counterclockwise direction.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Looking for more information on hydraulics? Check out our guide on hydraulics in the product documents section.

  • Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
  • Welded hydraulic cylinder with a 3,000 PSI operating range
  • Ductile iron piston with nylon, glass-filled wear ring is very durable
  • Adjustable 360-degree rotating gland allows you to make port alignments as needed
  • Rod is a nitrided steel bar with corrosion and scratch resistance
  • Double acting hydraulic cylinder design
  • Satin black paint finish
  • Individually poly bagged for ease of transport
  • 3-year limited warranty
  • Offers versatility in mounting options. It features recessed ports, with one located on the rotating gland and two on the fixed base. Adjustments are easily made using a spanner wrench to rotate the gland.
BrandChief
Country of OriginImported
Bore Diameter2 in.
Brand CompatibilityUniversal
CompatibilityTractors
Extended Length18 in.
Hydraulic Cylinder TypeWelded
Maximum Operating Pressure3,000 PSI
Maximum Weight Capacity9,420 lb.
Model CompatibilityMost applications
Package Quantity1
Pin Diameter1 in.
Port Size8 SAE
Primary MaterialIron
Product Height2-1/2 in.
Product Length2-1/2 in.
Product Weight21 lb.
Product Width4 in.
Retracted Length26 in.
Rod Diameter1-1/8 in.
Single/Double ActingDouble acting
Stroke Distance18 in.
Warranty3 Year Limited
Manufacturer Part Number207388

Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Sort by
Newest questions

Q: what is the length of the bolt up tubes 1 inch bore looking for a two inch long a

5 years ago
1 Answer
  • A: On our part number 207388, 2”bore x 18” stroke the base end cross tube is 2.5” in length and the rod end cross tube is 1.12” in length.
    5 years ago
    Helpful?

Q: How long is this cyl. from the center of both pin ends

6 years ago
1 Answer
  • A: This cylinder is 26 " from center of pin to center of pin when fully retracted.
    6 years ago
    Helpful?

Q&As

Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Sort by
Newest questions

Q: what is the length of the bolt up tubes 1 inch bore looking for a two inch long a

5 years ago
1 Answer
  • A: On our part number 207388, 2”bore x 18” stroke the base end cross tube is 2.5” in length and the rod end cross tube is 1.12” in length.
    5 years ago
    Helpful?

Q: How long is this cyl. from the center of both pin ends

6 years ago
1 Answer
  • A: This cylinder is 26 " from center of pin to center of pin when fully retracted.
    6 years ago
    Helpful?
