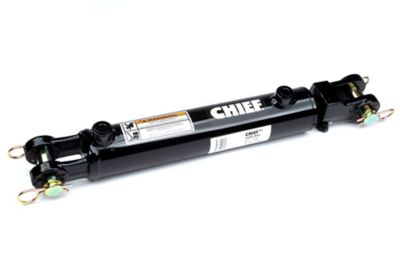

Chief WC Welded Cylinder, 4 in. Bore x 30 in. Stroke, 2 in. Rod Dia.

SKU # 130762599
Enter Zip Code for price
Product price

Save Up To
See price at checkout Why?
No ratings found

Financing Available! Click here for more details...



Delivery Options for

This item will ship within 0 days.

Item Information

The Chief WC Welded Cylinder with 4 in. Bore x 30 in. Stroke and 2 in. Rod Dia. is a high-quality welded cylinder with a strong forged steel base. The new Chief WC model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. The Chief WC provides added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. The base end clevis extends out 2 in. to ensure greater swing radius and Maximum flexibility.

  • Intended Use: double-acting applications
  • Piston: ductile iron
  • Gland: ductile iron
  • Tube: precision-honed steel
  • Rod: Hard chrome-plated
  • End Mounts: ductile iron female clevises with pins and clips included
  • Tube Seals: Buna O-ring
  • Rod Seal: deep polypak with B-lip design
  • Rod Wiper: urethane, snap-in
  • Piston Seal: Hallite 755 for prolonged wear resistance with wear ring
  • All Seals: manufactured to US specifications

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Port Size: SAE 8
Warranty: 3 Year
Application: For use in double or single acting hydraulic applications.
Bore Diameter: 4 in.
Product Type: Hydraulic Cylinders
Brand: Chief
Maximum Weight Capacity: 36080 lb.
Product Weight: 83 lb.
Rod Diameter: 2 in.
Type: Welded Hydraulic Cylinder
Maximum Operating Pressure: 3000 PSI
Includes: Pins and clips
Special Feature: Welded cylinder with clevis mounts
Package Quantity: 1
Pin Diameter: 1 in.
Material: Steel
Manufacturer Part Number 287066
