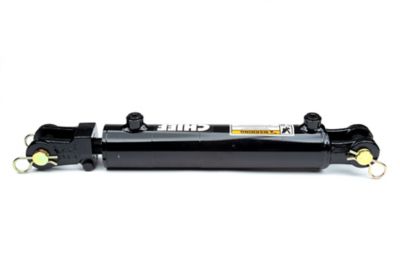

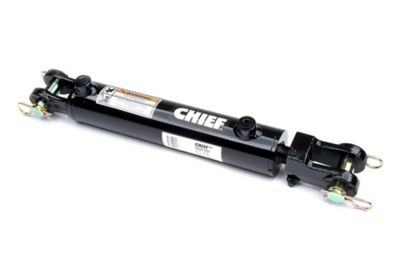

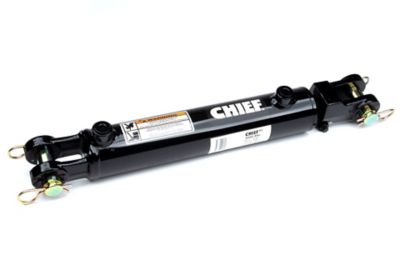

Chief WC Welded Cylinder, 4 in. Bore x 20 in. Stroke, 2 in. Rod Dia.

SKU: 130762399
Chief WC Welded Cylinder, 4 in. Bore x 20 in. Stroke, 2 in. Rod Dia.
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
No ratings found


Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

The Chief WC Welded Cylinder with 4 in. Bore x 20 in. Stroke and 2 in. Rod Dia. is a high-quality welded cylinder with a strong forged steel base. The new Chief WC model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. The Chief WC provides added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. The base end clevis extends out 2 in. to ensure greater swing radius and Maximum flexibility.

  • Intended Use: double-acting applications
  • Piston: ductile iron
  • Gland: ductile iron
  • Tube: precision-honed steel
  • Rod: Hard chrome-plated
  • End Mounts: ductile iron female clevises with pins and clips included
  • Tube Seals: Buna O-ring
  • Rod Seal: deep polypak with B-lip design
  • Rod Wiper: urethane, snap-in
  • Piston Seal: Hallite 755 for prolonged wear resistance with wear ring
  • All Seals: manufactured to US specifications

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Rod Diameter: 2 in.
Maximum Operating Pressure: 3000 PSI
Maximum Weight Capacity: 37690 lb.
Special Feature: Welded cylinder with clevis mounts
Pin Diameter: 1 in.
Type: Welded Hydraulic Cylinder
Bore Diameter: 4 in.
Warranty: 3 Year
Port Size: SAE 8
Includes: Pins and clips
Package Quantity: 1
Brand: Chief
Application: For use in double or single acting hydraulic applications.
Product Weight: 60 lb.
Material: Steel
Manufacturer Part Number 287064

 How long is this cylinder from center of pin to center of pin with the cylinder completely closed?

Asked by: Adam Kerber
Retracted measurement is 30.25" center pin to center pin.
Answered by: NRoberts
Date published: 2020-04-14
