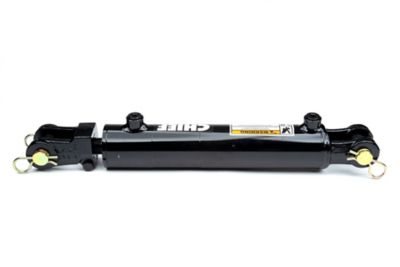

Chief 3 in. Bore x 48 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter

Shop all Chief
Chief 3 in. Bore x 48 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter

Item # 1307640

Chief Chief 3 in. Bore x 48 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter
Chief Chief 3 in. Bore x 48 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter
$379.99
Chief 3 in. Bore x 48 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter

Item # 1307640

Chief Chief 3 in. Bore x 48 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter
Chief Chief 3 in. Bore x 48 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter
$379.99

The Chief 3 in. Bore x 48 in. Stroke WC Welded Cylinder is a high-quality welded hydraulic cylinder with a strong forged steel base. Made for when space is limited, this hydraulic cylinder model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. It will provide added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications, and the base end clevis extends out 2 in. to ensure greater swing radius and maximum flexibility.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Individually poly bagged hydraulic cylinder for double-acting applications
  • Piston: ductile iron
  • Gland: ductile iron
  • Tube: precision-honed steel
  • Rod: hard chrome-plated
  • End mounts: ductile iron female clevises with pins and clips included
  • Tube seals: Buna O-ring
  • Rod seal: deep polypak with B-lip design
  • Rod wiper: urethane, snap-in
  • Piston seal: Hallite 755 for prolonged wear resistance with wear ring
  • All seals are manufactured to US specifications
  • Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
  • Welded hydraulic cylinder with SAE O-ring ports that allow for easy hookup
  • Has a 3,000 PSI operating range
  • 3-year limited warranty
  • Black paint finish
  • Measures 58.25 in. retracted and 106.25 in. extended
  • Column load: 4,970 lb.
  • Pin diameter of 1 in. and rod diameter of 1.5 in.
