Chief 2.5 in. Bore x 10 in. Stroke WC Welded Cylinder, 1.25 in. Rod Diameter

Shop all Chief
Chief 2.5 in. Bore x 10 in. Stroke WC Welded Cylinder, 1.25 in. Rod Diameter

Item # 1307581

Chief Chief 2.5 in. Bore x 10 in. Stroke WC Welded Cylinder, 1.25 in. Rod Diameter
Chief Chief 2.5 in. Bore x 10 in. Stroke WC Welded Cylinder, 1.25 in. Rod Diameter
$199.99
Chief 2.5 in. Bore x 10 in. Stroke WC Welded Cylinder, 1.25 in. Rod Diameter

Item # 1307581

Chief Chief 2.5 in. Bore x 10 in. Stroke WC Welded Cylinder, 1.25 in. Rod Diameter
Chief Chief 2.5 in. Bore x 10 in. Stroke WC Welded Cylinder, 1.25 in. Rod Diameter
$199.99

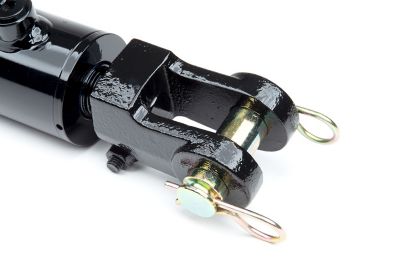

The Chief 2.5 in. Bore x 10 in. Stroke WC Welded Cylinder is a high-quality welded hydraulic cylinder with a strong forged steel base. This hydraulic cylinder model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. It provides added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. A base end clevis extends out 2 in. to ensure greater swing radius and maximum flexibility.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Intended use: double-acting applications
  • Piston: ductile iron
  • Gland: ductile iron
  • Tube: precision-honed steel
  • Rod: Hard chrome-plated
  • End mounts: ductile iron female clevises with pins and clips included
  • Tube seals: Buna O-ring
  • Rod seal: deep polypak with B-lip design
  • Rod wiper: urethane, snap-in
  • Piston seal: Hallite 755 for prolonged wear resistance with wear ring
  • All seals are manufactured to US specifications
  • Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
  • Measures 20.25 in. retracted and 30.25 in. extended
  • Welded hydraulic cylinder with a 3,000 PSI operating range
  • 3-year limited warranty
  • Black paint finish
  • Column load: 14,720 lb.
  • Pin diameter of 1 in. and rod diameter of 1.125 in.
  • SAE O-ring ports that allow for easy hookup
  • Individually poly bagged hydraulic cylinder works well in agricultural applications
