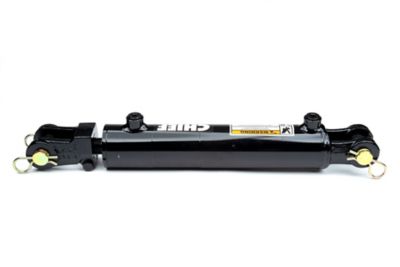

Chief WC Welded Cylinder, 2 in. Bore x 36 in. Stroke, 1.125 in. Rod Dia.

SKU # 130757699
Product price

Save Up To
See Price at Check Out
Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options:

Item Information

The Chief WC Welded Cylinder with 2 in. Bore x 36 in. Stroke and 1.125 in. Rod Dia. is a high-quality welded cylinder with a strong forged steel base. The new Chief WC model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. The Chief WC provides added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. The base end clevis extends out 2 in. to ensure greater swing radius and Maximum flexibility.

  • Intended Use: double-acting applications
  • Piston: ductile iron
  • Gland: ductile iron
  • Tube: precision-honed steel
  • Rod: Hard chrome-plated
  • End Mounts: ductile iron female clevises with pins and clips included
  • Tube Seals: Buna O-ring
  • Rod Seal: deep polypak with B-lip design
  • Rod Wiper: urethane, snap-in
  • Piston Seal: Hallite 755 for prolonged wear resistance with wear ring
  • All Seals: manufactured to US specifications

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Package Quantity: 1
Material: Steel
Port Size: SAE 8
Maximum Weight Capacity: 2600 lb.
Type: Welded Hydraulic Cylinder
Includes: Pins and clips
Bore Diameter: 2 in.
Application: For use in double or single acting hydraulic applications.
Warranty: 3 Year
Product Type: Hydraulic Cylinders
Brand: Chief
Pin Diameter: 1 in.
Maximum Operating Pressure: 3000 PSI
Special Feature: Welded cylinder with clevis mounts
Product Weight: 34 lb.
Rod Diameter: 1-1/8 in.
Manufacturer Part Number 287015
