The Chief 2.5 in. Bore x 20 in. Stroke WC Welded Cylinder is a high-quality welded hydraulic cylinder with a strong forged steel base. This hydraulic cylinder model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. It provides added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. A base end clevis extends out 2 in. to ensure greater swing radius and maximum flexibility.

  • Intended use: double-acting applications
  • Piston: ductile iron
  • Gland: ductile iron
  • Tube: precision-honed steel
  • Rod: hard chrome-plated

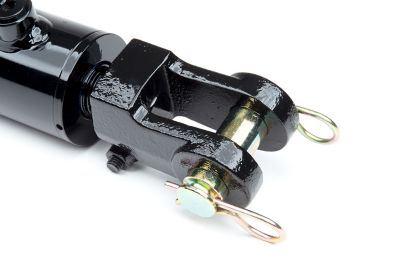

  • End mounts: ductile iron female clevises with pins and clips included
  • Tube seals: Buna O-ring
  • Rod seal: deep polypak with B-lip design
  • Rod wiper: urethane, snap-in
  • Piston seal: Hallite 755 for prolonged wear resistance with wear ring
  • All seals are manufactured to US specifications
  • Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
  • Measures 30.25 in. retracted and 50.25 in. extended
  • Welded hydraulic cylinder with a 3,000 PSI operating range
  • 3-year limited warranty
  • Black paint finish
  • Column load: 10,610 lb.
  • Pin diameter of 1 in. and rod diameter of 1.25 in.
  • SAE O-ring ports that allow for easy hookup
  • Individually poly bagged hydraulic cylinder works well in agricultural applications
Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Brand Chief
Country of Origin Imported
Bore Diameter 2.5 in.
Brand Compatibility Universal
Compatibility Tractors
Extended Length 50.25 in.
Hydraulic Cylinder Type Welded
Maximum Operating Pressure 3,000 PSI
Maximum Weight Capacity 10,610 lb.
Model Compatibility Most applications
Package Quantity 1
Pin Diameter 1 in.
Port Size SAE 8
Primary Material Steel
Product Height 2.5 in.
Product Length 10.25 in.
Product Weight 29 lb.
Product Width 1.2 in.
Retracted Length 30.25 in.
Rod Diameter 1-1/4 in.
Single/Double Acting Double acting
Stroke Distance 20 in.
Warranty 3 Year Limited
Manufacturer Part Number 287025
