Chief 4 in. Bore x 48 in. Stroke WP Welded/Pineye Cylinder, 2 in. Rod Diameter, 3,000 PSI

4.73 Reviews

Item # 130769999

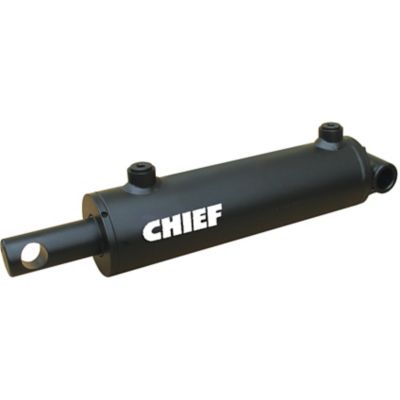

Image showing 4 in. Bore x 48 in. Stroke WP Welded/Pineye Cylinder, 2 in. Rod Diameter, 3,000 PSI
Image showing 4 in. Bore x 48 in. Stroke WP Welded/Pineye Cylinder, 2 in. Rod Diameter, 3,000 PSI
$589.68
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Chief 4 in. Bore x 48 in. Stroke WP Welded/Pineye Cylinder, 2 in. Rod Diameter, 3,000 PSI

4.73 Reviews

Item # 130769999

Image showing 4 in. Bore x 48 in. Stroke WP Welded/Pineye Cylinder, 2 in. Rod Diameter, 3,000 PSI
Image showing 4 in. Bore x 48 in. Stroke WP Welded/Pineye Cylinder, 2 in. Rod Diameter, 3,000 PSI
$589.68

This item is available online only

Delivering to

37027

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief 4 in. Bore x 48 in. Stroke WP Welded/Pineye Cylinder is a very versatile welded hydraulic cylinder. Its rod end comes with a drilled pin-hole and can easily be customized to fit your rod end of choice, and the base end has a welded cross-tube with grease zerk. This is a solid, dependable hydraulic cylinder for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment.Note: This product may require up to 2 additional days for order processing prior to shipping

  • Functionally tested and pressurized to 1.5 times the normal working pressure to insure performance reliability
  • SAE 8 O-ring ports for easy hookup
  • For use in double acting hydraulic cylinder or single acting hydraulic cylinder applications
  • All seals are manufactured to US specifications
  • 3-year limited warranty
  • Piston: ductile iron with wear ring
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision honed steel
  • Rod is hard chrome plated and rod end mount is rod eye drilled for durability
  • Base end mount: steel cross-tube with grease zerk
  • Tube seal: Buna O-ring with Polytemp hytrel backup
  • Rod wiper: Urethane, snap-in
  • Piston seal: Hallite 755 provides prolonged wear resistance with wear ring
  • Individually poly bagged welded hydraulic cylinder for construction and agricultural applications
  • 3,000 PSI operating range
  • Rod seal: deep polypak with B lip design
  • Measures 57 in. retracted and 105 in. extended
  • Column load: 16,280 lb.
  • Pin diameter of 1.25 in. and rod diameter of 2 in.
