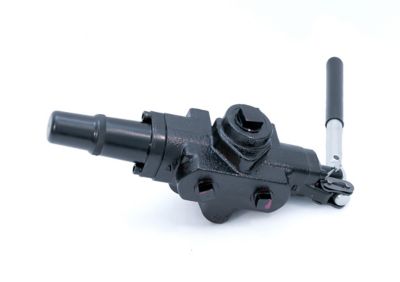

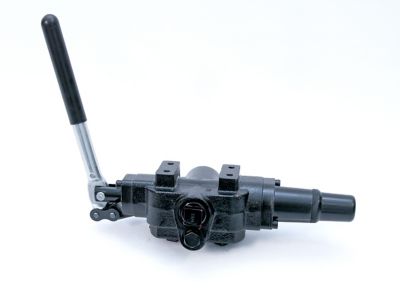

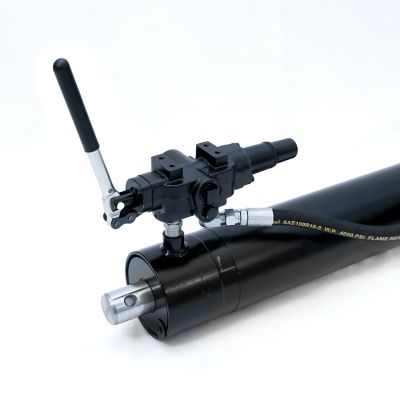

ToolTuff Direct Reverse Hydraulic Log Splitter Valve (C5)
Item # 2509465
- Maximum Log Diameter:0 in.
- Log Splitter Maximum Log Length:N/A
- Cycle Time:0-30 sec
Get everything you need
Neighbor’s Club Members earn points with purchases.
Item # 2509465
- Maximum Log Diameter:0 in.
- Log Splitter Maximum Log Length:N/A
- Cycle Time:0-30 sec
This item is available online only
Delivering to
37027
Get everything you need
Neighbor’s Club Members earn points with purchases.
REVERSE PORT CONFIGURATION for most Speeco, Husky, Oregon, TSC and MTD log splitters. View the port orientations in the photo's section to compare the port orientation to your existing log splitter. This valve is typically used on Brave and Champion log splitters but are used on others as well. Please make sure you are buying the right port configuration for your application! This is the next generation in log splitter valves. The detent is usually what wears out and causes valves to fail. This valve allows user to adjust the kick out pressure to what they need and as the detent wears.
Looking for more information on log splitters? Check out our guide on log splitter types in the product documents section.
- Single spool, Open center.
- Max pressure rating: 3500psi.
- Relief valve set at 3000psi but is adjustable.
- Working ports 1/2 in NPT.
- In/Out ports 3/4 in NPT
- Detent Pressure set at 700 psi but is adjustable.

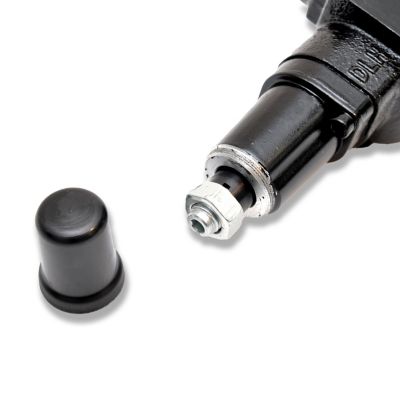

- Screw off end cap for easily detent pressure adjustability
- Cast Iron body
- Threaded mounting holes (4) are 1" center to center (width) x 1-5/8" center to center (length)
