Mr. Heater Propane Acme Nut, Black
Mr. Heater Propane Acme Nut, Black
3.76 Reviews
Item # 213617499
$11.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
Mr. Heater Propane Acme Nut, Black
3.76 Reviews
Item # 213617499
$11.99
Shopping at
Grassland (franklin) TN
Delivery to
37027
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

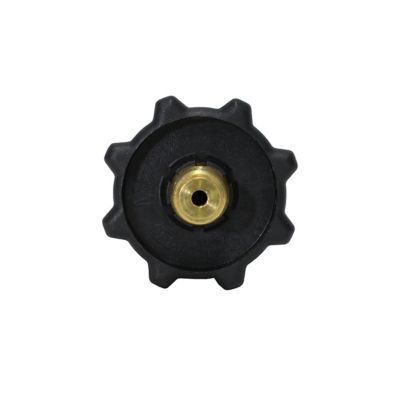

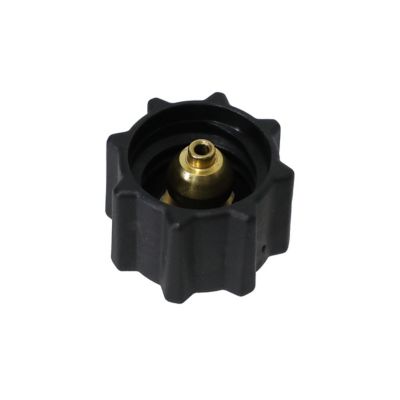

This Mr. Heater (black) Propane Grill Acme Nut is constructed with brass and a black plastic acme nut for easier identification. It features an excess flow safety valve, thermal shutoff, and a 1/4 inch male pipe thread. With a capacity of 80,000 BTUs or less, this product is most commonly used on propane gas grills with the new Type 1/Acme System.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Appliance End Fitting - Acme Nut x 1/4in Male Pipe Thread
- Capacity of 80,00 BTU or less
- Common use on propane gas grills with new Type1/Acme System
- Brass and black plastic construction
| Brand | Mr. Heater |
|---|---|
| Country of Origin | Made in USA |
| Compatibility | Appliances with 80,000 BTUs or less |
| Heating Replacement Part Type | Fittings |
| Package Quantity | 1 |
| Primary Color | Black |
| Primary Material | Brass |
| Product Height | 5.62 in. |
| Product Length | 2.37 in. |
| Product Weight | 0.23 lb. |
| Product Width | 4.5 in. |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | F276495 |
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: Is this what I need to make the Mr. Heater Buddy hose assembly work? Model# 273704. It's otherwise hooked securely to the heater and the 20 lb tank but no gas is exiting the tank although it works fine with 1 lb canisters.
4 years ago1 Answer
- A: Thank you for your inquiry. You do not need to use this Propane Acme Nut with the 10' Buddy Series Hose (F273704) to connect a Buddy Heater to a propane cylinder. The F273704 has a POL end that screws counter-clockwise into the valve on the propane cylinder and a 1" male throwaway cylinder thread end that connects into the regulator on a Buddy Heater. If you are not getting gas through F273704, it is most likely due to the excess-flow valve inside the POL connection on the hose being stuck. Close the cylinder, disconnect F273704 from the cylinder, and tap the brass POL connection on the end of the hose against the tank or ground 4-5 times to open the excess-flow valve back up. Lastly, re-connect the POL end to the cylinder and open the valve VERY slowly. It is recommended to do quarter-turn increments pausing for a split second in between turns until the valve is fully open. This should allow full flow of gas through the valve/hose. Have a great day!4 years agoHelpful?
Q: Does this still need to be used with a L.P. regulator, even if the gas heater has a regulated gas valve on it?
5 years ago2 Answers
- A: This Acme nut will replace the POL part of the regulator you already have. You do not need another regulator. It is a good idea to use a thread sealer made for propane gas on the threads of the Acme nut. I hope this helps.5 years agoHelpful?
Q: Can this assembly be disassembled? In other words, is this actually two (maybe, three, counting the washer) pieces. I only need the plastic nut for an older propane grill (Ducane) that uses non-standard (not current standards, anyway) threaded parts.
7 years ago1 Answer
- A: HI .... The ACME nut is designed according manufacturing specifications for safety and certification. Any alteration is prohibited and unadvisible.7 years agoHelpful?
Q: So this could not be used with a high pressure regulator?
8 years ago1 Answer
- A: Yes it can be used for the high pressure as well. thanks Rich Mr Heater8 years agoHelpful?
Q: Do I need a special tool to install this?
9 years ago1 Answer
- A: There is no special tool required to install this, have a great day!8 years agoHelpful?
Similar Items
-
Top Rated
-
-
Top Rated
-
-
-
-
-
Top Rated
-
Top Rated
-
-
-
Top Rated
Items You May Like
-
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
-
Top Rated
-
-
-
-
Top Rated
Customers Also Bought
-
Top Rated
-
-
Top Rated
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
Reviews
- functional
- returns
1 to 3 of 6 Reviews .
1 – 3 of 6 Reviews
Most Recent
PA
Review 1
1 out of 5 stars.
80k BTU my butt
5 years ago
Same issue as Dave Lacy's review. Needed a fitting for the tank to go to pipe thread for a 50k BTU space heater, got everything connected, had my manometer on the inlet, adjusted to 10-11 in.wc., pilot started and looked great, but as soon as the main valve opens, overflow trips and cuts my pressure down to about 1-2 in.wc. Returning. If there's another part of parts needed it should be specified in the PDF.
No, I do not recommend this product.
Response from Mr. Heater Product Expert:
5 years ago
Mr. Heater Product Expert
Thank you for your review and feedback. We'd like to speak to you about the experience you've had with our product. Please give us a call at 1-855-663-0660.
Waterford MI
Review 1
1 out of 5 stars.
Useless Why don't you have 0 stars?
5 years ago
Wouldn't work on my 36,000 BTU radiant heater. The internal overflow valve keeps shutting off the gas which is ridiculous! It's rated for up to 80,000 BTU!!!
I put the old fitting back on which works just fine. I guess I just have to keep a wrench handy.
Response from Mr. Heater Product Expert:
5 years ago
Mr. Heater Product Expert
Thank you for your review and feedback. We'd like to speak to you about the experience you've had with our product. Please give us a call at 1-855-663-0660.
Troy MO
Review 1
5 out of 5 stars.
Quick and easy.
6 years ago
This is just what you need if you do not want the hassles of the old POL fitting.
Yes, I recommend this product.
