Chief 5 in. Bore x 32 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter

5.02 Reviews

Item # 130751099

Image showing 5 in. Bore x 32 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
Image showing 5 in. Bore x 32 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
$936.86

See 2 deals for this item

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Chief 5 in. Bore x 32 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter

5.02 Reviews

Item # 130751099

Image showing 5 in. Bore x 32 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
Image showing 5 in. Bore x 32 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
$936.86

See 2 deals for this item

This item is available online only

Delivering to

37027

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief 5 in. Bore x 32 in. Stroke WT Welded Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction. The screw-in gland is removable from the rod end and makes this welded cylinder ideally suited for construction and agricultural applications. It even has the versatility to be used in other industries like metal fabricating, waste/recycling and OEM trailer manufacturing!Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Intended use: double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision-honed steel
  • Rod: ground and polished chromed steel with a minimum 75,000 PSI yield
  • Butt plate: steel
  • End mounts: steel cross-tubes with grease zerk
  • Spacer tube: steel on 48 in. stroke and above
  • Gland seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston seal: 755 Hallite with wear ring(s)
  • All other seals are selected and designed for maximum life
  • Hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
  • 3,000 PSI operating range on the welded hydraulic cylinder
  • Has an externally mounted retainer ring
  • SAE O-ring ports for efficiency
  • Black paint finish
  • Suitable for a variety of applications
  • Made in the USA
  • Column load: 58,900 lb.
  • Pin diameter 1.5 in. and rod diameter of 3 in.
  • Measures 43 in. retracted and 75 in. extended
  • 3 year limited warranty

Similar Items

  1. Top Rated
    Chief 5 in. Bore x 42 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
    5.0 out of 5 stars with 2 reviews (2)

    Chief 5 in. Bore x 42 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter

    $829.99
  2. Top Rated
    Chief 5 in. Bore x 48 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
    5.0 out of 5 stars with 2 reviews (2)

    Chief 5 in. Bore x 48 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter

    $845.17
  3. Top Rated
    Chief 5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
    5.0 out of 5 stars with 2 reviews (2)

    Chief 5 in. Bore x 36 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter

    $759.99
  4. Top Rated
    Chief 5 in. Bore x 54 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
    5.0 out of 5 stars with 2 reviews (2)

    Chief 5 in. Bore x 54 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter

    $902.35
  5. Top Rated
    Chief 5 in. Bore x 40 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
    5.0 out of 5 stars with 2 reviews (2)

    Chief 5 in. Bore x 40 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter

    $769.57
  6. Top Rated
    Chief 5 in. Bore x 72 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
    5.0 out of 5 stars with 2 reviews (2)

    Chief 5 in. Bore x 72 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter

    $1,099.99
  7. Top Rated
    Chief 5 in. Bore x 12 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
    5.0 out of 5 stars with 2 reviews (2)

    Chief 5 in. Bore x 12 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter

    $549.99
  8. Top Rated
    Chief 5 in. Bore x 30 in. Stroke WT Welded Hydraulic Cylinder, 2.5 in. Rod Diameter
    5.0 out of 5 stars with 2 reviews (2)

    Chief 5 in. Bore x 30 in. Stroke WT Welded Hydraulic Cylinder, 2.5 in. Rod Diameter

    $699.99
  9. Top Rated
    Chief 5 in. Bore x 16 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
    5.0 out of 5 stars with 3 reviews (3)

    Chief 5 in. Bore x 16 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
  10. Top Rated
    Chief 5 in. Bore x 18 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
    5.0 out of 5 stars with 2 reviews (2)

    Chief 5 in. Bore x 18 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
  11. Top Rated
    Chief 2 in. Bore x 14 in. Stroke WT Welded Cylinder, 1.25 in. Rod Diameter
    5.0 out of 5 stars with 2 reviews (2)

    Chief 2 in. Bore x 14 in. Stroke WT Welded Cylinder, 1.25 in. Rod Diameter

    $219.99
  12. Top Rated
    Chief 8 in. Bore x 60 in. Stroke WT Welded Cylinder, 4 in. Rod Diameter
    5.0 out of 5 stars with 2 reviews (2)

    Chief 8 in. Bore x 60 in. Stroke WT Welded Cylinder, 4 in. Rod Diameter

    $3,336.09

Items You May Like

Customers Also Bought

  1. Top Rated
    Chief 5 in. Bore x 42 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
    5.0 out of 5 stars with 2 reviews (2)

    Chief 5 in. Bore x 42 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter

    $829.99
  2. Top Rated
    Chief 5 in. Bore x 54 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
    5.0 out of 5 stars with 2 reviews (2)

    Chief 5 in. Bore x 54 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter

    $902.35
  3. Top Rated
    Chief 5 in. Bore x 12 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter
    5.0 out of 5 stars with 2 reviews (2)

    Chief 5 in. Bore x 12 in. Stroke WT Welded Cylinder, 2.5 in. Rod Diameter

    $549.99
  4. Top Rated
    Chief 6 in. Bore x 14 in. Stroke WT Welded Cylinder, 3 in. Rod Diameter
    5.0 out of 5 stars with 2 reviews (2)

    Chief 6 in. Bore x 14 in. Stroke WT Welded Cylinder, 3 in. Rod Diameter

    $749.99
  5. Top Rated
    Chief 5 in. Bore x 8 in. Stroke WT Welded Hydraulic Cylinder, 2.5 in. Rod Diameter
    5.0 out of 5 stars with 2 reviews (2)

    Chief 5 in. Bore x 8 in. Stroke WT Welded Hydraulic Cylinder, 2.5 in. Rod Diameter
  6. Top Rated
    Chief 2.5 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter, 212725
    5.0 out of 5 stars with 2 reviews (2)

    Chief 2.5 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter, 212725

    $299.99
  7. Top Rated

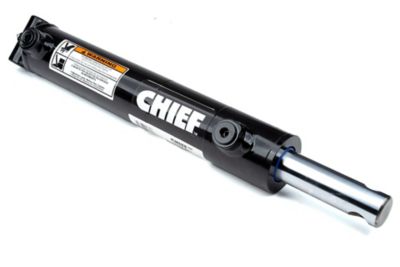

    Chief 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2 in. Rod Diameter
