Hobart Handler 210MVP MIG Welder, 500553

SKU: 101581099
Hobart Handler 210MVP MIG Welder, 500553
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.9
4.9
 (144)

Quantity

TSC of  #

,
TSC of  #

,
TSC of  #

,
TSC of  #

,
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location
Protect your purchase with Power Plus
Protect Your Purchase Click here for more details...

We'll fix it, replace it, or reimburse you for it.

Item Information

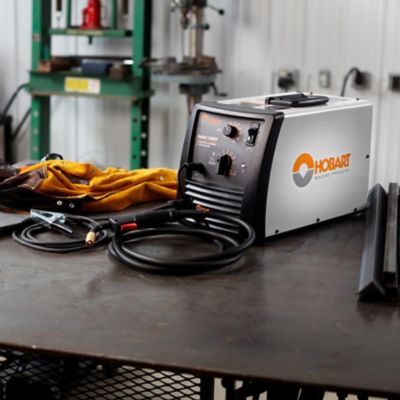

Handler 210MVP MIG Welder - A versatile wire feed welder capable of operating on either 115V or 230V input power. Welds up to 3/8 in. mild steel, spool gun ready for aluminum and is flux-cored or MIG ready.

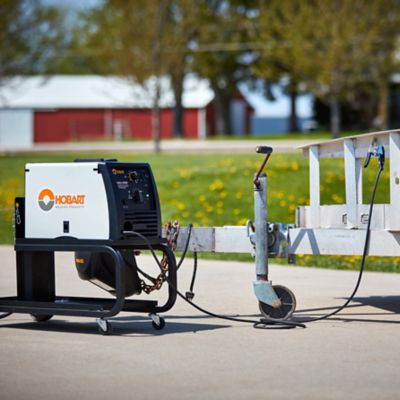

  • Max 210 amps in small portable case - Sized for transport of the unit to the jobsite and the power to weld 3/8 in. mild steel.

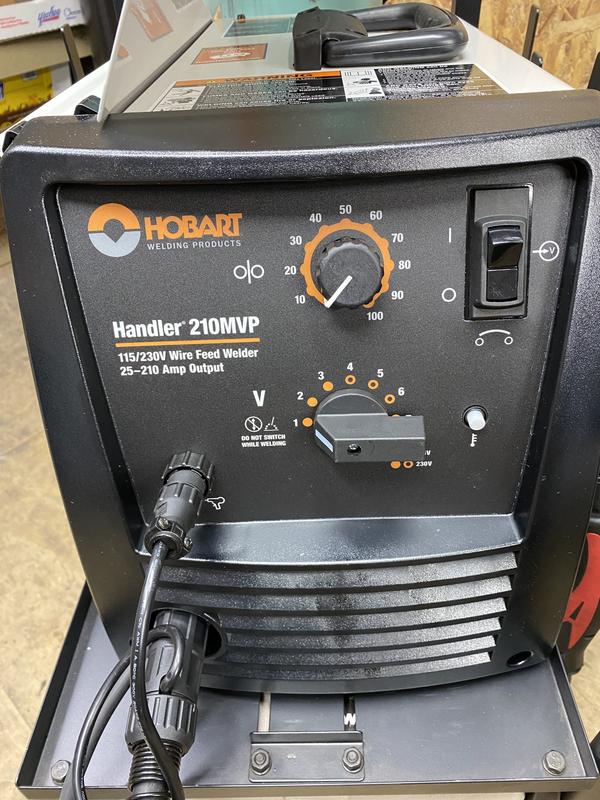

  • 7 (230 V) and 4 (115V) voltage settings, with infinite wire feed speed control - Offers easier fine control of the output parameters for improved arc performance with less spatter for a better bead appearance and less clean up.
  • Accepts uncomplicated, simple-to-install direct plug-in SpoolRunner 100 spool gun - Spool guns enhance feedability and reduce "bird-nesting" associated with soft aluminum wires

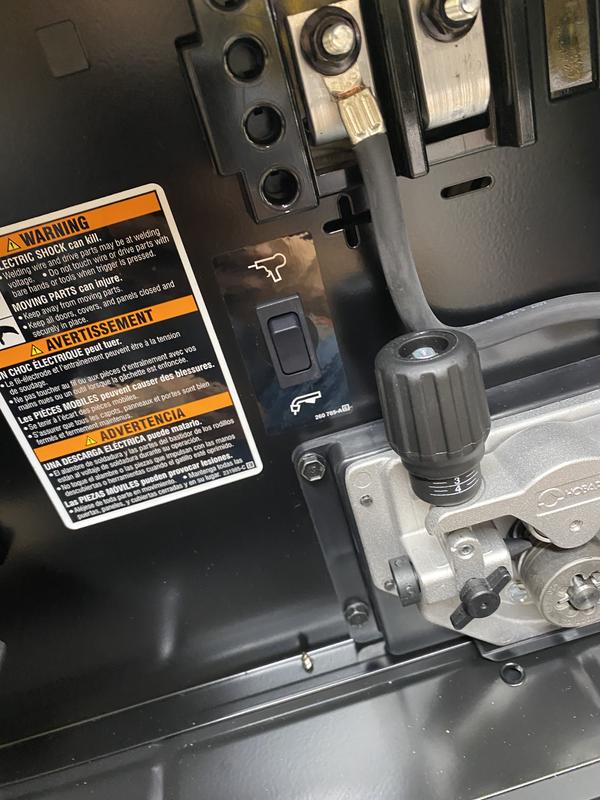

  • Integrated spool gun control circuitry is standard - No additional control box or adapter is required to connect the SpoolRunner 100 spool gun.
  • Dual-voltage capability with MVP (multi-voltage plug) - Allows you to connect to common 115 or 230 V power receptacles without the use of any tools - simply choose the plug that fits the receptacle.

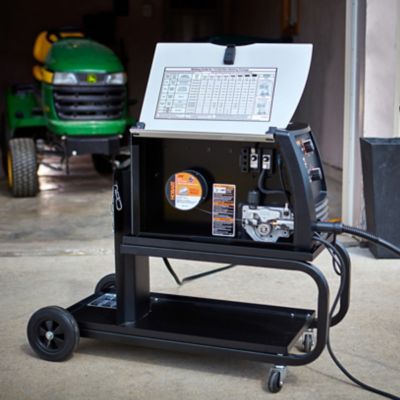

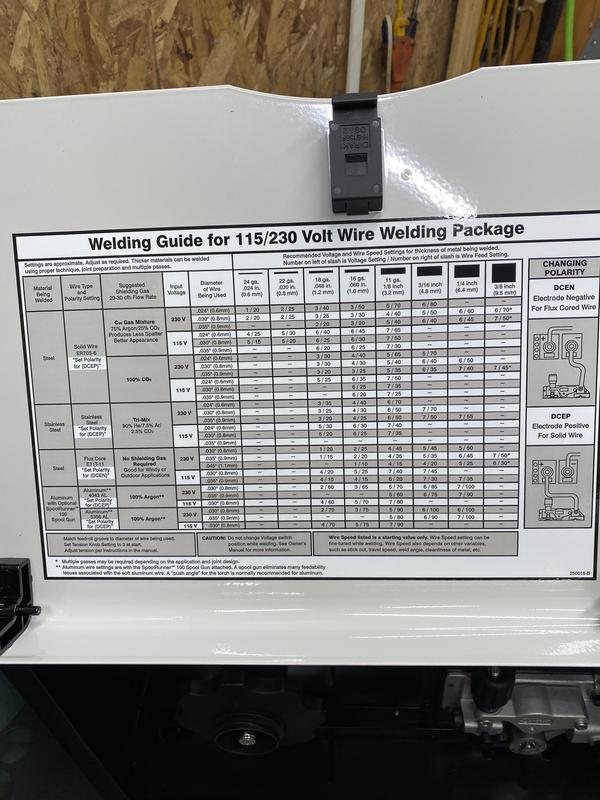

  • Door Chart with initial settings - Quickly reference initial settings for different wires, gases, materials and thicknesses. Provides quick starting point for novices and professionals alike.
  • Built-in contactor - Eases use and excellent safety feature which makes wire electrically "cold" until trigger is pulled.

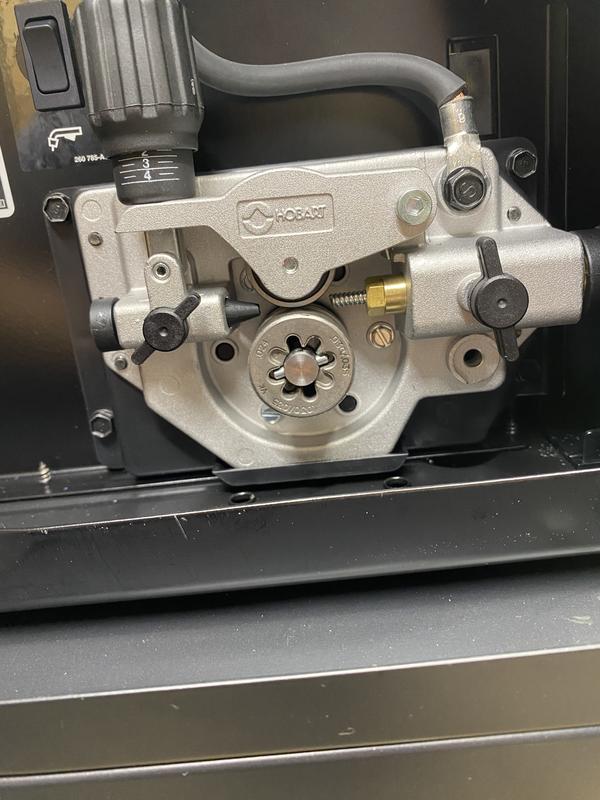

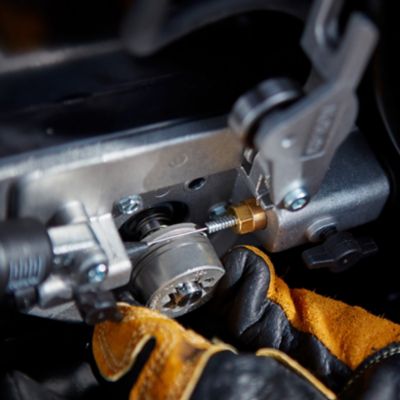

  • Industrial cast aluminum wire drive system - Professional and durable wire feed performance.
Hobart 5/3/1 Industrial Warranty

Specification Description
Amperage Input at Rated Output (60 Hz) - KW: 110/115/120 V - 220/230/240 V
Maximum Material Thickness: Mild Steel 1/4 in. - 3/8 in.
CountryofOrigin: Made in USA
Amperage Range: 115 V: 25-140 Amps / 230 V: 25-210 Amps

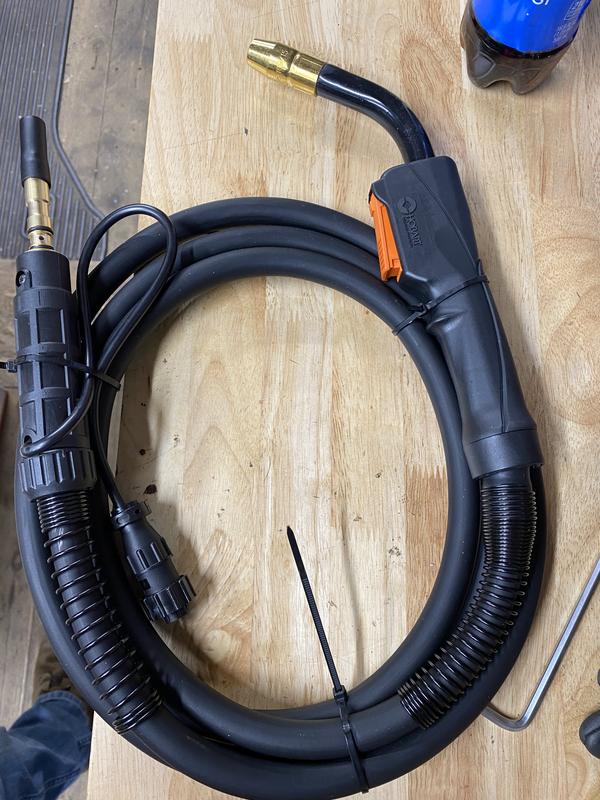

Gun Length: 10 ft.
Clamp Cable Length: 10 ft.
Product Weight: 79 lb.
Product Width: 10.625 in.
Maximum Wire Diameter: .045 in.
Spool Size Capacity: 4 or 8 in. spools
Product Length: 19.5 in.
Rated Output at 20% Duty Cycle: 250 Amps
Wire Feed Speed Range: 40 IPM - 770 IPM
Input Voltage: 115 V / 230 V
Amperage Input at Rated Output (60 Hz) - KVA: 230 V: 150 Amps at 23 VDC
Application/Use: Maintenance/repair, Auto body, Farm/ranch, Construction, Boat/marine, Metal art
Maximum Open Circuit Voltage: 34 VDC
Solid Wire and/or Flux Cored: Solid Wire and Flux Cored
Compatible Metal: Stainless Steel / Steel / Aluminum
Product Height: 12.375 in.
Output Amperage Range: 115 V: 90 Amp at 19 VDC / 230 V: 150 Amp at 23 VDC
Special Feature(s): Spool gun ready
Part Number: 500553
Ground Cord Length: 10 ft.
Brand: Hobart
Current Range: DC
Amperage Input at Rated Output (60 Hz) - 115V: 115 V: 90 Amps at 19 VDC
Manufacturer Part Number 500553
Hobart Handler 210MVP MIG Welder, 210A, 115/230V is rated 4.9 out of 5 by 129.
Rated 5 out of 5 by from Great features, easy setup, good value Nice machine with good range of features. Sets up fast and does not over complicate with with unneeded features. Welds 20 ga to 3/8" steel.
Date published: 2019-07-30
Rated 5 out of 5 by from * sUpEr MaChInE ! I have run the **** out of my welder ! I ran it on full throttle while rebuilding a tractor bucket. The thermal switch shut it down (as to be expected because I was abusing the **** out of it), and after the cool down, it fired right back up. I have run many miles of wire through it and it keeps giving it to me ! Great welder !
Date published: 2019-06-11
Rated 5 out of 5 by from Easy to use Hobart Handler 210MVP Mig Welder The welder is amazing. If you are an experience welder or just getting started, this machine is easy to use. I'm glad I purchased it.
Date published: 2019-06-06
Rated 5 out of 5 by from Ready to go! Pretty straightforward instructions, easy to get started!
Date published: 2019-06-01
  • y_2019, m_8, d_5, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_23, tr_106
  • loc_en_US, sid_101581099, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 4ms
  • REVIEWS, PRODUCT

Can this welder be setup to weld stainless

Asked by: Torq5658
With the proper wire and gas this unit can weld stainless steel.
Answered by: Hobart Specialist
Date published: 2019-02-05

is spool of wire at the trigger

Asked by: Al W III
No, the spool of wire does not sit at the trigger.
Answered by: DanielB
Date published: 2019-07-31

I bought this about a year ago, great machine, it works great for what i use it for! My question is do they make a longer gun/cable other than the 10' that comes with it? this is the only complaint I have is that the 10' cable is sometimes just not enoug.

Asked by: bcollins1128
Hobart does not make a longer gun for these units. 10' is the maximum recommended gun length for the Handler models.
Answered by: Hobart Specialist
Date published: 2019-01-04

Will this welder run dual shield flux core wire?

Asked by: Hogugly
The unit has not been tested with any dual shield wires. If you have a specific wire in mind please contact Hobart Technical Support at 1-800-332-3281. The wire specs will be compared to the units output specs to see if it can be run on the 210MVP.
Answered by: Hobart Specialist
Date published: 2019-07-31

Will this work for working on my 72 c10 pickup body? Need to weld cab corners and rocker panels

Asked by: C10 junkie
Yes it will. If converted to solid wire and gas it will perform great for your application. Welding thinner sheet metal with flux cored gasless wire tends to be more difficult but can be done as well with this unit.
Answered by: Hobart Specialist
Date published: 2019-07-31

Does this unit include the spool gun and mig gun

Asked by: Lots111
The Spoolrunner 100 spool gun is not included in the package.
Answered by: Hobart Specialist
Date published: 2019-03-22

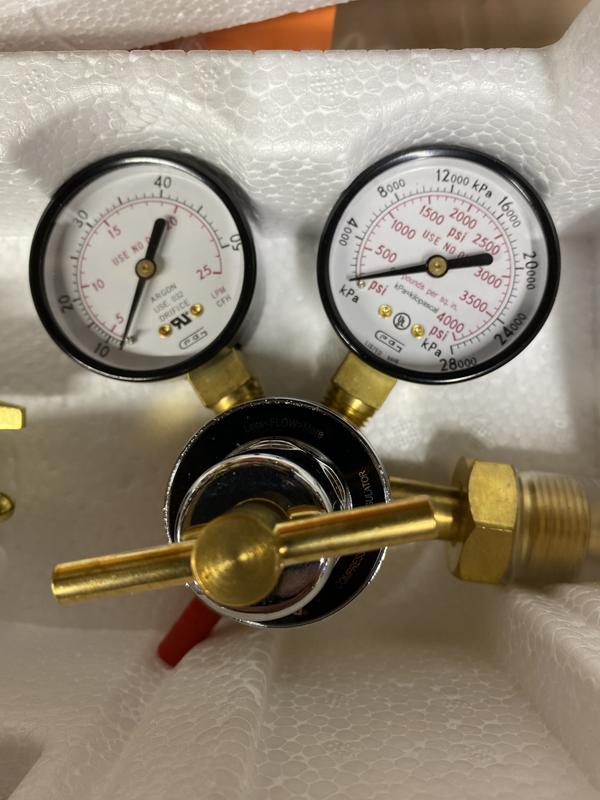

How long does a 20 ft³ argon CO 2 ,tank last.

Asked by: Bruster45
At a 20 CFH flow setting it will last 1 hour of trigger on time.
Answered by: Hobart Specialist
Date published: 2019-03-22

my plan is be able to use this unit out in the field also with the Hobart plasma cutter what size generator would i need that could handle this welder and the plasma cutter

Asked by: texas fireman
To operate this unit on 230 volt input you would need a generator capable of providing 35 amps of 230 volt power(8000 watts) continuous.
Answered by: Hobart Specialist
Date published: 2019-01-04
