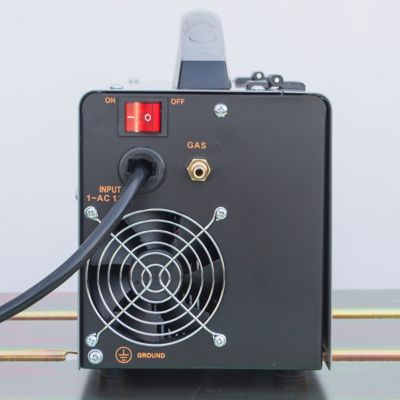

HIT Welding 120V/80A Wire Feed MIG Welder Kit
Limited Time Deal
Item # 124805599
Sale
Save(20%)
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Sale
Save(20%)
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The HIT 80 Amp Wire Feed 120V MIG Welder Kit is versatile, compact and powerful. Easy to use and easy to carry, this MIG Welder is ideal for jobs big and small. Tackle automotive and industrial projects at home, on the farm, or at the shop. The Welder utilizes a 120V plug, so it can be used at any standard outlet, for convenience and versatility. Weld carbon steel, stainless steel, aluminum, and more with solid and flux cored wire with our without shielding gas. Equipped with advanced thermal overload protection for safe operation. The HIT 80 Amp Wire Feed 120V MIG Welder Kit includes a welding cable and electrode holder, MIG torch, grounding cable with earth clamp, wire spool, welding face shield, and clipping hammer with brush.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 120 volt power supply can be plugged into any standard outlet
- Advanced overload and thermal protection with indicator light for safety
- Welds stainless steel, aluminum, carbon steel, and more between 1.2mm-3.0mm thick
- Utilizes solid and flux cored wire with or without shielding gas
- Single knob controls the wire feed, output current and output voltage
- Wire feed with maximum speed 2 to 15 m/min
- Compatible with electrode sizes 1/16 to 5/64 inches (MMA 1-6.2.0 MM) and wire diameter MIG .030 to .035 inches
- Plugs into standard 120-volt outlet, single phase, 60 Hz,, 62 volt no load
- Variable amps output MIG 30 to 80 (MMA 20-70A) with MIG duty cycle of 30% at 80A (MMA 70A@30%)
- Synergic output current mode (output current/output volt/wire speed 3-in-1 knob) with steeples adjustment

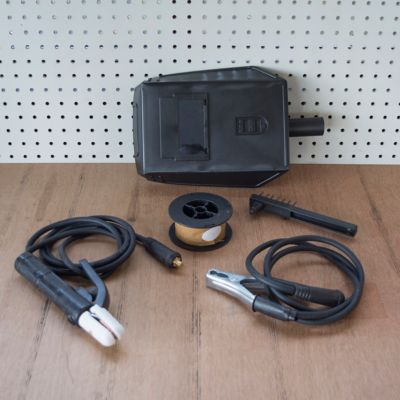

- Kit includes 6.5 ft. power cord, 5 ft. Earth ground cable with clamp, 6.25 ft. MIG Torch and cable, 6.5 ft. Welding cable with electrode holder, wire spool, face shield, and clipping hammer with brush
| Brand | HIT Welding |
|---|---|
| Country of Origin | Imported |
| Compatible Metal | Carbon Steel |
| Compatible Wire Types | Flux-Cored |
| Features | For Small To Medium Sized Welding Jobs Around The Home, Garage, Or Farm |
| Ground Cord Length | 5 ft. |
| Gun Length | 12 in. |
| Input Frequency | 60 Hz |
| Maximum Open Circuit Voltage | 62V |
| Maximum Welding Amperage | 80A |
| Maximum Wire Diameter | 0.35 in. |
| Maximum Wire Feed Speed | 215m/min. |
| Maximum Material Thickness | 3mm |
| Minimum Amperage Output | 20A |
| Minimum Generator Power Required | 120V - 60 Hz |
| Power Cord Length | 6.5 ft. |
| Product Height | 10 in. |
| Product Length | 14 in. |
| Product Weight | 19 lb. |
| Product Width | 6.25 in. |
| Rated Output at 20Percentage Duty Cycle | 90A |
| Spool Size Capacity | 4 in. |
| Warranty | 90 Day Limited |
| Welder Input Voltage | 120V |
| Welding Applications | Flux-Core Welding (FCAW), MIG Welding (GMAW) |
| Phase | Single Phase |
| Polarity | AC |
| Manufacturer Part Number | HIT140 |
Q: Does this welder use gas
a year ago- A: Hi Neighbor! No, 120 volt power supply can be plugged into any standard outlet.a year agoHelpful?
Q: dose this come with the regulator for the gas"
a year ago- A: Hi Neighbor! This product comes with a current regulator.a year agoHelpful?
Q: Can you use a spool gun with this welder?
a year ago- A: Hi Neighbor! The gun on this welder is intended for this product.a year agoHelpful?
Q: I'm trying to understand if this ships with everything I need to start welding. Or do I need to buy additional accessories?
7 years ago- A: A spool gun is not included with the unit. Other than that, the unit includes everything you will need.7 years agoHelpful?
Q&As
Q: Does this welder use gas
a year ago- A: Hi Neighbor! No, 120 volt power supply can be plugged into any standard outlet.a year agoHelpful?
Q: dose this come with the regulator for the gas"
a year ago- A: Hi Neighbor! This product comes with a current regulator.a year agoHelpful?
Q: Can you use a spool gun with this welder?
a year ago- A: Hi Neighbor! The gun on this welder is intended for this product.a year agoHelpful?
Q: I'm trying to understand if this ships with everything I need to start welding. Or do I need to buy additional accessories?
7 years ago- A: A spool gun is not included with the unit. Other than that, the unit includes everything you will need.7 years agoHelpful?
