Hobart 50 ft. Ground and Lead Welding Cable Set
Item # 103178099
Buy a Welder and Get 15% off Welder accessories.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Item # 103178099
Buy a Welder and Get 15% off Welder accessories.
Shopping at
Grassland (franklin) TN
Delivery to
37027
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

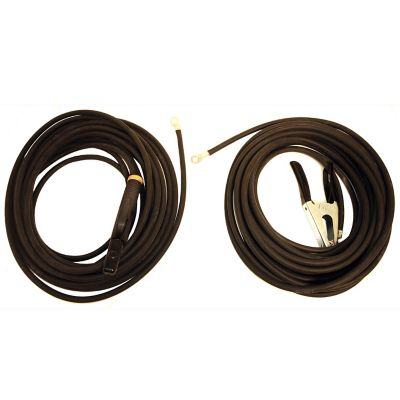

The Hobart Ground and Lead Welding Cable Set includes a 50 ft. ground cable with a 300 A ground clamp and a 50 ft. electrode cable assembly with a 200 A electrode holder. The 1/2 in. eyelet lugs on the cables in the welding cable set are crimped for an easy connection. This ground and lead welding cable set is compatible with welder and generators with 1/2 in. stud connections.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Cable set includes one 50 ft. ground cable with a 300 A ground clamp and one 50 ft. electrode cable assembly with 200 A electrode holder
- Both cables in the ground and lead welding cable set include 1/2 in. eyelet lugs crimped for an easy connection
- 100% duty cycle
- Cable set is compatible with welder and generators with 1/2 in. stud connections
- Cable in the welding cable set has a 2 gauge
| Brand | Hobart |
|---|---|
| Country of Origin | Made in USA |
| Clamp Type | Ground clamp |
| Features | #2 welding cable set comes complete with 50 ft. lead and 50 ft. work cable. |
| Insulation Material | None |
| Maximum Temperature Rating | 105 deg. C |
| Package Quantity | 2 |
| Primary Color | Brown |
| Product Diameter | 0.5 in. |
| Product Length | 50 ft. |
| Product Weight | 50 lb. |
| Voltage Rating | 200 Amp |
| Warranty | Hobart |
| Wire Size | 2/0 |
| Manufacturer Part Number | 195195 |
Q: Will this work with a miller wildcat 200 ?
2 months ago- A: This cable set is designed to connect to welders with 1/2-inch stud connections and is rated for up to 200 amps. It will work with a Miller Wildcat 200 if the welder uses 1/2-inch output studs and falls within the cable’s amperage rating. Checking the welder’s output stud size is recommended to confirm compatibility.2 months agoHelpful?
Q: Is this 50ft lead and 50ft ground
3 months ago- A: Yes, the Hobart 50 ft. Ground and Lead Welding Cable Set (Part #195195) consists of two individual cables that are each 50 feet long.3 months agoHelpful?
Q: Will this work for the Hobart Champion 225amp welder 11watt generator? Thanks
10 months ago- A: Hello, thank you for your question. Yes, it will work.10 months agoHelpful?
Q: Will these work for the champion 4500 welder?
Anonymousa year ago- A: Hello, thank you for your question. Yes, these are great cables for the Champion 4500 welder.a year agoHelpful?
Q: Do these work with the Hobart 145 welder
2 years ago- A: Hi Doodle, According to the vendor: Yes, these will work with the champion 145 – Welding Leads.2 years agoHelpful?
Q: Is cable gauge #2?
3 years ago- A: Hi, Yes, this cable is a 2 Gauge Welding Cable Set3 years agoHelpful?
