Lincoln Electric Weld Pak 180i MP DV
Item # 247231099
Buy a Welder and Get 15% off Welder accessories.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Item # 247231099
Buy a Welder and Get 15% off Welder accessories.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

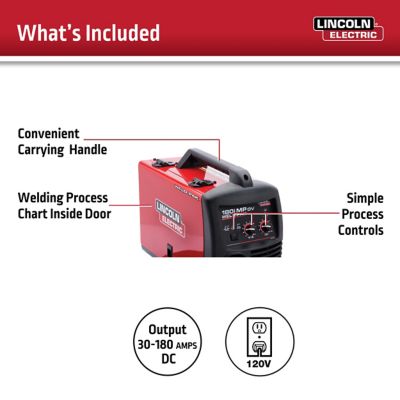

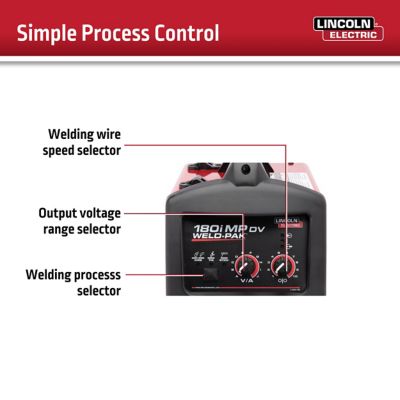

120 or 230 VOLT AC INPUT COMPACT MULTI-PROCESS WELDER. 180i MP DV welding machine is a lightweight and portable welder that connects to 120-Volt or 230-Volt power. This machine is an excellent choice for MIG, Stick, Flux-Cored and DC TIG welding. The intuitive user interface, easy setup and full list of accessories permits welding in no-time. The simple two knob control allows easy set up between the welding process. With the ability to switch to multiple processes you'll be ready to tackle any project. The Lincoln Electric WELD PAK 180i MP DV is an excellent choice!
Looking for more information on welders? Check out our guide on welding in the product documents section.
- Fully adjustable drive system reduces the chance of wire tangling and crushing
- Brass to brass gun connection enhances conductivity
- MIG - Wide 30-180 amp welding output for MIG, FCAW and Spool Gun allows for welding 24 gauge to 3/8" welding material
- TIG - Torch and Foot pedal sold separately; Wide 10-165 amp range permits welding on thin and thick steel and stainless

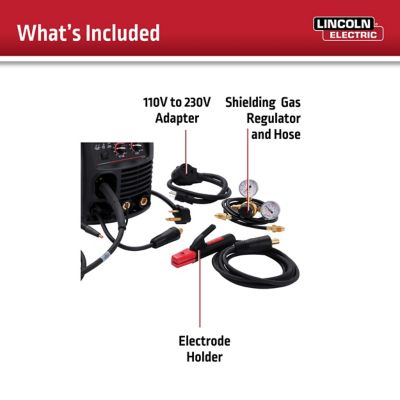

- Stick - Smooth arc starts prevent stick. Heavy duty electrode holder and cable included
- Perfect for the shop, farm, home or auto body shops
| Brand | Lincoln Electric |
|---|---|
| Country of Origin | Imported |
| Clamp Cable Length | 10 ft. |
| Compatible Metal | Aluminum, Steel |
| Compatible Wire Types | Solid |
| Features | WELD PAK 180i MP DV is light weight and portable welder that connects to 120 volt or 230 volt power and is an excellent choice for MIG, STICK, Spool Gun, Flux-Cored or TIG welding. |
| Ground Cord Length | 10 ft. |
| Gun Length | 10 ft. |
| Input Frequency | 60 Hz |
| Maximum Open Circuit Voltage | 26.4V |
| Maximum Welding Amperage | 180A |
| Maximum Wire Diameter | 0.035 in. |
| Maximum Wire Feed Speed | 500 ipm |
| Maximum Material Thickness | 0.3125 in. |
| Minimum Generator Power Required | 120V |
| Power Cord Length | 10 ft. |
| Product Height | 13.6 in. |
| Product Length | 18.1 in. |
| Product Weight | 34.5 in. |
| Product Width | 8.9 in. |
| Rated Output at 20Percentage Duty Cycle | 165A |
| Spool Size Capacity | 8 in. |
| Torch Length | 10 ft. |
| Warranty | 3 Years |
| Welder Input Voltage | 230V, 120V |
| Welding Applications | Flux-Core Welding (FCAW), Stick Welding (SMAW), TIG Welding (GTAW), MIG Welding (GMAW) |
| Phase | Single Phase |
| Polarity | DC |
| Work Cable Length | 10 ft. |
| Manufacturer Part Number | K5257-1 |
Q: How much does this machine weigh?
21 days ago- A: The Weld-Pak 180i MP DV weighs 34.5lbs.21 days agoHelpful?
Q: What size roll of wire does it use ?
a year ago- A: The machine can support 4-inch and 8-inch spools of wire for MIG and FCAW welding.a year agoHelpful?
Q: Will this work off of a generator?
a year ago- A: Yes, this welder with will run off a generator.a year agoHelpful?
Q: can you weld aluminum with this welder
a year ago- A: Hi steven This machine is an excellent choice for MIG, Stick, Flux-Cored and DC TIG weldinga year agoHelpful?
Q&As
Q: How much does this machine weigh?
21 days ago- A: The Weld-Pak 180i MP DV weighs 34.5lbs.21 days agoHelpful?
Q: What size roll of wire does it use ?
a year ago- A: The machine can support 4-inch and 8-inch spools of wire for MIG and FCAW welding.a year agoHelpful?
Q: Will this work off of a generator?
a year ago- A: Yes, this welder with will run off a generator.a year agoHelpful?
Q: can you weld aluminum with this welder
a year ago- A: Hi steven This machine is an excellent choice for MIG, Stick, Flux-Cored and DC TIG weldinga year agoHelpful?
