Grizzly T28798-1-1/2 HP Metal Dust Collector

4.3

(4 Reviews)

|

Item # 229419699

$1,075.00See Price at Checkout

Grizzly T28798-1-1/2 HP Metal Dust Collector

4.34 Reviews

Item # 229419699

Image showing T28798-1-1/2 HP Metal Dust Collector
Image showing T28798-1-1/2 HP Metal Dust Collector
Image showing T28798-1-1/2 HP Metal Dust Collector
Image showing T28798-1-1/2 HP Metal Dust Collector
Image showing T28798-1-1/2 HP Metal Dust Collector
Image showing T28798-1-1/2 HP Metal Dust Collector
$1075.00See Price at Checkout
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Grizzly T28798-1-1/2 HP Metal Dust Collector

4.34 Reviews

Item # 229419699

Image showing T28798-1-1/2 HP Metal Dust Collector
Image showing T28798-1-1/2 HP Metal Dust Collector
Image showing T28798-1-1/2 HP Metal Dust Collector
Image showing T28798-1-1/2 HP Metal Dust Collector
Image showing T28798-1-1/2 HP Metal Dust Collector
Image showing T28798-1-1/2 HP Metal Dust Collector
$1075.00See Price at Checkout

This item is available online only

Delivering to

37027

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

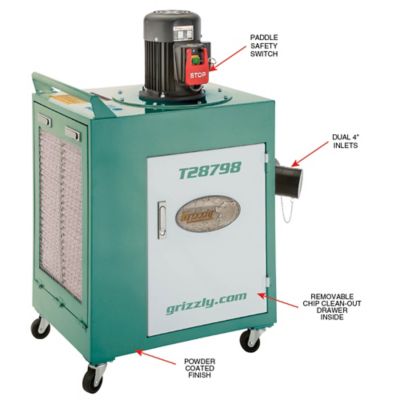

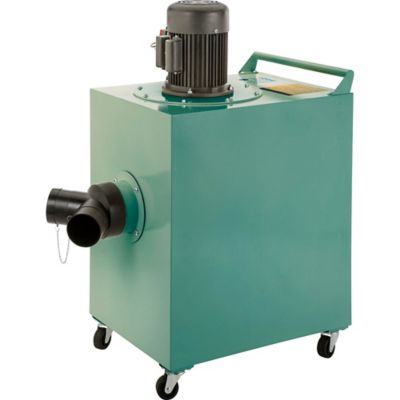

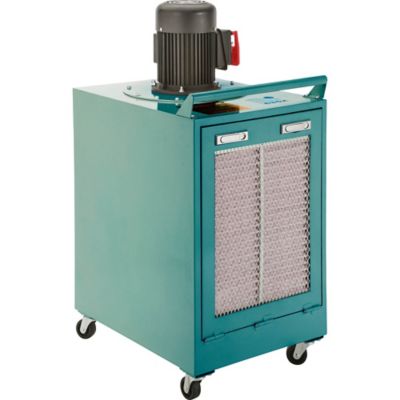

Keep your fabrication shop clean while reducing levels of harmful fumes. The Grizzly T28798 Metal Dust Collector features a multi-stage filtration system with three 15-1/4" x 19-1/4" filters with 30, 5, and 1-micron ratings.

Operate up to two machines at a time thanks to the 650 CFM of airflow capacity with 10.8" of static pressure through the dual 4" dust ports.

Large grinding dust and cutting chips are deposited in the removeable clean-out drawer.

Metal dust collectors are specifically designed to help reduce airborne dust levels in the shop.

When properly used and maintained, a metal dust collector will help keep your shop cleaner and reduce the risk of dust inhalation or dust related fire/explosion.

Not for wood dust collection.

  • Motor: 1-1/2 HP, 240V, single phase, 9A
  • Airflow capacity: 650 CFM
  • Maximum static pressure (at 0 CFM): 10.8"
  • Filter size: 19-1/4" x 15-1/4"
  • 1st stage filter: 30-microns
  • 2nd stage filter: 5-microns
  • 3rd stage filter: 1-micron
  • Impeller size: 12-3/4"
  • Main inlet size: 6"
  • Number of adapter inlets: 2
  • Adapter inlet size: 4"
  • Sound rating: 82 dB
  • Maximum material collection capacity: 1.22 cu.ft.
  • 3-stage filter system: stainless steel, active carbon, and pleated micro filter
  • Aluminum impeller
  • Toggle ON/OFF switch
  • Dual 4" inlets for two machines
  • Caster wheels for easy mobility
  • Removable clean out drawer
  • Overall size: 20" W x 28-1/2" D x 43" H
  • Approximate shipping weight: 199 lbs.
