Shop Fox W1685-1-1/2 HP Dust Collector

Shop all Shop Fox

Item # 229422199

$689.99

Neighbor’s Club Members earn points with purchases.

Shop all Shop Fox

Shop Fox W1685-1-1/2 HP Dust Collector

Item # 229422199

$689.99

$58/mo.^† suggested payments with 12 Months Financing or earn $34 in Rewards⁺ on this purchase.

This item is available online only

Delivery to

Free standard delivery on online footwear & Clothing purchases of $49 and over.

Neighbor’s Club Members earn points with purchases.

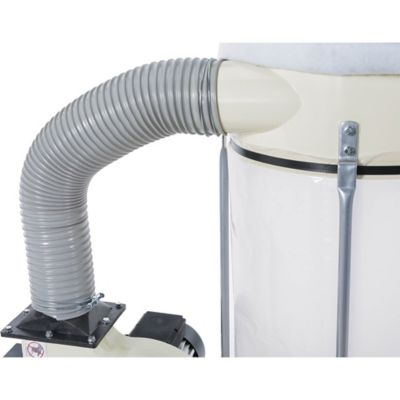

The W1685 is a powerful, yet portable dust collector with large collection capacity for a 1-1/2 HP model. This dust collector has air suction capacity of 1280 CFM and has a max static pressure of 10.1 inches. Static pressure is produced by the 12" balanced steel, radial fin impeller to move the wood chips into the collector. It's perfect for collecting wood, dust, and chips from sanders, router tables, jobsite table saws, benchtop jointers and planers, and other woodworking machines. The upper 2.5-micron bag (D4572) and lower plastic bags (D4573-5pk) can be purchased separately for any collectors that do not include them. The complete and easy-to-read W1685 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.

Motor: 1-1/2 HP, 110V, single phase, 16A
Air suction capacity: 1280 CFM
Static pressure: 10.1"
Intake hole size: 6"
Bag sizes (diameter x length): 19" x 33"
Bag filtration: 2.5-Micron
Collection capacity: 40 Gallons

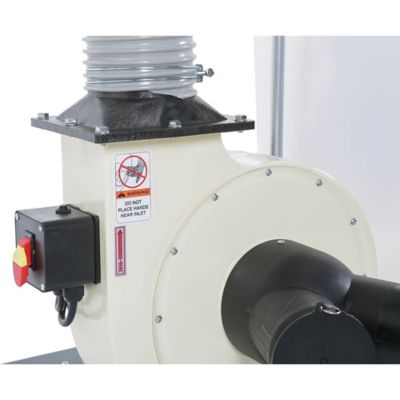

Impeller: 12" Balanced steel, radial fin
Powder coated finish
Steel base with casters

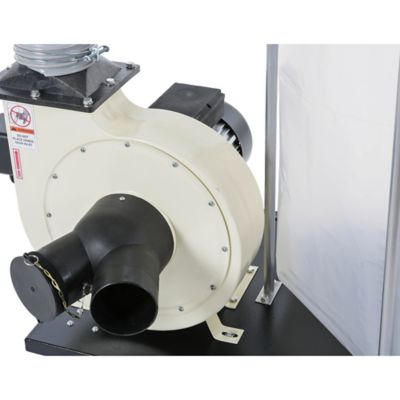

6" inlet has a removable "Y" fitting with two 4" openings
Overall dimensions: 31-1/2" W x 21-1/4" L x 78" H
Approximate shipping weight: 94 lbs.

Brand	Shop Fox
Country of Origin	Imported
Amperage	16 A
Compatibility	See manual
Decibel Rating	0 N/A
Phase	Single Phase
Features	No Additional Features
Filter Efficiency	0 N/A
Filtration Material	Steel
Horsepower	1.5 hp
Hose Diameter	6 in.
Hose Length	0 in.
Maximum Airflow Rate	1240 CFM
Operating Velocity	1240 CFM
Product Height	78 in.
Product Length	21.25 in.
Product Weight	90 lb.
Product Width	33.5 in.
Warranty	2
Manufacturer Part Number	W1685

Q&As

No questions have been asked about this product.

Items You May Like

Reviews

Rating Snapshot

Select a row below to filter reviews.

5 reviews with 5 stars.

4 reviews with 4 stars.

0 reviews with 3 stars.

0 reviews with 2 stars.

0 reviews with 1 star.

Overall Rating

4.6

1 out of 1 (100%) reviewers recommend this product

Review this Product

Select to rate the item with 1 star. This action will open submission form.

Select to rate the item with 2 stars. This action will open submission form.

Select to rate the item with 3 stars. This action will open submission form.

Select to rate the item with 4 stars. This action will open submission form.

Select to rate the item with 5 stars. This action will open submission form.

Adding a review will require a valid email for verification

satisfaction
in-store
powerful
purchase
setup
small

1 to 4 of 9 Reviews .

1 – 4 of 9 Reviews

Popsy

Fort Worth Texas

Review 1

4 out of 5 stars.

Need 3 Hands

2 years ago

It's a really good dust collector for a small wood shop like I have. I only have one substantial complaint. Changing out the dust collector bag can't be done without either having someone to hold it in place while it's being secured with the strap or like I did, use painters tape to secure it. It's quite annoying. Outside of that, it's a powerful dust collecting system that can be used on all of my carpentry saws and planner.

Yes, I recommend this product.

Originally posted on grizzly.com

Response from grizzly.com:

2 years ago

Customer Experience Team

We're pleased to hear that the dust collector has been a valuable addition to your wood shop. We understand that the process you described can be frustrating and inconvenient. Your insight is valuable to us as we continuously work to improve our products. Thank you for sharing your feedback!

Anonymous

Review 1

4 out of 5 stars.

Good Product; Difficult Assembly

4 years ago

The product seems to work well but it was overly difficult to assemble. I had to drill out each of the holes for the wheels and the hardware included was either not at all adequate for this machine or intended for something else. I had to buy virtually all of the nuts and bolts for this machine and those provided were not adequate for the assembly.

Originally posted on grizzly.com

Anonymous

Review 1

5 out of 5 stars.

Great product!

4 years ago

I'm very pleased with my purchase. The unit works great!!

Originally posted on grizzly.com

Anonymous

Review 1

4 out of 5 stars.

Great product, difficult shipping

4 years ago

I like the dust collector, but dealing with a freight forwording company is so miserable.

Originally posted on grizzly.com
