Grizzly G0527-18 in. 5 HP Wide-Belt Sander
Item # 2293945
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivering to
37027
Neighbor’s Club Members earn points with purchases.

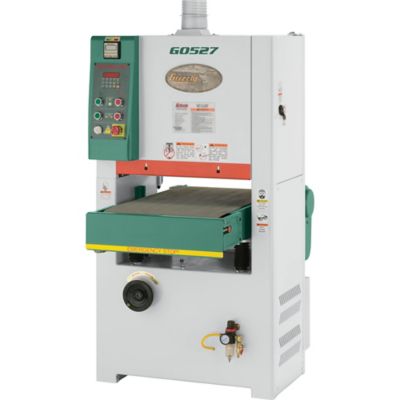

A smaller and more affordable wide-belt sander. The most notable features of the G0527 18" 5 HP Wide-Belt Sander are the digital control panel and the four rubber pressure rollers that allow unmatched control and precision when sanding workpieces as small as 9" long x 1/8" thick.
This sander is equipped with three separate motors for powering the sanding drum, the conveyor belt, and the table height.
The G0527 includes 100- and 150-grit sanding belts. The 60-grit H5222 and 150-grit H5226 sanding belts are available.
An outstanding list of features at an unbelievably low introductory price make this one of the best deals on the wide-belt sander market!The G0527 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.
Parts for the sander may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
SPECIFICATIONS: FEATURES:- Digital control panel
- Digital amp meter
- Disc brake for emergency stops
- Dust proof photo electric eye
- Pneumatic belt tensioning
- Four rubber pressure rollers
- 4" dust port
- Digital amp meter
- 1-year limited warranty
Need help?
We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Motor: 5 HP, 220V, single-phase, 30A
- Conveyor feed motor: 1/2 HP, 7A
- Elevation motor: 1/3 HP, 3A
- Maximum board width: 17-1/2"
- Maximum board thickness: 6"
- Minimum board length: 9"
- Minimum board thickness: 1/8"
- Conveyor speed: 16, 23, 33 FPM
- Sanding belt speed: 3500 FPM
- Sanding belt size: 18-1/2" x 48"
- Sanding belt oscillations: 1/2-5/8"
- Air requirement: 57-75 PSI, 2 CFM
- Overall dimensions: 37" W x 30" L x 57" H
- Approximate shipping weight: 1008 lbs.
