Fimco 40 gal. 4 Nozzle 3 pt. Hitch Sprayer
Limited Time Deal
Fimco 40 gal. 4 Nozzle 3 pt. Hitch Sprayer
Item # 135429599
Stocked & Ready
$54999
Sale
Save(21%)
or
or
Add this item to unlock free delivery!
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Limited Time Deal
Fimco 40 gal. 4 Nozzle 3 pt. Hitch Sprayer
Item # 135429599
Stocked & Ready
$54999
Sale
Save(21%)
or
or
$46/mo.† suggested payments with 12 Months Financing or earn $27 in Rewards+ on this purchase.
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
Pickup Nearby at FRANKLIN TN(6.7) miles Free
Ship to store at Grassland (franklin) TN
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.

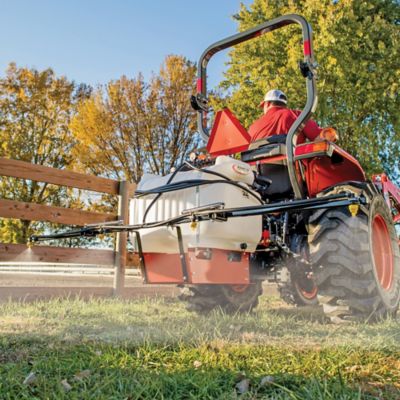

The Fimco 40 gal. 3-Point 4-Nozzle Hitch Sprayer is an agriculture sprayer that includes a chemical-resistant hose and provides up to 30 ft. of spraying diameter. With a hose that conveniently wraps around the 3-point hitch sprayer for easy storage, taking your equipment on-the-go- has never been easier. This hitch sprayer has a 4-nozzle spray pattern that delivers 120 in. of total coverage.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.

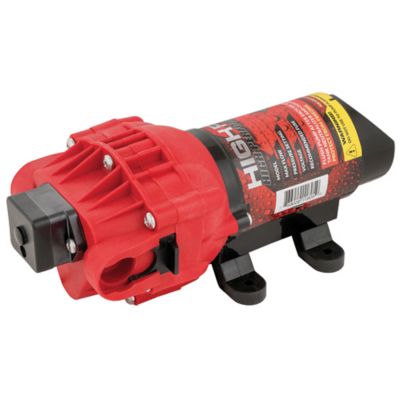

- 2.4 GPM to 60 PSI automatic demand diaphragm pump
- When combined with a high performance 2.4 GPM pump, output is enhanced and delivers spray pattern up to 40 ft. horizontal and 25 ft. vertical
- Includes a chemical-resistant hose that provides up to 30 ft. of spraying diameter
- Our premium air inducted spray tips reduce chemical drift
- 4-nozzle spray pattern delivers 120 in. of total coverage
- Use protection on both our 8 ft. lead wire and pump
- Includes high performance 12V hitch sprayer pumps

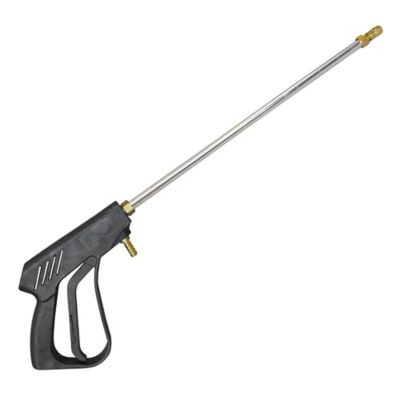

- Adjustable spray tip for convenient use
- Hose measures 15 ft. of 3/8 in.
- Hose conveniently wraps around the sprayer for easy storage
- Holds up to 40 gal. for heavy-duty use
- Hitch sprayer is made in the U.S.A.
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 10 ft |
| Boom Nozzle Count | 4 |
| Boom Style | Folding Boom |
| Chemical Compatibility | Herbicide, Pesticide, Weed Killer, Repellents, Fertilizer, Repellent, Insecticide, Fungicide |
| Features | Chemical Resistant |
| Hose Diameter | 3/8 in. |
| Hose Length | 15 ft. |
| Maximum Flow Rate | 2.4 GPM |
| Maximum Operating Pressure | 60 PSI |
| Mounting Type | Pin |
| Power Type | 12 Volt |
| Product Height | 23 in. |
| Product Length | 39 in. |
| Product Weight | 87 lb. |
| Product Width | 23 in. |
| Pump Type | Diaphragm |
| Boom Width | 7.5 ft |
| Tank Capacity | 45 gal. |
| Spray Method | Boom Spraying (Precision), Spot Spraying |
| Tank Material | Polyethylene |
| Warranty | 1 Year Sprayer; 2 Year Pump |
| Manufacturer Part Number | 5302941 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 95 Questions
Newest questions
Q: Will this work with Kubota 23X80
6 days ago1 Answer
- A: Thanks for reaching out! While we aren't tractor fitment experts and can't confirm specific tractor models, this Fimco 40-gallon unit is designed for a standard Category 1 3-point hitch setup. As long as your Kubota has a Category 1 3-point hitch and can handle the weight (40 gallons of liquid weighs roughly 335 lbs, plus the weight of the frame), it should connect as expected. We always recommend checking your tractor’s owner manual to verify its hitch category and rear lift capacity!5 days agoHelpful?
Q: Can you spray brime for dirt road in this?
11 days ago1 Answer
- A: Thank you for reaching out! If you are referring to brine (calcium chloride or saltwater used for dust control) or a heavy lime slurry: Salt Brine (Dust Control): Saltwater solutions can be sprayed, but salt is highly corrosive. You must thoroughly flush the entire tank, pump, and boom plumbing with clean fresh water immediately after every use to prevent severe corrosion on internal pump parts and hardware. Heavy Slurries / Thick Mixtures: Diaphragm pumps are designed for water-based agricultural liquids. Viscous, thick slurries or undissolved powders will clog the pump valves and nozzles quickly.10 days agoHelpful?
Q: What’s the part number for the 40 gal tank?
25 days ago1 Answer
- A: The part number for the 40-gallon tank on this unit is 5169296. You can find this along with a full breakdown of all replacement parts for your sprayer in the owner's manual under the parts list section. Replacement parts can be ordered directly through FIMCO, at 800-831-0027, or requested through your local Tractor Supply.24 days agoHelpful?
Q: Hello, Can you use this sprayer to apply agritec nitromax?
2 months ago1 Answer
- A: Yes, this sprayer is capable of applying most water-based liquid fertilizers like Agritec Nitro-Maxx. However, to ensure the longevity of your pump, we strongly recommend checking the product label for any added surfactants or petroleum distillates. Our pumps are designed for water-based applications, and ingredients like these can potentially damage the internal seals. If the product contains these additives, we advise against using it in this sprayer. If you do proceed, please be sure to thoroughly flush the entire system—tank, lines, and nozzles—with neutralizer immediately after every use. Regular flushing is the best way to prevent residue buildup and keep your pump performing reliably.2 months agoHelpful?
Q: What cat size is the three point?
2 months ago1 Answer
- A: This sprayer is designed to fit a Category 1, 3-point hitch. Please note that when the 40-gallon tank is fully filled, the unit will weigh approximately 430 lbs. We always recommend checking your tractor's lift capacity and load rating to ensure it is rated for this weight before operation.2 months agoHelpful?
Q: is this a catagory 1 hitch
2 months ago1 Answer
- AI-generated, Human-approvedA: Yes, this sprayer is a Category 1 attachment. It is compatible with standard Quick Hitches, though a Category 1 bushing kit may be required to ensure the hitch hooks seat securely on the lift pins.2 months agoHelpful?
Q: Can you tell me the total box or crate size? (Fimco 40 gal. 4 Nozzle 3 pt. Hitch Sprayer)(Item # 1354295). This is pick up information.
3 months ago1 Answer
- A: Approx. Dimensions: Weight 83 Item Dim. Length 40 Item Dim. Width 24 Item Dim. Height 243 months agoHelpful?
Q: Can I spray remedy and diesel mix
3 months ago1 Answer
- A: Thank you for reaching out with your question. We do not recommend using a diesel and Remedy mix with this specific sprayer. The pump and seals on this unit are designed for water-based solutions. Diesel fuel is a petroleum distillate that can quickly degrade standard rubber seals and gaskets, leading to pump failure or leaks. Additionally, diesel can be difficult to flush completely from the tank and lines, which may contaminate future applications. For diesel-based mixtures, we recommend using a Fimco Pro Series sprayer, as the pumps is a professional grade pump designed to handle solutions like this.3 months agoHelpful?
Q: Will this work with a quick hitch on my Kubota L3902 tractor?
4 months ago1 Answer
- A: Hi Doug! The Fimco 40-Gallon 3-Point Sprayer is a Category 1 attachment. It is compatible with standard Quick Hitches, though you may need a Category 1 bushing kit to ensure the hitch hooks seat securely on the sprayer’s lift pins.3 months agoHelpful?
Q: Do they make a longer power cord or do I need a another battery
4 months ago1 Answer
- A: We do not have a longer lead wire, but we do offer a 5' extension wire #5273212, please contact our customer service team at 800-831-0027 and they'll be happy to assist you.4 months agoHelpful?
1 - 10 of 95 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 95 Questions
Newest questions
Q: Will this work with Kubota 23X80
6 days ago1 Answer
- A: Thanks for reaching out! While we aren't tractor fitment experts and can't confirm specific tractor models, this Fimco 40-gallon unit is designed for a standard Category 1 3-point hitch setup. As long as your Kubota has a Category 1 3-point hitch and can handle the weight (40 gallons of liquid weighs roughly 335 lbs, plus the weight of the frame), it should connect as expected. We always recommend checking your tractor’s owner manual to verify its hitch category and rear lift capacity!5 days agoHelpful?
Q: Can you spray brime for dirt road in this?
11 days ago1 Answer
- A: Thank you for reaching out! If you are referring to brine (calcium chloride or saltwater used for dust control) or a heavy lime slurry: Salt Brine (Dust Control): Saltwater solutions can be sprayed, but salt is highly corrosive. You must thoroughly flush the entire tank, pump, and boom plumbing with clean fresh water immediately after every use to prevent severe corrosion on internal pump parts and hardware. Heavy Slurries / Thick Mixtures: Diaphragm pumps are designed for water-based agricultural liquids. Viscous, thick slurries or undissolved powders will clog the pump valves and nozzles quickly.10 days agoHelpful?
Q: What’s the part number for the 40 gal tank?
25 days ago1 Answer
- A: The part number for the 40-gallon tank on this unit is 5169296. You can find this along with a full breakdown of all replacement parts for your sprayer in the owner's manual under the parts list section. Replacement parts can be ordered directly through FIMCO, at 800-831-0027, or requested through your local Tractor Supply.24 days agoHelpful?
Q: Hello, Can you use this sprayer to apply agritec nitromax?
2 months ago1 Answer
- A: Yes, this sprayer is capable of applying most water-based liquid fertilizers like Agritec Nitro-Maxx. However, to ensure the longevity of your pump, we strongly recommend checking the product label for any added surfactants or petroleum distillates. Our pumps are designed for water-based applications, and ingredients like these can potentially damage the internal seals. If the product contains these additives, we advise against using it in this sprayer. If you do proceed, please be sure to thoroughly flush the entire system—tank, lines, and nozzles—with neutralizer immediately after every use. Regular flushing is the best way to prevent residue buildup and keep your pump performing reliably.2 months agoHelpful?
Q: What cat size is the three point?
2 months ago1 Answer
- A: This sprayer is designed to fit a Category 1, 3-point hitch. Please note that when the 40-gallon tank is fully filled, the unit will weigh approximately 430 lbs. We always recommend checking your tractor's lift capacity and load rating to ensure it is rated for this weight before operation.2 months agoHelpful?
Q: is this a catagory 1 hitch
2 months ago1 Answer
- AI-generated, Human-approvedA: Yes, this sprayer is a Category 1 attachment. It is compatible with standard Quick Hitches, though a Category 1 bushing kit may be required to ensure the hitch hooks seat securely on the lift pins.2 months agoHelpful?
Q: Can you tell me the total box or crate size? (Fimco 40 gal. 4 Nozzle 3 pt. Hitch Sprayer)(Item # 1354295). This is pick up information.
3 months ago1 Answer
- A: Approx. Dimensions: Weight 83 Item Dim. Length 40 Item Dim. Width 24 Item Dim. Height 243 months agoHelpful?
Q: Can I spray remedy and diesel mix
3 months ago1 Answer
- A: Thank you for reaching out with your question. We do not recommend using a diesel and Remedy mix with this specific sprayer. The pump and seals on this unit are designed for water-based solutions. Diesel fuel is a petroleum distillate that can quickly degrade standard rubber seals and gaskets, leading to pump failure or leaks. Additionally, diesel can be difficult to flush completely from the tank and lines, which may contaminate future applications. For diesel-based mixtures, we recommend using a Fimco Pro Series sprayer, as the pumps is a professional grade pump designed to handle solutions like this.3 months agoHelpful?
Q: Will this work with a quick hitch on my Kubota L3902 tractor?
4 months ago1 Answer
- A: Hi Doug! The Fimco 40-Gallon 3-Point Sprayer is a Category 1 attachment. It is compatible with standard Quick Hitches, though you may need a Category 1 bushing kit to ensure the hitch hooks seat securely on the sprayer’s lift pins.3 months agoHelpful?
Q: Do they make a longer power cord or do I need a another battery
4 months ago1 Answer
- A: We do not have a longer lead wire, but we do offer a 5' extension wire #5273212, please contact our customer service team at 800-831-0027 and they'll be happy to assist you.4 months agoHelpful?
1 - 10 of 95 Questions
Similar Items
-
-
-
-
-
-
-
-
-
-
-
-
Top Rated
Items You May Like
-
Top Rated
-
-
-
-
-
-
Top Rated
-
-
-
-
Top Rated
-
Customers Also Bought
-
Top Rated
-
-
-
-
-
-
Top Rated
-
Top Rated
-
-
-
-
Reviews
Summary of Reviews
The sprayer is generally well-received, with customers praising its performance, ease of assembly, and value. It works effectively for spraying various liquids on small to medium-sized properties. However, some users report issues with the tank leaking, particularly around the bottom mounting bolts....
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
Most Helpful Favorable Review
5 out of 5 stars.
great sprayer
6 years ago
Perfectly good little sprayer! Now they tell you its not quick hitch compatible, but it does work, just put a big bolt for the top link to catch. The power cord is a little short, but i just put a battery on my floorboard, problem solved. Do NOT use the bolts on the bottom of the tank, you will crack the tank at the holes if you use it on rough terrain. I used some thick vinyl under the tank, then used the straps to hold it down. Did a really rough 5 acre field with it, zero problems. Dont hesitate to buy this little sprayer for your homestead!
14 people found this helpful
Show Reviews:
Most Helpful Critical Review
2 out of 5 stars.
Quality Control ???
6 years ago
I am shopping for a sprayer and seeing the reviews on this unit, which would fit my application perfect, I am very disappointed in the Manufacturer.
So much consistency in the quality of the sprayer. Has anyone in quality control looked into these issues to attempt and make it a great unit?
The bolts in the bottom of the tank creating leaks is so consistent that customers don’t even use them. It’s engineered to need them so correct the issue.
The wire harness has to be added to for it to reach the power supply. Was it setup for a lawn mower with a 3 point hitch when engineered?
Why not address the common issues to make this unit better? It’s affordable; but who wants to waste their money on cheap quality?
JMHO,
Concerned TSC customer
15 people found this helpful
Show Reviews:
- spraying
- purchase
- price
- setup
- quality
- satisfaction
- small
- batteries
1 to 4 of 784 Reviews .
1 – 4 of 784 Reviews
Most Recent
Millington TN
Review 1
1 out of 5 stars.
Don’t buy it. All the crack tank reviews are right
18 days ago

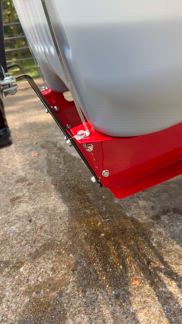

I got this spray rig Wednesday 08/05/26…. I assembled and tested it… no leaks in the shop overnight.
Today, first use, 08/09/26 I fill it to 40 gallons with chemical. I go 2.5 mph at 30psi applying said chemical…. I have 15 or so gallons left when I park and see chemical steadily dripping from the underside of the tank…. FIRST USE…. 15+ gallons of chemical wasted…
I was thinking it would be worth the $600+ for the unit but now I am out that PLUS chemical….
No, I do not recommend this product.
Response from Fimco Industries:
10 days ago
Fimco Industries
We are very sorry to hear about your experience with the tank leaking on your first field use and the loss of your chemical. We completely understand your frustration—a new sprayer should perform reliably right out of the box. When leaks develop specifically at the bottom insert locations, it can sometimes be caused by the mounting bolts being over-tightened into the tank threads during assembly, which stresses the plastic. Regardless, we stand behind our products and want to make this right. Please contact our support team at 800-831-0027 so we can assist you with a replacement tank right away.
Review 1
1 out of 5 stars.
Fimco 40 gallon sprayer
23 days ago
Works well but did not assemble as easy as the instructions explain to be. Had to modify holes in the metal bracket due to sprayer not lining up correctly. 1 nozzle would not spray at all had to replace it.
No, I do not recommend this product.
Response from Fimco Industries:
23 days ago
Fimco Industries
Thank you for sharing your feedback and for choosing FIMCO! We are glad to hear the sprayer is performing well for you, but we apologize for the frustration during assembly and the issue with the nozzle. Bracket Alignment: The side panel bracket holes are precision-drilled, but occasionally a misdrilled panel can slip through quality control. We apologize for the inconvenience of having to modify the bracket to fit. Non-Spraying Nozzle: If a nozzle fails to spray out of the box, it is usually caused by a defective check valve strainer inside the nozzle body that isn't opening under pressure. We stand behind our products and would be happy to send you a replacement check valve strainer or any replacement bracket parts, so you have fully functional spares on hand. Please reach out to FIMCO Customer Care at 1-800-831-0027 with your purchase details!
Georgia
Review 1
1 out of 5 stars.
FRUSTRATED IN GA
a month ago
Took the sprayer out for the first time yesterday, filled it up with product to begin weed control on my property. The unit would not come on, I have a good battery and a remote control hooked up to tank, there is power to the remote because the light comes on when attached to battery, but no pressure to start the pump. I did fill with water at home and used the sprayer at home first, all went well. I went back home , checked all fuses and all good. I then got out the remote control and turned it on, everything started working properly. I do not understand why the tank would not work without the remote by just turning on and off with the switch that comes with harness. While working on this issue back home I also discovered a small leak coming from the bottom of the tank right where it’s attached by a screw to the frame. This is all very frustrating as this unit was not cheap and should not be giving this kinda issues when new.
SweepstakesYes
No, I do not recommend this product.
Response from Fimco Industries:
a month ago
Fimco Industries
Thank you for sharing your feedback, and we are truly sorry for the frustration this has caused with your new 40 Gal. 3-Point Sprayer. We understand how disappointing it is to set up a project only to run into equipment troubles. Regarding the Power Issue:
When an aftermarket remote switch or secondary harness is added to the system, it often alters how power completes the circuit to the pump. If the remote bypasses the standard wiring harness, the standard inline switch will not function as expected unless the remote allows power to pass through. Regarding the Tank Leak: A leak near the frame mounting screw is definitely something we want to address immediately. Please verify if the screw was over-tightened into the molded tank insert. We want to make this right and get your sprayer operating reliably. Please reach out to our Customer Service team directly at 800-831-0027 so we can troubleshoot the wiring setup with you and get a replacement tank sent out under warranty.
When an aftermarket remote switch or secondary harness is added to the system, it often alters how power completes the circuit to the pump. If the remote bypasses the standard wiring harness, the standard inline switch will not function as expected unless the remote allows power to pass through. Regarding the Tank Leak: A leak near the frame mounting screw is definitely something we want to address immediately. Please verify if the screw was over-tightened into the molded tank insert. We want to make this right and get your sprayer operating reliably. Please reach out to our Customer Service team directly at 800-831-0027 so we can troubleshoot the wiring setup with you and get a replacement tank sent out under warranty.
FL
Review 1
1 out of 5 stars.
Faulty product
a month ago

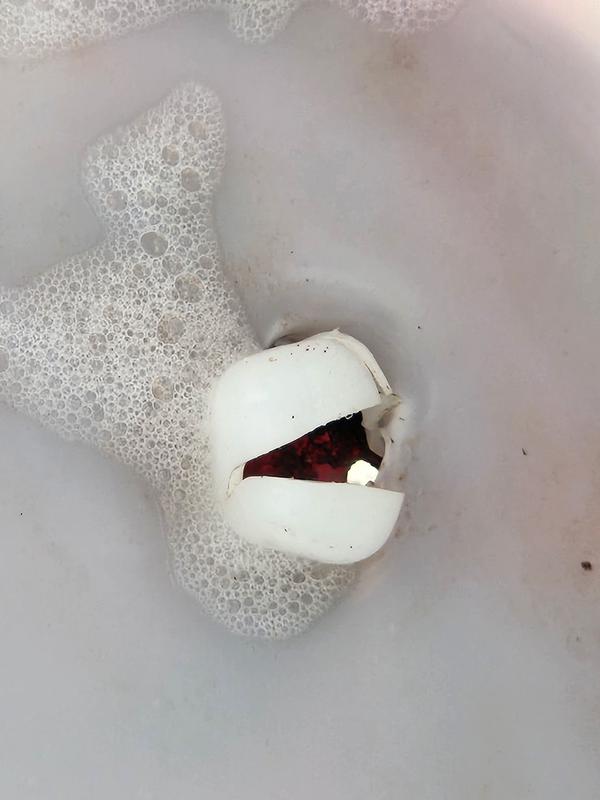

Tank sits on screws. After using for a week or two, cracks developed and started leaking. Not only that, battery stopped working. Faulty product, don't buy it.
No, I do not recommend this product.
Response from Fimco Industries:
a month ago
Fimco Industries
We are so sorry to hear about the trouble you're experiencing! A leaking tank is definitely not the quality experience we aim to provide. Tank cracks near the mounting points can sometimes occur if the bottom bolts are overtightened during setup or if the unit is subjected to extremely rough terrain. (Please note that our 3-point sprayers rely on your tractor or vehicle's 12V battery power, so you'll also want to check those battery connections and fuses). Please reach out to our Customer Service team at 800-831-0027, so we can get a replacement tank sent out to you directly. We're here to help!
