DeWALT 4.7 RHP 80 Gallon Vertical Stationary Air Compressor

SKU # 119634199
Enter Zip Code for price
Product price

Save Up To
See price at checkout Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options for

This item will ship within 0 days.

Protect Your Purchase

We'll fix it, replace it, or reimburse you for it. Learn More

power plus

Item Information

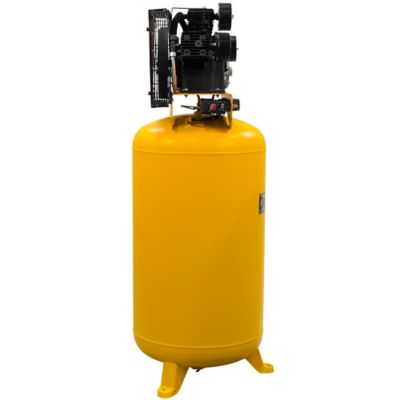

The single stage high-flow DeWALT 80 Gallon ASME Vertical Stationary Air Compressor features a 4.7 RHP heavy-duty 230V induction motor with a long-life cast iron, three cylinder, oil-lubricated pump.

  • 155 (max.) PSI, 16.1 CFM @ 40 PSI and 14.0 CFM @ 90 PSI
  • 155 PSI (max.) pressure provides optimum tool performance
  • Large 80 gallon air receiver provides more air for longer run times on air tools such as ratchets, impacts, spray guns, air hammers, etc.

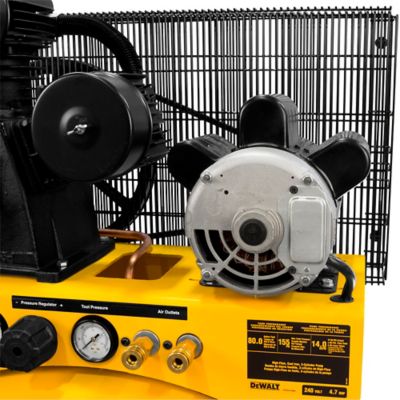

  • Integrated control panel that includes tank and working pressure gauges, air flow regulator, two quick connect air outlets and pressure relief valve
  • Full metal belt guard for added motor protection and durability
  • Shipped with high-performance quality compressor pump oil for optimum performance and long-life
  • 2 year limited pump warranty; 1 year all other components

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Air Outlet Size: 3/8 in.
Amps: 22 A
Brand: DeWALT
Portable or Stationary: Stationary
Phase: Single
Product Height: 77 in.
Product Length: 31-1/2 in.
Product Type: Air Compressors
Product Weight: 354 lb.
Product Width: 34-3/4 in.
Pump Type: Cast Iron
Running HP: 4.7 HP
Tank Size: 80 gal.
Tank Type: Vertical
Warranty: 2-Year Limited
CFM @ 40 PSI: 16.1
CFM @ 90 PSI: 14
Drain System: Manual
Grade: Contractor
Magnetic Starter: No
Maximum Pressure: 155 PSI
Power Type: Electric
Manufacturer Part Number DXCMLA4708065

What is the motor speed?

Asked by: TATT
This motor runs at 3450 RPM.
Answered by: Dewalt Team
Date published: 2018-10-09

What is the life for the compressor pump and the motor?

Asked by: Remowill63
Please contact us at 1-800-628-8815 for further assistance.
Answered by: DewaltProductExpert
Date published: 2018-10-19

What size breaker does it take? I see 25A is that running?

Asked by: HotRod53
This size 80 gallon compressor requires a 30 Amp Double Pull breaker. The motor rating on this unit is 22 full load amps.
Answered by: Dewalt Team
Date published: 2018-07-23

is this a 60 or 80 gallon compressor?

Asked by: LSGriff
80 gallon
Answered by: ElliottB
Date published: 2016-10-01
