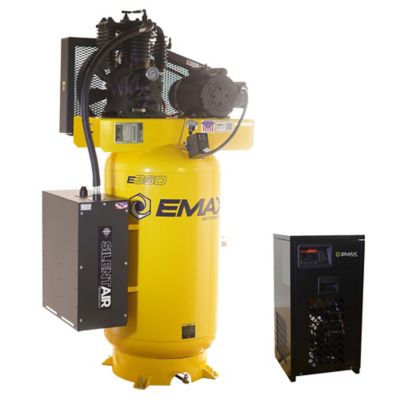

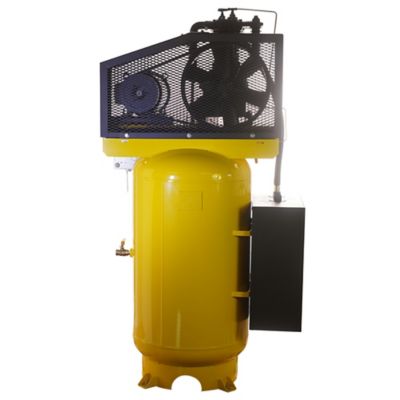

This EMAX 5 HP 80 gal. Industrial Air Compressor is a 2-stage, three-phase Inline Vertical air compressor designed for up to 70,000 hours of commercial or industrial use with proper maintenance. Patented Pressure Lubricated Inline 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours. This EMAX air compressor delivers 19 CFM at 100 PSI, maximum PSI of 175. The unit features industrial grade electric motor at 800 maximum RPM and 24 running AMPS, magnetic starters, automatic tank drain, powder coated ASME tank with a 200 PSI. This air compressor is paired with all cast iron, 70,000 Hours rated, patented pressure lubricated reciprocating pump. This unit includes our patented, MADE IN THE USA, 100 silent air system, installed. ETL, UL, CSA, ASME Certified. Eligible for LIFETIME PUMP WARRANTY with maintenance kit, 1 Year Standard, 5 Year Extended.

• Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours
• Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
• Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
• Auto tank drain 110V dual timer controlled, eliminates daily maintenance
• Extended tank water drain pipe plumbed out the front of the silent air compressor with 1/4 in. ball valve handle for easy tank draining
• Solid cast iron crankcase ensures stable crankshaft alignment and can handle a heavy work load
• Precision balanced solid cast iron crankshaft with Timken-Style stainless steel roller bearings on the front and rear for a smooth and efficient operation
• All steel connecting rods with replaceable rod bearing inserts allows rods to be rebuilt
• Removable 100% cast iron cylinders do not warp from heat
• All cast iron cylinder heads are durable and dependable
• Disc valve design intake and exhaust valves can be serviced in minutes
• Top quality compression and oil rings ensure performance with low oil carry over
• Precision ground pistons are machined to tight tolerances that ensure low oil carry over
• Premium non-absorbent gaskets prevent oil seepage from the pump
• All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke, which results in fewer loads on the electric motor
• Built-in head unloaders are built into the intake valve assembly on the air compressor head, reducing internal pump heat
• Built-in inter-cooler and after-coolers
• Raised pump platform design lifts the pump 2 in. off the mounting base plate, allowing for 100% constant flow of cool air from the flywheel fan to circulate
• Name brand electric motor meets all UL and CSA requirements
• Large 1-3/8 in. output shaft on the motor
• Large starting and running capacitors
• Motor can be pulled 15% over full load for more break horsepower
• Dynamically balanced armature for low vibration levels
• Belt guard is made from 13 ga. steel and premium grade expanded metal
• Top quality pressure switches with an adjustable screw which allows you to adjust your pressure higher or lower
• All check valves on the air compressor are brass with a Teflon seating to reduce tank noise
• 100% brass ASME safety valves are preset and sealed for correct settings
• ETL Certified
• Maximum Pump RPM: 800, for extended life
• Three Phase 208/230/460 option set up
• Motor RPM: 1750
• Compressor: 19 CFM @ 100 PSI
• Dryer: 30 CFM
• Tank outlet size: 3/4 inch
• Eligible for LIFETIME PUMP WARRANTY with maintenance kit, 1 Year Standard, 5 Year Extended
