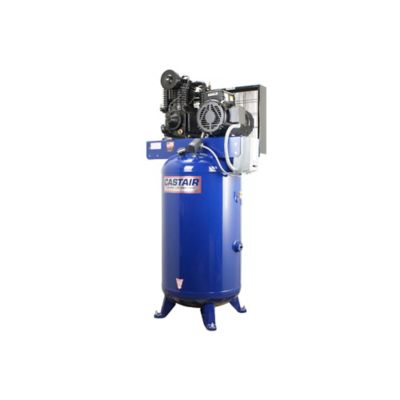

Castair Air Compressor, Industrial Series, 80 gal. Vertical, 7.5 hp 1-ph 230 V, 24.8 cfm @175psi
New Arrival
Item # 608308999
Neighbor’s Club Members earn points with purchases.
New Arrival
Item # 608308999
Valid 5/11/2026 - 7/5/2026
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.
Neighbor’s Club Members earn points with purchases.
The CASTAIR 7.5HP industrial series vertical air compressor features truly impressive build quality that s a cut above the competition. This compressor uses a two stage cast iron pump, running with oil lubrication at a low 895 RPM to make the machine quieter, with longer life than oil-less compressors. The pump features steel connecting rods, with automotive type rod insert bears at the crankshaft, with bearings at the wrist pin for long-term reliability. For ease of maintenance and reliability, the pump also has disc and spring valves, as well as a centrifugal unloader for loadless startup. This compressor also has ASME-compliant safety valves installed, and a four-leg, 80 gal. tank ASME-compliant tank. The motor is made in USA by Baldor, running at 1725 RPM, with a full 15% service factor.
- 895 RPM, oil-lubed cast iron pump for quiet operation and long service life
- 32.4 CFM at 0 PSI, 24.8 CFM at 175 PSI
- Precision steel connecting rods with automotive type rod insert bearings at crankshaft, and bearings at wrist pin for long service life and reliability
- Disc and spring valves for ease of service, efficiency, and maximum reliability
- Centrifugal unloader for loadless startup every operation
- Automotive filters with paper element provide clean intake air and quiet operation
- Copper or stainless braided discharge tube for strength and increased heat dissipation
- Heavy duty made in USA Baldor motor runs at 1725 RPM with full 15% service factor
- Quality pressure switch and magnetic starter mounted and wired from factory
- 50A breaker required for operation
| Brand | Castair |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 24 CFM |
| Air Outlet Size | 3/4 in. NPT |
| Amperage | 35A |
| Compressor Horsepower | 7.5 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 80 gal |
| Compressor Voltage | 230V |
| Drain System | Manual tank drain |
| Drive Type | Belt Drive |
| Features | Tapered roller bearings at both ends of crankshaft for superior support & less friction |
| Number Of Power Speeds | Single |
| Power Type | Electric |
| Primary Color | Blue |
| Primary Material | Steel |
| Product Height | 74 in. |
| Product Length | 32 in. |
| Product Weight | 655 lb. |
| Product Width | 24 in. |
| Pump Material | Cast iron |
| Tank Style | Vertical |
| Warranty | 2 Years |
| Manufacturer Part Number | GPE211019 |
