Mega 10 hp Horizontal 35 CFM, 175 PSI, 200 PSI Max, 3 Phase Power 460 V Two Stage
Mega 10 hp Horizontal 35 CFM, 175 PSI, 200 PSI Max, 3 Phase Power 460 V Two Stage
Item # 6152253
$4709.99
Add a protection plan
Powersport plans are not available in CA & MD.
Mega 10 hp Horizontal 35 CFM, 175 PSI, 200 PSI Max, 3 Phase Power 460 V Two Stage
Item # 6152253
$4709.99
Add a protection plan
Powersport plans are not available in CA & MD.

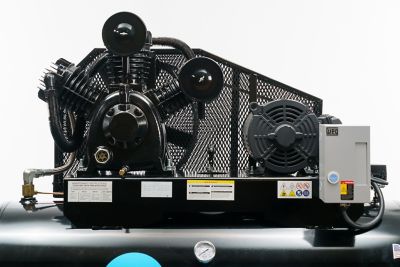

The MEGA Compressor 10 HP, horizontal air compressor is ideal for multiple operating air tools and industrial work. This compressor has high air flow of 37 CFM @ 90 PSI, a maximum 175 PSI to power a wide variety of air tools, and a 3-phase magnetic starter. The heavy-duty, cast iron, 2-stage, three-cylinder pump is oil lubricated for a long life. The durable, 120 gallon., ASME certified tank is a horizontal design for easier access for maintenance to the pump and motor.
- Cast iron, W cylinder, oil lubricated pump
- Heavy duty induction motor for maximum performance and efficiency
- 120 gallon Horizontal Tank
- 460V Three Phase Motor
- Shipped with 100% full synthetic air compressor oil for optimum performance and long life
- Build In USA
| Brand | Mega |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 35 CFM |
| Air Outlet Size | 0.75 IN |
| Amperage | 11.9 A |
| Compressor Horsepower | 10 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 120 gal |
| Compressor Voltage | 460V |
| Drain System | Manual Drain |
| Drive Type | Belt Drive |
| Features | Heavy-duty 10 HP induction motor with oil-lubricated cast iron W-cylinder pump, 120-gallon horizontal tank, 460V 3-phase motor, stainless steel reed valves, ball valves, oil sight glass, and synthetic compressor oil. |
| Phase | Triple |
| Number Of Power Speeds | Single |
| Power Type | Electric |
| Primary Color | Black |
| Primary Material | Cast Iron |
| Product Height | 60 in. |
| Product Length | 75 in. |
| Product Weight | 980 lb. |
| Product Width | 36 in. |
| Pump Material | Cast iron |
| Stage Type | Two-Stage |
| Tank Style | Horizontal |
| Warranty | 1 |
| Manufacturer Part Number | MP-10120H3-U460 |
