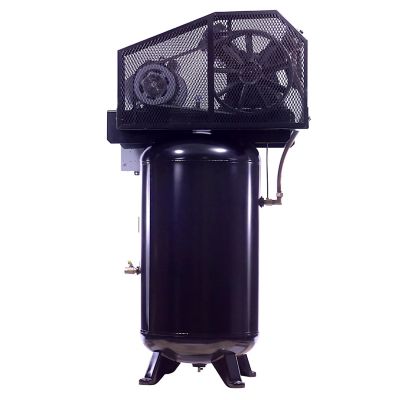

Mega 5 hp Upright 18.5 CFM, 175 PSI (175 PSI max) Two Stage Single Phase
Mega 5 hp Upright 18.5 CFM, 175 PSI (175 PSI max) Two Stage Single Phase
Item # 6152255
$2379.99
Add a protection plan
Powersport plans are not available in CA & MD.
$2379.99
Add a protection plan
Powersport plans are not available in CA & MD.
The Mega Compressor MP-5080VC is an 80-gallon upright electric air compressor built for auto shops and serious DIY use. It delivers up to 175 PSI with a 5 HP motor and a vertical tank design to help save floor space. This compressor delivers 20 CFM at 90 PSI to power a wide variety of air tools. This unit is designed around a high-performance cast iron pump and ASME-certified tank for a long service life.
- Cast iron, W cylinder, oil lubricated pump
- Heavy duty induction motor for maximum performance and efficiency
- 80 gallon vertical Tank
- 240V Single Phase Motor
- Shipped with 100% full synthetic air compressor oil for optimum performance and long life
- Build In USA
| Brand | Mega |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 18.5 CFM |
| Air Outlet Size | 0.75 in. |
| Amperage | 23 A |
| Compressor Horsepower | 5 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 80 gal |
| Compressor Voltage | 220V |
| Drain System | Manual Drain |
| Drive Type | Belt Drive |
| Features | Heavy-duty 5 HP two-stage air compressor with cast iron W-cylinder oil-lubricated pump, 80-gallon ASME vertical tank, 20 CFM @ 90 PSI, 175 PSI max, 220V single-phase motor and magnetic starter. |
| Phase | Single |
| Number Of Power Speeds | Single |
| Power Type | Electric |
| Primary Color | Black |
| Primary Material | Cast Iron |
| Product Height | 73 in. |
| Product Length | 35 in. |
| Product Weight | 600 lb. |
| Product Width | 44 in. |
| Pump Material | Cast iron |
| Stage Type | Two-Stage |
| Tank Style | Vertical |
| Warranty | 1 |
| Manufacturer Part Number | MP-5080VC |
