Mega 5 HP 80 gal. 2 Stage 3-Cylinder 175 PSI Max Industrial Air Compressor
Mega 5 HP 80 gal. 2 Stage 3-Cylinder 175 PSI Max Industrial Air Compressor
Item # 1738464
$1099.99
Add a protection plan
Powersport plans are not available in CA & MD.
Mega 5 HP 80 gal. 2 Stage 3-Cylinder 175 PSI Max Industrial Air Compressor
Item # 1738464
$1099.99
Add a protection plan
Powersport plans are not available in CA & MD.

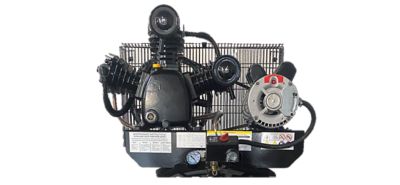

The Mega 2-Stage 3-Cylinder 80 gal. 5 HP 175 PSI Max Industrial Air Compressor features a cast iron, 3-cylinder, oil lubricated pump with a 1-piece cast iron crankcase. It is exactly what your need to complete your jobs with maximum efficiency. This air compressor has a full cast iron cylinder body.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Heavy duty induction motor for maximum performance and efficiency
- 240V single phase motor powers this efficient air compressor
- Air compressor with a cast iron, W cylinder, oil lubricated pump
- CFM @ 90 PSI: 17
- Voltage: 240 Volt
- Maximum pressure: 175 PSI
- 1 year limited warranty
| Brand | Mega |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 17 CFM |
| Air Outlet Size | 1/2 in. |
| Compressor Horsepower | 5 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Operation | Automatic start/stop |
| Compressor Tank Capacity | 80 gal |
| Compressor Voltage | 240V |
| Cord Length | N/A |
| Decibel Rating | 78 dBA |
| Drain System | Manual |
| Drive Type | Belt Drive |
| Engine Brand | MEGAPOWER INC |
| Features | Shipped with 100% full synthetic air compressor oil for optimum performance and long life |
| Fuel Tank Capacity | N/A |
| Maximum RPM | 3,450 RPM |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 73 in. |
| Product Length | 31 in. |
| Product Weight | 508 lb. |
| Product Width | 32 in. |
| Pump Life | 8,000 hours |
| Pump Material | Cast iron |
| Pump Oil Capacity | 1.25 L |
| Stage Type | Two-Stage |
| Tank Fill Time | 9 minutes |
| Tank Style | Vertical |
| Warranty | 1 Year |
| Manufacturer Part Number | MP-6580V2 |
