Powermatic Dovetailer with Pneumatic Clamping, 1 HP, 230V, 1Ph
Powermatic Dovetailer with Pneumatic Clamping, 1 HP, 230V, 1Ph
Item # 1527363
$9349.99
$9349.99
The Powermatic DT65 Dovetailer with Pneumatic Clamping gives quality to the most popular joints of drawer construction. Offering a 1HP 230V 1 phase motor and pneumatic clamping, this dovetailer offers a magnetic starter. Complete with a carbide tipped cutter and a four-sided template, this dovetailer produces results on 1 in., 1-1/2 in., 2 in., and 2-1/2 in. centerlines. Add this dovetailer to your gear today.

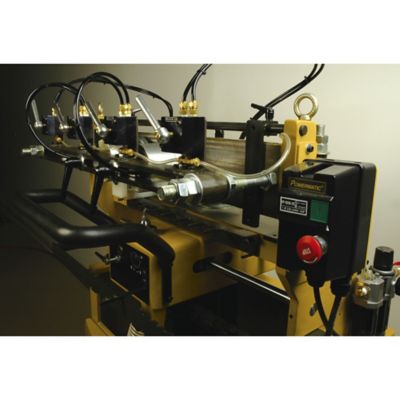

- Pneumatic clamping provides quick locking and unlocking of the work piece
- Four dovetail centerlines at 1 in., 1-1/2 in., 2 in. and 2-1/2 in. create a custom appearance
- Eccentric spindle collet for re-sharpened cutters
- Precision linear carriage bearings of pneumatic clamping are sealed on both ends to eliminate dust buildup

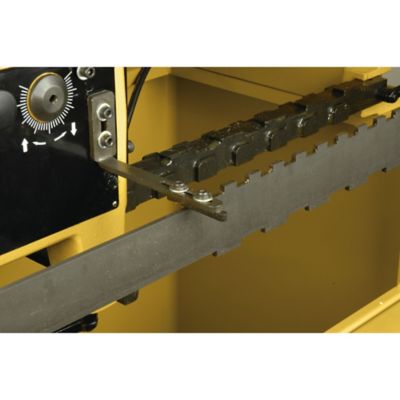

- Visual stylus and template aid in guiding the carriage
- Spring-loaded carriage on pneumatic clamping makes for smooth, effortless dovetail cutting
- Pneumatic clamping has material stops provide convenient positioning of the work piece
- Cast iron and steel construction for added stability and durability
- Cutter height of 3/16 in. to 3/4 in. accommodates different cutting depths and board thicknesses
- An affordable way to produce cleanly cut, professional dovetails that will enhance your products
- Use of different dovetail centerlines gives a unique custom appearance
| Brand | Powermatic |
|---|---|
| Country of Origin | Imported |
| Amperage | 4.2A |
| Chuck Type | Keyed |
| Cord Length | N/A |
| Drilling Capacity | 1-3/4 in. Front, 1-3/16 in. Side |
| Features | Pneumatic clamping provides quick locking and unlocking of the work piece |
| Horsepower | 1 HP |
| Maximum Chuck Size | 1/2 in. |
| Mounting Location | Freestanding |
| Number of Speeds | 1 |
| Product Height | 63 in. |
| Product Length | 37 in. |
| Product Weight | 510 lb. |
| Product Width | 44 in. |
| Spindle Travel Distance | 3/16 in. |
| Swing | 16-1/2 in. |
| Table Material | Cast iron |
| Voltage | 230V |
| Warranty | 5 Year |
| Work Table Length | 59 in. |
| Work Table Width | 16-1/2 in. |
| Manufacturer Part Number | 1791305 |
