DEWALT 3/8 in. NPT Desiccant Air Cleaner
Item # 133422999
Stocked & Ready
Buy Air Compressor Get 20% Off Air Compressor accessorie
$219.99
or
or
$37/mo.† suggested payments with 6 Months Financing or earn $10 in Rewards+ on this purchase.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The DEWALT 3/8 in. NPT Desiccant Air Cleaner cleans air and removes water vapor right at the beginning to help support applications that require oil-free, moisture-free air, like spray painting. Two separate systems condition the air: An oil-removal filter traps the oil aerosols and the desiccant beads system removes water vapor. An outlet screen on the air cleaner keeps desiccant particles from entering the air stream, protecting air tools. The desiccant beads change color when it needs to be changed or recharged. The desiccant air cleaner system includes a quick-release bowl to easily view the fluid level and it is protected against impact by metal guards. A quarter-turn drain makes maintenance easier. The DEWALT desiccant air cleaner is built with great quality construction and performance in order to get the job done.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Filter removes moisture and contaminants improving tool life
- Quick release bayonet bowls with threaded outlet for easy drain line connection
- Dryer in the air cleaner removes excess oil and water vapors
- Desiccant beads changes from blue to pink when beads need to be replaced
- Body and metal bowl of the air cleaner are corrosion-resistant
- Wall mountable
- Complete desiccant air cleaner assembly includes filter, dryer and mounting bracket
- 2 year limited warranty
- Outlet screen keeps desiccant particles from entering the air stream
- Quarter-turn drain makes maintenance of the desiccant air cleaner easy
| Brand | DEWALT |
|---|---|
| Country of Origin | Imported |
| Compatibility | Any air compressor |
| Filtration Material | Aluminum |
| Inlet Size | 3/8 in. |
| Inlet Type | NPT |
| Package Quantity | 1 |
| Product Height | 8.5 in. |
| Product Length | 6 in. |
| Product Weight | 2.95 lb. |
| Product Width | 3.3 in. |
| Manufacturer Part Number | DXCM019-0338 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions

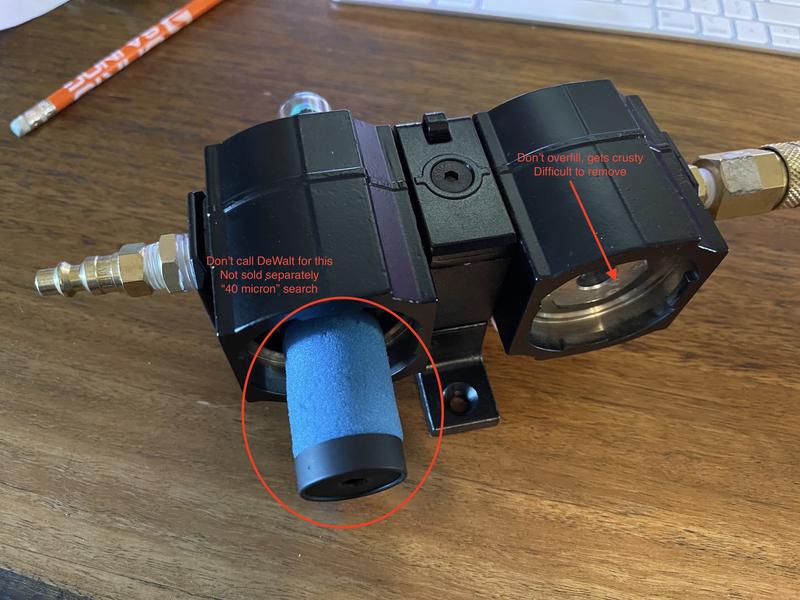

Q: Where can I buy the replacement filter and desiccant? I can't seem to find it online.
5 years ago1 Answer
- A: Please contact Product Services at 888-895-4549 for further assistance with your replacement part needs.5 years agoHelpful?
Q: how close do you mount the filter housing from the compressor regulator outlet....i know some air engineering says 20 ft.
5 years ago1 Answer
- A: We recommend that the DXCM019-0338 is installed in the air line as close as possible to the outlet where the hose for the tool is connected to.5 years agoHelpful?
Q: What’s the white round thing up in side on the second tube? Mine just fell out?
5 years ago2 Answers
- A: It is a seal when you put your condensation beads in5 years agoHelpful?
Q: How much of the blue balls do u put in there?
5 years ago2 Answers
- A: Fill to within 1/2” from the top of the bowl. Avoid getting any of the desiccant in the center tube. You may not use all of the beads that were supplied.5 years agoHelpful?
Q: Where do the blue balls go? Witch side?
5 years ago2 Answers
- A: The canister to the right......5 years agoHelpful?
Q: Is the left tube supposed to be loose when in the locked position? The Air filter side
5 years ago2 Answers
- A: No, I don’t think so , mine is tight5 years agoHelpful?
Q: What's the minimum particle size rating of this filter, e.g. 5 micron? (And why would you not make this spec. available without asking)?
6 years ago1 Answer
- A: 40 micron at this time.6 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: Where can I buy the replacement filter and desiccant? I can't seem to find it online.
5 years ago1 Answer
- A: Please contact Product Services at 888-895-4549 for further assistance with your replacement part needs.5 years agoHelpful?
Q: how close do you mount the filter housing from the compressor regulator outlet....i know some air engineering says 20 ft.
5 years ago1 Answer
- A: We recommend that the DXCM019-0338 is installed in the air line as close as possible to the outlet where the hose for the tool is connected to.5 years agoHelpful?
Q: What’s the white round thing up in side on the second tube? Mine just fell out?
5 years ago2 Answers
- A: It is a seal when you put your condensation beads in5 years agoHelpful?
Q: How much of the blue balls do u put in there?
5 years ago2 Answers
- A: Fill to within 1/2” from the top of the bowl. Avoid getting any of the desiccant in the center tube. You may not use all of the beads that were supplied.5 years agoHelpful?
Q: Where do the blue balls go? Witch side?
5 years ago2 Answers
- A: The canister to the right......5 years agoHelpful?
Q: Is the left tube supposed to be loose when in the locked position? The Air filter side
5 years ago2 Answers
- A: No, I don’t think so , mine is tight5 years agoHelpful?
Q: What's the minimum particle size rating of this filter, e.g. 5 micron? (And why would you not make this spec. available without asking)?
6 years ago1 Answer
- A: 40 micron at this time.6 years agoHelpful?
Similar Items
-
Top Rated
-
Top Rated
-
-
-
-
-
-
Top Rated
-
-
-
-
Items You May Like
-
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Reviews
- quality
- design
- installation
- mounting
- price
- product features
- purchase
- returns
1 to 4 of 23 Reviews .
1 – 4 of 23 Reviews
Most Recent
TX
Review 1
4 out of 5 stars.
Works like it should
2 years ago
Works well for running my normal tools… keeps the moisture out. Only thing is that it came with desiccant that was already pink (saturated). Had to put it in the oven at 200 for a couple of hours to dry it out.
Yes, I recommend this product.
Anderson SC
Review 1
1 out of 5 stars.
Horrible quality and poorly engineered.
2 years ago

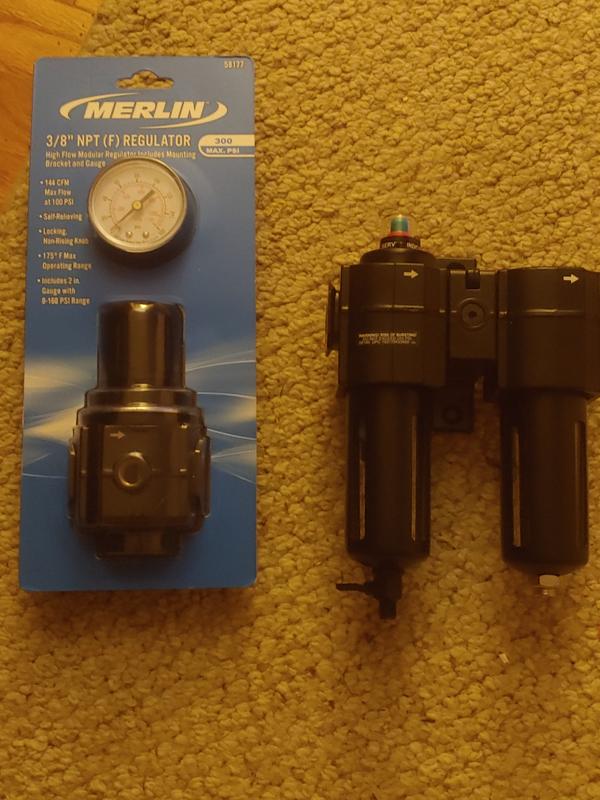

This is the "exact" same system that Harbor sells for seventy bucks under the name Merlin. And like Merlin, DeWalt does not offer a separately sold mounting bracket to join the separately sold, pressure regulator to this unit; even though they're clearly designed to be enjoined accordingly. They also lubricate the o rings, ensuring oil contamination in your paint job. And as others have stated, the canisters are loose and sloppy. You're paying about one hundred bucks extra for the brand name, and its not even worth the harbor price... Don't do it.
No, I do not recommend this product.
Response from Dewalt Team:
2 years ago
Dewalt Team
Informer, we are very sorry to hear of your issue and concerns. Our product team is here if you would like to discuss further, we would like to assist in any way possible. At your convenience, please reach them at 1-888-895-4549. Thank you, the DW Team!
Manning, SC
Review 1
5 out of 5 stars.
Works great
3 years ago
Works great so far
Yes, I recommend this product.
Dover FL
Reviews 2
5 out of 5 stars.
Must have
4 years ago
This is a must have for any painter & the "change filter" indicator as well as the desiccant color shift are fantastic features. They feel loose but seal nicely under pressure.
Yes, I recommend this product.
