HIT Welding 120V 70A ARC Welder Kit
Online Only
Item # 1248056
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The HIT 70 Amp 120V ARC Welder Kit is small but mighty. Easy to use, lightweight and portable, this Arc Welder is ideal for light duty automotive and industrial welding at home, on the farm, or at the shop. It's recommended for use on carbon steel and mild steel up to 1/8 in. thick. The Welder utilizes a 120V plug, so it can be used at any standard outlet, for convenience and versatility. The 70 Amp 120V ARC Welder Kit is also equipped with advanced thermal overload protection for safe operation. Kit includes welding cable with electrode holder, grounding cable with clamp, chipping hammer with brush, and a welding face shield.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on welders? Check out our guide on welding in the product documents section.
- 120 volt power supply can be plugged into any standard outlet
- Advanced thermal overload protection with indicator light for safety
- Inverter IGBT technology power manages input fluctuations for better welds and more control
- Welds carbon steel and mild steel up to 1/8 inch thick, not suitable for aluminum or stainless steel
- Compatible with electrode sizes E6013 and E7018, 1/16, and 5/64
- 120-volt operation, single phase, 60 Hz, 72 volt no load
- 21.4 amp max input current
- Variable amps output 10 to 70, with duty cycle of 30% at 70A
- Synergic output current mode (output current/output volt/wire speed 3-in-1 knob) with steeples adjustment

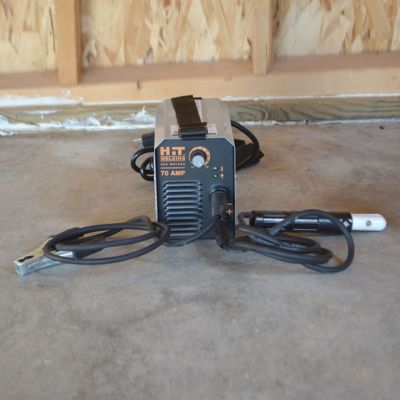

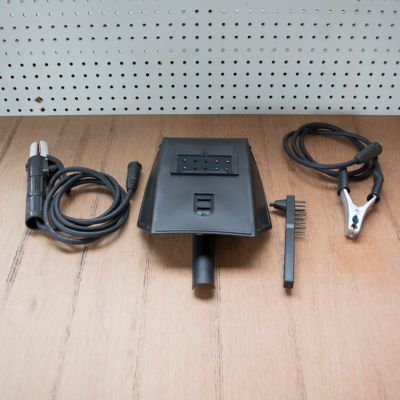

- Kit includes 6.5 ft. power cord, 5 ft. Earth ground cable with clamp, 6.5 ft. Welding cable and electrode holder , wire spool, face shield, and chipping hammer with brush
| Brand | HIT Welding |
|---|---|
| Country of Origin | Imported |
| AC/DC Stick | AC/DC stick |
| Amperage Adjustments | Steeples adjustment |
| Compatible Metal | Carbon Steel |
| Electrode Cable Length | 6.5 ft. |
| Features | Welds Carbon Steel |
| Maximum Electrode Size | 5/64 in. |
| Maximum Open Circuit Voltage | 70 v |
| Maximum Welding Amperage | 70A |
| Maximum Material Thickness | 1/8 in. |
| Minimum Electrode Size | 1/16 in. |
| Minimum Generator Power Required | 4,500W |
| Power Cord Length | 6.5 ft. |
| Product Height | 7 in. |
| Product Length | 9 in. |
| Product Weight | 9 lb. |
| Product Width | 4.75 in. |
| Welding Applications | Flux-Core Welding (FCAW) |
| Warranty | 90 Day Limited |
| Welder Input Voltage | 120V |
| Work Cable Length | 5 ft. |
| Manufacturer Part Number | HIT70 |
Q: Is the face sheild it comes with any good? or should I buy a welding mask.
7 years ago- A: We have not had any complaints regarding the face shield we supply and its performance.7 years agoHelpful?
Q&As
Q: Is the face sheild it comes with any good? or should I buy a welding mask.
7 years ago- A: We have not had any complaints regarding the face shield we supply and its performance.7 years agoHelpful?
