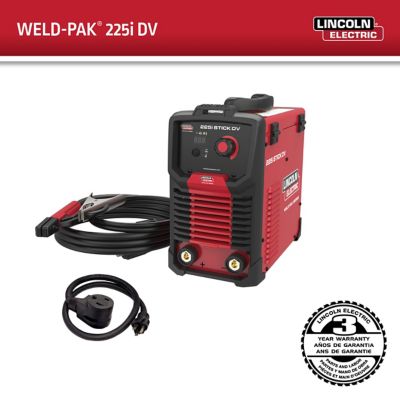

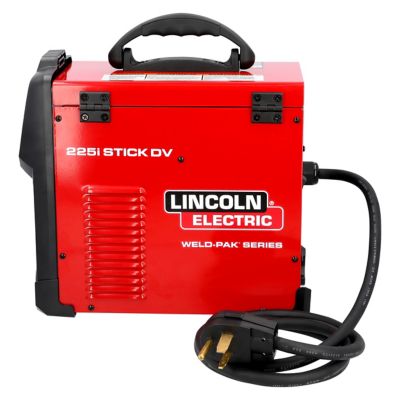

Lincoln Electric 225 Amp Stick/TIG Welder, 120/230-Volt Weld-Pak 225i, Electric (DC)
Item # 605437199
Buy a Welder and Get 15% off Welder accessories.
Neighbor’s Club Members earn points with purchases.
Item # 605437199
Buy a Welder and Get 15% off Welder accessories.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Lincoln Electrci dual voltage Weld-Pak 225i Stick DV stick/TIG Welder has a 10 to 225 amp DC output that supports mild steel stick electrode diameters from 5/64" to 5/32". Weighing in at 20 lbs., it is lightweight and portable. The case has a tool box top for storing cables or tools. The smooth arc provides strong welds on 12 gauge sheet metal to 5/16" thick steel. It has a 30% duty cycle at 225 amps when connected to 230VAC. Touch Start TIG welding is supported. A simple display allows you to dial in the weld settings so you can get started quickly and easily on any job, anywhere - maintenance work, fabrication, light structural and everything in between.Includes: (1) Shoulder Strap, (1) 13 foot Work Cable & Clamp, (1) 13 foot Electrode Cable & Electrode Holder, (1) 6ft Input Cable with three-prong 230VAC Plug, (1) 120VAC Plug Adapter
- 120VAC/230VAC input, 120/230/1/60
- 10-225 amp DC welding output range
- 30% duty cycle at 225 amps
- Weighs 20 lbs.

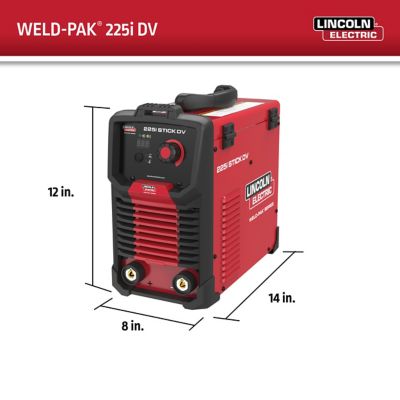

- Dimensions of unit 12H x 8W x 14L inches
- Welds 12 gauge to 5/16" single pass
- Comes with a shoulder strap, 13 foot work cable & clamp, 13 foot electrode cable & electrode holder, and 6 foot input cable with attached three-prong 230VAC 6-50P plug with 5-15P 120VAC adapter
- TIG capability with additional attachments
| Brand | Lincoln Electric |
|---|---|
| Country of Origin | Imported |
| AC/DC Stick | DC stick |
| Compatible Metal | Brass, Copper, Stainless Steel, Steel |
| Electrode Cable Length | 13 ft. |
| Features | Dual Voltage 125v and 225v |
| Gun Length | 13 ft. |
| Maximum Electrode Size | 0.15625 in. |
| Maximum Open Circuit Voltage | 82 V |
| Maximum Welding Amperage | 225A |
| Maximum Material Thickness | 3/16 in. |
| Minimum Amperage Output | 10A |
| Minimum Electrode Size | 0.078125 in. |
| Power Cord Length | 20 in. |
| Product Height | 12 in. |
| Product Length | 14 in. |
| Product Weight | 20 lb. |
| Product Width | 8 in. |
| Welding Applications | Stick Welding (SMAW) |
| Warranty | 1 Year |
| Welder Input Voltage | 230V, 120V |
| Welding Applications | Stick Welding (SMAW), TIG Welding (GTAW) |
| Work Cable Length | 13 ft. |
| Manufacturer Part Number | K5419-1 |
Q: Will it run off a generator
a month agoQ: How long is the duty cycle?and Maximum Open Circuit Voltage says 82v is that the max on 110v or 220v how much draw difference is this unit rated for?
2 months ago- A: Hi Askq! This welder has a 30% duty cycle at 225 amps when connected to 230VAC. The maximum open circuit voltage is 82V. When operating at maximum output on 230V, the unit draws up to 28 amps; it can also operate on 120V with a reduced output.2 months agoHelpful?
Q: How long is the duty cycle?
2 months ago- A: At 225 amps the duty cycle is 30%.2 months agoHelpful?
Q: Will this welder run off a genrator
3 months ago- A: Yes, the Lincoln Electric Weld‑Pak® 225i can run on a generator, as long as the generator is properly sized and produces stable power. The Weld‑Pak 225i draws up to 28 amps at 230V when operating at maximum output, so an undersized or unstable generator may limit performance or cause the machine to shut down. For lighter-duty work, the welder can also operate on 120V, but output will be reduced accordingly.3 months agoHelpful?
Q&As
Q: Will it run off a generator
a month agoQ: How long is the duty cycle?and Maximum Open Circuit Voltage says 82v is that the max on 110v or 220v how much draw difference is this unit rated for?
2 months ago- A: Hi Askq! This welder has a 30% duty cycle at 225 amps when connected to 230VAC. The maximum open circuit voltage is 82V. When operating at maximum output on 230V, the unit draws up to 28 amps; it can also operate on 120V with a reduced output.2 months agoHelpful?
Q: How long is the duty cycle?
2 months ago- A: At 225 amps the duty cycle is 30%.2 months agoHelpful?
Q: Will this welder run off a genrator
3 months ago- A: Yes, the Lincoln Electric Weld‑Pak® 225i can run on a generator, as long as the generator is properly sized and produces stable power. The Weld‑Pak 225i draws up to 28 amps at 230V when operating at maximum output, so an undersized or unstable generator may limit performance or cause the machine to shut down. For lighter-duty work, the welder can also operate on 120V, but output will be reduced accordingly.3 months agoHelpful?
