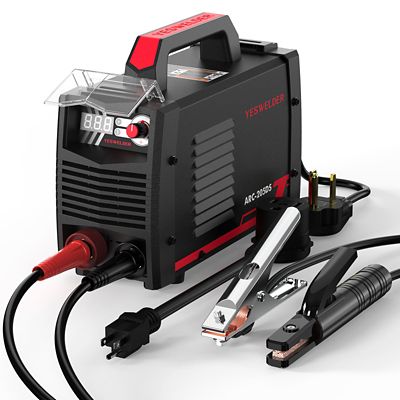

YesWelder 205Amp Arc Welder, 110V/220V Dual Voltage Hot Start Portable Welding Machine, ARC-205DS
YesWelder 205Amp Arc Welder, 110V/220V Dual Voltage Hot Start Portable Welding Machine, ARC-205DS
Item # 209205599
$139.99
Add this item to unlock free delivery!
Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.
YesWelder 205Amp Arc Welder, 110V/220V Dual Voltage Hot Start Portable Welding Machine, ARC-205DS
Item # 209205599
$139.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.
ARC-205DS is designed for easy welding with most 6010, 6011, 6013, and 7018 electrodes, easy arc start, smooth weld, and stable arc. This welder is 110V and 220V dual voltage compatible, the maximum output current is up to 250 amps, powerful enough to weld 25/64" (220V) and 15/64" (110V) steel. This welder is programmed with over-current protection, overload protection, and temperature control to guarantee safety. It is compact and portable design, suitable for professionals and DIY users.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Automatic compensation for voltage fluctuation

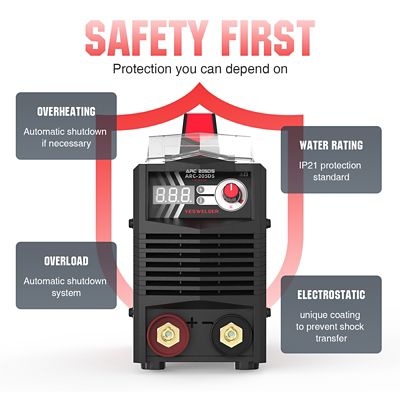

- Over-current protection, overload protection, and temperature control to guarantee safety
- Automatic Hot Start : Boosts the current during starting to provides easy, quick and reliable arc starts
- Auto Adaptive Arc Force : minimizes electrode sticking in the puddle without compromising arc stability or increased spatter
- Rated Input Voltage and frequency: AC 110V & AC 220V, 60Hz
- Input Current: 30A@110V & 23A@220V
- Rated Output: 26.2V
- Output Current: 20-205A
- Rated Duty Cycle: 60%@110V/145A & 60%@220V/205A
- Efficiency: 85%
- Insulation Grade: H
- Dimension: 14.5 x 10 x 6.3 inch
- Net Weight: 11 lbs
- Protection class: IP21S
| Brand | YesWelder |
|---|---|
| Country of Origin | Imported |
| AC/DC Stick | DC stick |
| Amperage Adjustments | 20-205A |
| Compatible Metal | Carbide, Stainless Steel |
| Electrode Cable Length | 9.84 ft. |
| Features | Rated Input Voltage: AC 110V & AC 220V; Input Current: 30A at 110V & 23A at 220V |
| Maximum Electrode Size | 4mm |
| Maximum Open Circuit Voltage | 65V |
| Maximum Welding Amperage | 205A |
| Maximum Material Thickness | 15mm |
| Minimum Electrode Size | 1.6mm |
| Power Cord Length | 79 in. |
| Product Height | 13 in. |
| Product Length | 15 in. |
| Product Weight | 7.83 lb. |
| Product Width | 8 in. |
| Welding Applications | Stick Welding (SMAW) |
| Warranty | 1 year |
| Welder Input Voltage | 110V, 220V |
| Work Cable Length | 98.4 ft. |
| Manufacturer Part Number | ARC-205DS |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 9 of 9 Questions
Newest questions
Q: Is this for aluminum welding too?
a year ago1 Answer
- A: Hi Dear Customer, Thanks for reaching out, this welder is mostly suitable for carton steel, but not suitable for Aluminum welding. Thanksa year agoHelpful?
Q: What I need to use a separate receptacle for the 220 plug
a year ago1 Answer
- A: Hi, Thanks for reaching out, there is a 220V to 110V Adapter packed with the welder, which enables the welder to be used under both 220V and 110V voltage. Thanksa year agoHelpful?
Q: Does it come with leads
2 years ago1 Answer
- A: Hi Jenk, The welder ARC-205DS comes with the following parts: 10 feet electrode holder cable 10 feet work clamp cable 110V & 220V power adapter Owners Manual There is an electrode holder, but no electrode rods in the packing. Thanks2 years agoHelpful?
Q: What does the arc-205DS come with ?
2 years ago1 Answer
- A: Hi Jack, Thanks for reaching out, the ARC-205DS comes with the following parts included in the packing, and is very suitable for DIY, home repair, and similar welding jobs. ARC-205DS-PRO Welding Machine 10 feet electrode holder cable 10 feet work clamp cable 110V & 220V power adapter Owners Manual Thanks2 years agoHelpful?
Q: I see where someone also asked this question but didn't see the answer. Does this welder come with leads?
2 years ago1 Answer
- A: Hi Robert, Thanks for reaching out. Yes, ARC-205DS comes with the following leads in the packing. 10 ft Grounding clamp 10 ft electrode holder 110V ~ 220V adaptor Thanks2 years agoHelpful?
Q: The specs say the 120 volt operation will need a 30 amp source of power. I've never heard of a 30 amp 120 volt plug. Am I reading that correctly? Also, does the 240 volt plug use a standard 240 volt receptacle?
2 years ago1 Answer
- A: Hi John, Thanks for reaching out. Yes, as indicated in the specs, the input current is 30A under 110V, and the welder comes with a 220V to 110V adaptor in the packing, and can directly use the welder under either 110V or 220V. The 240V plug can be used with a standard 240V socket. Thanks2 years agoHelpful?
Q: does this run AC or DC? the description indicates AC, but the manual and the fact that the sockets for the leads are marked with polarity, indicates DC. Which is it?
2 years ago1 Answer
- A: Thanks for reaching out. The input current is AC as it indicates in the description, while the output is DC to weld the metals. Thanks2 years agoHelpful?
Q: What is the Duty Cycle ?
2 years ago1 Answer
- A: Thanks for reaching out, the duty cycle for ARC-205DS is 60% under normal working conditions.2 years agoHelpful?
Q: Does it come with the leads and the 220 to 110 adapter?
2 years ago1 Answer
- A: Hi Dave, thanks for reaching out. Yes, ARC-205DS comes with a 110V/220V adapter included in the packing. If you'd like to switch the working power from 220V to 110V, just simply insert the plug into the adapter, then the welder can be used under 110V voltage.2 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 9 of 9 Questions
Newest questions
Q: Is this for aluminum welding too?
a year ago1 Answer
- A: Hi Dear Customer, Thanks for reaching out, this welder is mostly suitable for carton steel, but not suitable for Aluminum welding. Thanksa year agoHelpful?
Q: What I need to use a separate receptacle for the 220 plug
a year ago1 Answer
- A: Hi, Thanks for reaching out, there is a 220V to 110V Adapter packed with the welder, which enables the welder to be used under both 220V and 110V voltage. Thanksa year agoHelpful?
Q: Does it come with leads
2 years ago1 Answer
- A: Hi Jenk, The welder ARC-205DS comes with the following parts: 10 feet electrode holder cable 10 feet work clamp cable 110V & 220V power adapter Owners Manual There is an electrode holder, but no electrode rods in the packing. Thanks2 years agoHelpful?
Q: What does the arc-205DS come with ?
2 years ago1 Answer
- A: Hi Jack, Thanks for reaching out, the ARC-205DS comes with the following parts included in the packing, and is very suitable for DIY, home repair, and similar welding jobs. ARC-205DS-PRO Welding Machine 10 feet electrode holder cable 10 feet work clamp cable 110V & 220V power adapter Owners Manual Thanks2 years agoHelpful?
Q: I see where someone also asked this question but didn't see the answer. Does this welder come with leads?
2 years ago1 Answer
- A: Hi Robert, Thanks for reaching out. Yes, ARC-205DS comes with the following leads in the packing. 10 ft Grounding clamp 10 ft electrode holder 110V ~ 220V adaptor Thanks2 years agoHelpful?
Q: The specs say the 120 volt operation will need a 30 amp source of power. I've never heard of a 30 amp 120 volt plug. Am I reading that correctly? Also, does the 240 volt plug use a standard 240 volt receptacle?
2 years ago1 Answer
- A: Hi John, Thanks for reaching out. Yes, as indicated in the specs, the input current is 30A under 110V, and the welder comes with a 220V to 110V adaptor in the packing, and can directly use the welder under either 110V or 220V. The 240V plug can be used with a standard 240V socket. Thanks2 years agoHelpful?
Q: does this run AC or DC? the description indicates AC, but the manual and the fact that the sockets for the leads are marked with polarity, indicates DC. Which is it?
2 years ago1 Answer
- A: Thanks for reaching out. The input current is AC as it indicates in the description, while the output is DC to weld the metals. Thanks2 years agoHelpful?
Q: What is the Duty Cycle ?
2 years ago1 Answer
- A: Thanks for reaching out, the duty cycle for ARC-205DS is 60% under normal working conditions.2 years agoHelpful?
Q: Does it come with the leads and the 220 to 110 adapter?
2 years ago1 Answer
- A: Hi Dave, thanks for reaching out. Yes, ARC-205DS comes with a 110V/220V adapter included in the packing. If you'd like to switch the working power from 220V to 110V, just simply insert the plug into the adapter, then the welder can be used under 110V voltage.2 years agoHelpful?
