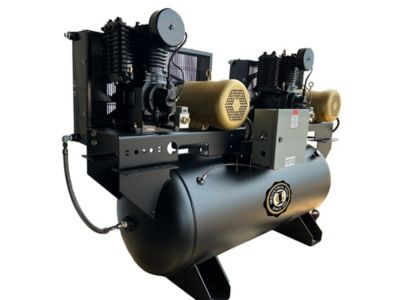

Industrial Gold 5 HP 120 gal. Horizontal Duplex Air Compressor, 208 to 230V, 3 Phase, 60 Hz
Item # 192136699
Neighbor’s Club Members earn points with purchases.
Item # 192136699
Valid 5/11/2026 - 7/5/2026
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.
Neighbor’s Club Members earn points with purchases.
The Industrial Gold 5 HP Duplex Air Compressor is the perfect addition to your tools and accessories. Equipped with a TEFC 208 to 230V 3-phase drive motor, this duplex air compressor is sure to hold up for long-lasting use. The air compressor also features a compressor silencing system for quiet operation. Check out our full range of air compressor models today.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- 18 CFM at 175 PSI per side; 36 CFM at 175 PSI total
- Compressor silencing system for quiet operation
- Equipped with a TEFC 208 to 230V 3-phase drive motor
- ASME/CRN rated air compressor tank
- Includes a 2-piece tank and top plate
- Air compressor has a belt guard after cooler for safe use
- Full saddle mounting feet for stability
- Self-tensioning belt system for convenience
- Redundancy control system for easy use
| Brand | Industrial Gold |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 18 CFM |
| Air Outlet Size | 3/4 in. |
| Compressor Horsepower | 5 HP |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 120 gal |
| Compressor Voltage | 208V/230V |
| Drain System | Automatic |
| Drive Type | Electric |
| Features | Cast Iron |
| Fuel Tank Capacity | 120 gal. |
| Phase | Triple |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 54 in. |
| Product Length | 84 in. |
| Product Weight | 1,000 lb. |
| Product Width | 36 in. |
| Pump Material | Cast iron |
| Pump Oil Capacity | 120 gal. |
| Tank Style | Horizontal |
| Warranty | 1 Year |
| Manufacturer Part Number | DCI523E120H-P |
